. 2019:23:101929.
doi: 10.1016/j.nicl.2019.101929. Epub 2019 Jul 4.

Cortical graph neural network for AD and MCI diagnosis and transfer learning across populations

Affiliations

Cortical graph neural network for AD and MCI diagnosis and transfer learning across populations

Chong-Yaw Wee et al. Neuroimage Clin. 2019.

Abstract

Combining machine learning with neuroimaging data has a great potential for early diagnosis of mild cognitive impairment (MCI) and Alzheimer's disease (AD). However, it remains unclear how well the classifiers built on one population can predict MCI/AD diagnosis of other populations. This study aimed to employ a spectral graph convolutional neural network (graph-CNN), that incorporated cortical thickness and geometry, to identify MCI and AD based on 3089 T1-weighted MRI data of the ADNI-2 cohort, and to evaluate its feasibility to predict AD in the ADNI-1 cohort (n = 3602) and an Asian cohort (n = 347). For the ADNI-2 cohort, the graph-CNN showed classification accuracy of controls (CN) vs. AD at 85.8% and early MCI (EMCI) vs. AD at 79.2%, followed by CN vs. late MCI (LMCI) (69.3%), LMCI vs. AD (65.2%), EMCI vs. LMCI (60.9%), and CN vs. EMCI (51.8%). We demonstrated the robustness of the graph-CNN among the existing deep learning approaches, such as Euclidean-domain-based multilayer network and 1D CNN on cortical thickness, and 2D and 3D CNNs on T1-weighted MR images of the ADNI-2 cohort. The graph-CNN also achieved the prediction on the conversion of EMCI to AD at 75% and that of LMCI to AD at 92%. The find-tuned graph-CNN further provided a promising CN vs. AD classification accuracy of 89.4% on the ADNI-1 cohort and >90% on the Asian cohort. Our study demonstrated the feasibility to transfer AD/MCI classifiers learned from one population to the other. Notably, incorporating cortical geometry in CNN has the potential to improve classification performance.

Keywords: Convolutional neural networks; Cortical thickness; Dementia classification; Graph; Transfer learning.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

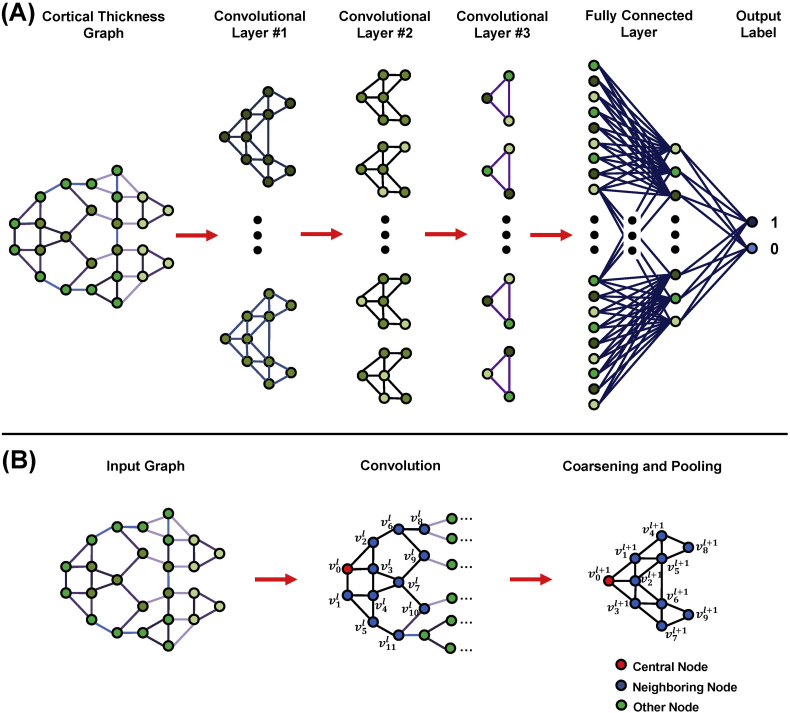

Graph-CNN Architecture. (A) The graph-CNN model used in this study. (B) The coarsening and pooling operations for an input graph in a convolutional layer.
Fig. 2
Fig. 2

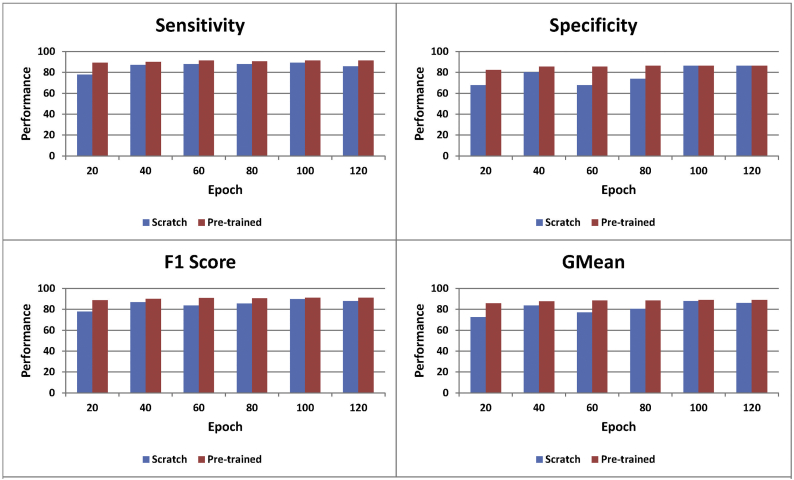

Classification performance of the graph-CNN model directly trained based on the ADNI-1 cohort (Scratch) and trained based on the ADNI-2 cohort (Pre-trained) with respect to the number of training epoch for the CN vs. AD classification.
Fig. 3
Fig. 3

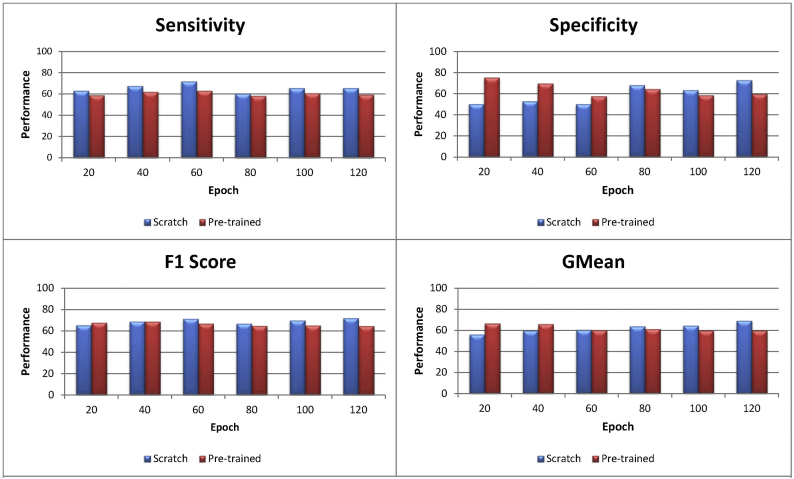

Classification performance of the graph-CNN model directly trained based on the ADNI-1 cohort (Scratch) and trained based on the ADNI-2 cohort (Pre-trained) with respect to the number of training epoch for the CN vs. MCI classification.
Fig. 4
Fig. 4

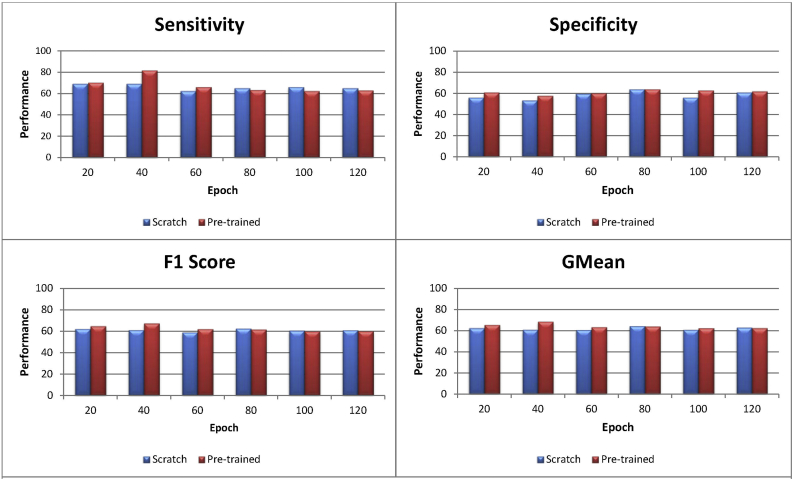

Classification performance of the graph-CNN model directly trained based on the ADNI-1 cohort (Scratch) and trained based on the ADNI-2 cohort (Pre-trained) with respect to the number of training epoch for the MCI vs. AD classification.
Fig. 5
Fig. 5

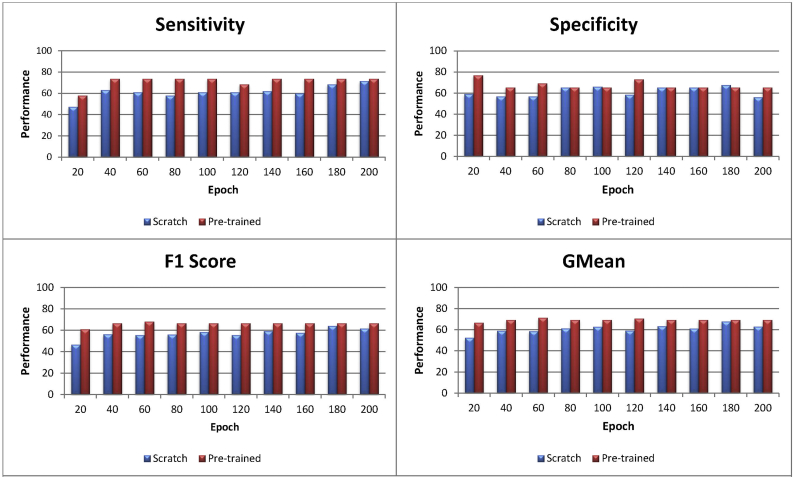

Classification performance of the graph-CNN model directly trained based on the Asian cohort (Scratch) and trained based on the ADNI-2 cohort (Pre-trained) with respect to the number of training epoch for the CN vs. Moderate MCI classification.
Fig. 6
Fig. 6
Top 10 cortical regions for most discriminating (A) AD and (B) LMCI from CN.

Similar articles

Cited by

References

    1. Aderghal K., Benois-Pineau J., Afdel K. Approach and Fusion on ADNI. Proceedings of the 2017 ACM on International Conference on Multimedia Retrieval. ACM; Bucharest, Romania: 2017. Classification of sMRI for Alzheimer’s disease diagnosis with CNN: single siamese networks with 2D+? pp. 494–498.
    1. Alzheimer’s Association 2015 Alzheimer’s disease facts and figures. Alzheimers Dement. 2015;11:332–384. - PubMed
    1. Barandela R., Sánchez J.S., Garcia V., Rangel E. Strategies for learning in class imbalance problems. Pattern Recogn. 2003;36:849–851.
    1. Basaia S., Agosta F., Wagner L., Canu E., Magnani G., Santangelo R., Filippi M., Alzheimer's Disease Neuroimaging, I Automated classification of Alzheimer's disease and mild cognitive impairment using a single MRI and deep neural networks. Neuroimage Clin. 2019;21 - PMC - PubMed
    1. Casanova R., Hsu F.-C., Sink K.M., Rapp S.R., Williamson J.D., Resnick S.M., Espeland M.A., for the Alzheimer’s Disease Neuroimaging Initiative Alzheimer’s Disease risk assessment using large-scale machine learning methods. PLoS ONE. 2013;8 - PMC - PubMed
