Tidal Flow Perfusion for the Artificial Placenta: A Paradigm Shift

Abstract

The modalities of vascular access for the extracorporeal artificial placenta (AP) have undergone many iterations over the past decade. We hypothesized that single lumen cannulation (SLC) of the jugular vein using tidal flow extracorporeal life (ECLS) support is a feasible alternative to venovenous (VV) umbilical-jugular cannulation and double lumen cannulation (DLC) and can maintain fetal circulation, stable hemodynamics, and adequate gas exchange for 24 hours. After in vitro evaluation of the tidal flow system, six preterm lambs at estimated gestational age 118-124 days (term 145 days) were delivered and underwent VV-ECLS. Three were supported using DLC and three with SLC utilizing tidal flow AP support. Hemodynamics, circuit flow, and gas exchange were monitored. Target fetal parameters were as follows: mean arterial pressure 40-60 mmHg, heart rate 140-240 beats per minute (bpm), SatO2% 60-80%, PaO2 25-50 mmHg, PaCO2 30-55 mmHg, oxygen delivery >5 ml O2/dl/kg/min, and circuit flow 100 ± 25 ml/kg/min. All animals survived 24 hours and maintained fetal circulation with stable hemodynamics and adequate gas exchange. Parameters of the tidal flow group were comparable with those of DLC. Single lumen jugular cannulation using tidal flow is a promising vascular access strategy for AP support. Successful miniaturization holds great potential for clinical translation to support extremely premature infants.

Figure 1:

In-vitro tidal flow ECLS system

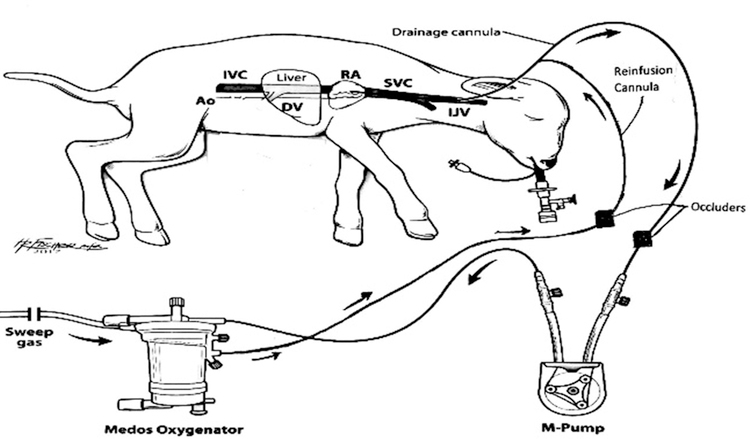

Figure 2:

In-vivo tidal flow schematic

Figure 3:

Sample plot of instantaneous flow and tidal volumes from in-vitro testing

Figure 4:

Turbulence in ¼ ‘‘ tubing connected to 5-Fr cannula

Figure 5:

Mean gas exchange parameters for DLC and Tidal Flow experiments

Figure 6:

Mean circuit flow for DLC and Tidal Flow experiments

Figure 7:

Mean hemodynamics for DLC and Tidal Flow experiments
