. 2019 Oct 10;20(1):490.
doi: 10.1186/s12859-019-3109-6.

Benchmark datasets of immune receptor-epitope structural complexes

Swapnil Mahajan  1 , Zhen Yan  2 , Martin Closter Jespersen  3 , Kamilla Kjærgaard Jensen  3 , Paolo Marcatili  3 , Morten Nielsen  3   4 , Alessandro Sette  2   5 , Bjoern Peters  2   5
Affiliations

Benchmark datasets of immune receptor-epitope structural complexes

Swapnil Mahajan et al. BMC Bioinformatics. .

Abstract

Background: The development of accurate epitope prediction tools is important in facilitating disease diagnostics, treatment and vaccine development. The advent of new approaches making use of antibody and TCR sequence information to predict receptor-specific epitopes have the potential to transform the epitope prediction field. Development and validation of these new generation of epitope prediction methods would benefit from regularly updated high-quality receptor-antigen complex datasets.

Results: To address the need for high-quality datasets to benchmark performance of these new generation of receptor-specific epitope prediction tools, a webserver called SCEptRe (Structural Complexes of Epitope-Receptor) was created. SCEptRe extracts weekly updated 3D complexes of antibody-antigen, TCR-pMHC and MHC-ligand from the Immune Epitope Database and clusters them based on antigen, receptor and epitope features to generate benchmark datasets. SCEptRe also provides annotated information such as CDR sequences and VDJ genes on the receptors. Users can generate custom datasets based by selecting thresholds for structural quality and clustering parameters (e.g. resolution, R-free factor, antigen or epitope sequence identity) based on their need.

Conclusions: SCEptRe provides weekly updated, user-customized comprehensive benchmark datasets of immune receptor-epitope structural complexes. These datasets can be used to develop and benchmark performance of receptor-specific epitope prediction tools in the future. SCEptRe is freely accessible at http://tools.iedb.org/sceptre .

Keywords: Antibody; Epitope; Epitope prediction; IEDB; MHC; Protein structures; TCR.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1
SCEptRe webserver: Users can customize various parameters to filter and cluster (a) antibody-antigen 3D complexes (b) TCR-pMHC complexes and (c) MHC-ligand complexes using the online resource. Recommended parameters are provided as default values in the webserver
Fig. 2
Fig. 2

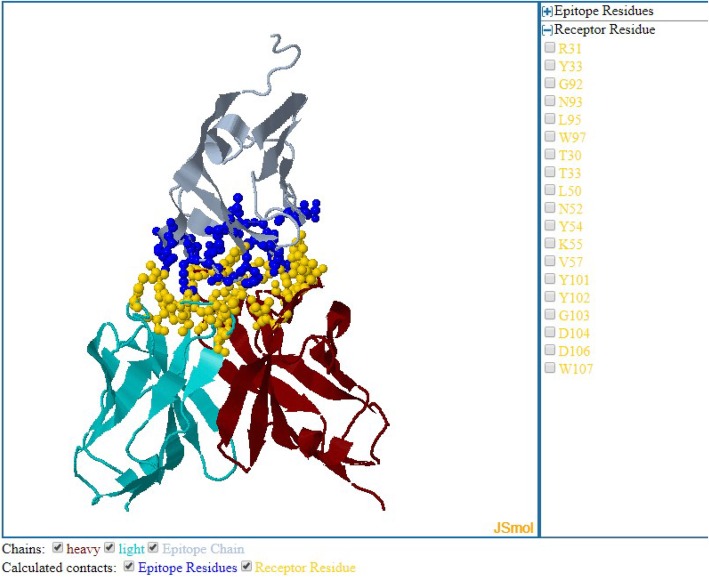

The IEDB JSmol viewer can be used to manually inspect receptor-antigen interactions. The blue colored spheres in the antibody-antigen complex (PDB ID: 1XIW) shown in the figure represent the epitope residues and yellow spheres are paratope residues in direct contact with each other. Individual interacting residues can be selected using the right-side panel
See this image and copyright information in PMC
