Hands-Free User Interface for AR/VR Devices Exploiting Wearer's Facial Gestures Using Unsupervised Deep Learning

Abstract

Developing a user interface (UI) suitable for headset environments is one of the challenges in the field of augmented reality (AR) technologies. This study proposes a hands-free UI for an AR headset that exploits facial gestures of the wearer to recognize user intentions. The facial gestures of the headset wearer are detected by a custom-designed sensor that detects skin deformation based on infrared diffusion characteristics of human skin. We designed a deep neural network classifier to determine the user's intended gestures from skin-deformation data, which are exploited as user input commands for the proposed UI system. The proposed classifier is composed of a spatiotemporal autoencoder and deep embedded clustering algorithm, trained in an unsupervised manner. The UI device was embedded in a commercial AR headset, and several experiments were performed on the online sensor data to verify operation of the device. We achieved implementation of a hands-free UI for an AR headset with average accuracy of 95.4% user-command recognition, as determined through tests by participants.

Keywords: augmented reality; deep embedded clustering; hands-free interface; spatiotemporal autoencoder.

Figure 1

Example of common interaction method with a user wearing an augmented reality (AR) headset: (a) hand-held controller and (b) button or touchpad.

Figure 2

Overall system diagram: The sensor module includes an IR LD and an IR camera. The IR camera takes images of IR diffusion patterns, and the LD emits IR light onto the skin.

Figure 3

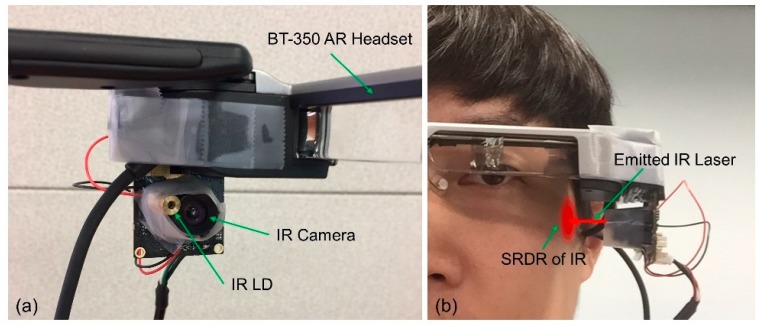

Implementation of the sensor module. (a) The sensor module includes a USB camera and NIR laser diode. We installed the module on the left side of the Epson BT-350 AR glasses. (b) A photograph of the headset on a user. The laser diode is aimed on the skin near the left cheek, which is deformed when a user makes winking gestures.

Figure 4

Images of IR laterally propagated through the skin: (a) IR SRDR image captured with no facial gesture and (b) captured IR SRDR image during a wink gesture by the user. The brightness of the white region in these images represents the intensity of the IR SRDR.

Figure 5

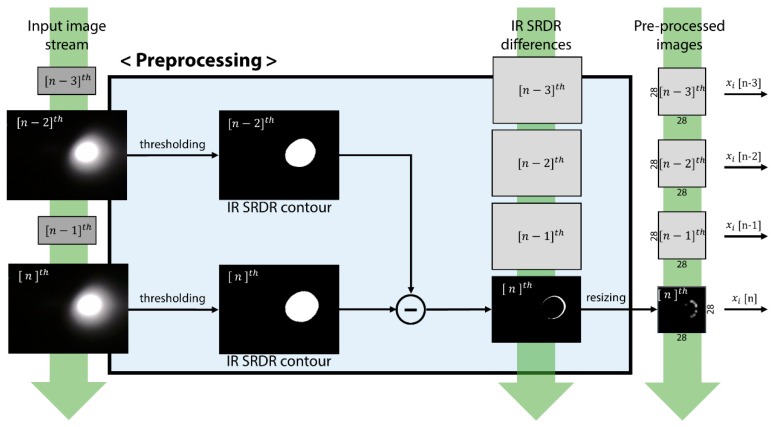

Preprocessing procedure of the clustering network: The preprocessing unit calculates the difference between two images. For the calculation, the unit thresholds the input images, conducts pixel-wise subtraction between the images, and resizes the images to 28 × 28 pixels to suit the clustering network input size.

Figure 6

Structure of the network extracting sensor data features: spatiotemporal autoencoder (STAE) consists of an encoder and a decoder. After the training of STAE, only the encoder part is utilized as the feature extractor.

Figure 7

Detailed configurations of the STAE used for feature extraction.

Figure 8

Proposed classifier network consisting of a STAE-based feature extractor and a deep embedded clustering (DEC)-based feature classifier.

Figure 9

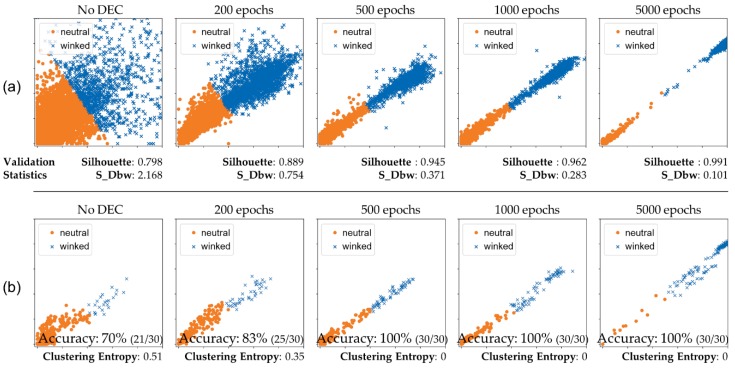

Clustering results by applying proposed DEC method: (a) clustering results for 81,758 training dataset images and (b) clustering results for real-time sensing from users (online validation).

Figure 10

Screenshots from the demonstration using a custom-made application. A user could pop balloons (a,b) or select buttons to change the background (c,d). A user could select an object by aiming (targeting) a red center dot on a specific object and then execute using a winking gesture.
