. 2020 Mar;63(3):659-667.
doi: 10.1007/s00125-019-05056-9. Epub 2019 Dec 17.

Geospatial mapping and data linkage uncovers variability in outcomes of foot disease according to multiple deprivation: a population cohort study of people with diabetes

Joanne E Hurst  1 , Ruth Barn  2 , Lesley Gibson  3 , Hamish Innes  2 , Sicco A Bus  4 , Brian Kennon  5 , David Wylie  6 , James Woodburn  2
Affiliations

Geospatial mapping and data linkage uncovers variability in outcomes of foot disease according to multiple deprivation: a population cohort study of people with diabetes

Joanne E Hurst et al. Diabetologia. 2020 Mar.

Abstract

Aims/hypothesis: Our aim was to investigate the geospatial distribution of diabetic foot ulceration (DFU), lower extremity amputation (LEA) and mortality rates in people with diabetes in small geographical areas with varying levels of multiple deprivation.

Methods: We undertook a population cohort study to extract the health records of 112,231 people with diabetes from the Scottish Care Information - Diabetes Collaboration (SCI-Diabetes) database. We linked this to health records to identify death, LEA and DFU events. These events were geospatially mapped using multiple deprivation maps for the geographical area of National Health Service (NHS) Greater Glasgow and Clyde. Tests of spatial autocorrelation and association were conducted to evaluate geographical variation and patterning, and the association between prevalence-adjusted outcome rates and multiple deprivation by quintile.

Results: Within our health board region, people with diabetes had crude prevalence-adjusted rates for DFU of 4.6% and for LEA of 1.3%, and an incidence rate of mortality preceded by either a DFU or LEA of 10.5 per 10,000 per year. Spatial autocorrelation identified statistically significant hot spot (high prevalence) and cold spot (low prevalence) clusters for all outcomes. Small-area maps effectively displayed near neighbour clustering across the health board geography. Disproportionately high numbers of hot spots within the most deprived quintile for DFU (p < 0.001), LEA (p < 0.001) and mortality (p < 0.001) rates were found. Conversely, a disproportionately higher number of cold spots was found within the least deprived quintile for LEA (p < 0.001).

Conclusions/interpretation: In people with diabetes, DFU, LEA and mortality rates are associated with multiple deprivation and form geographical neighbourhood clusters.

Keywords: Amputation; Diabetes; Foot; Geospatial mapping; Mortality; Social deprivation; Ulcer.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
DFU, LEA and mortality preceded by DFU or LEA, by SIMD quintile (Q1–Q5)

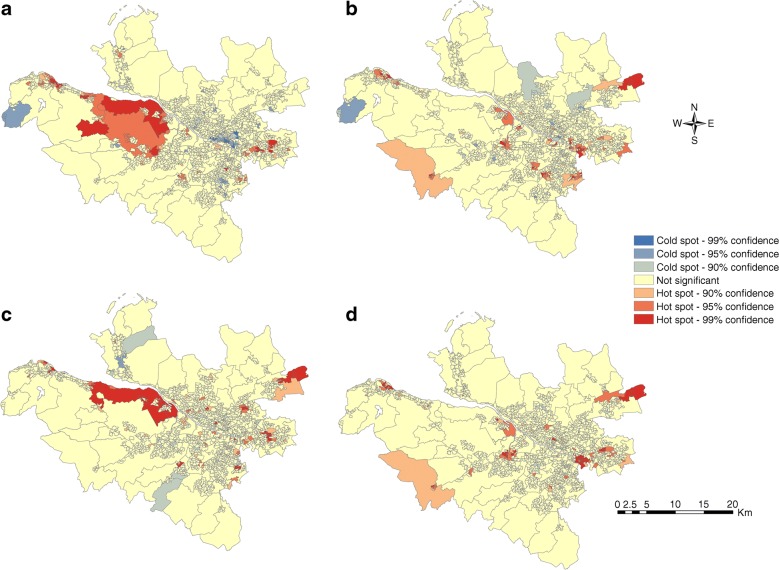

Fig. 2
Fig. 2
Geospatial maps identifying statistically significant hot and cold spots for (a) DFU, (b) LEA, (c) mortality preceded by DFU and (d) mortality preceded by LEA. In (a) and (c), the time period is from 2012 to 2016
Fig. 3
Fig. 3
Proportion of hot and cold spot clusters by SIMD quintile (Q1–Q5) for (a) DFU, (b) LEA, (c) mortality preceded by DFU and (d) mortality preceded by LEA
See this image and copyright information in PMC

References

    1. Armstrong DG, Boulton AJM, Bus SA. Diabetic foot ulcers and their recurrence. N Engl J Med. 2017;376(24):2367–2375. doi: 10.1056/NEJMra1615439. - DOI - PubMed
    1. Vadiveloo T, Jeffcoate W, Donnan PT, et al. Amputation-free survival in 17,353 people at high risk for foot ulceration in diabetes: a national observational study. Diabetologia. 2018;61(12):2590–2597. doi: 10.1007/s00125-018-4723-y. - DOI - PMC - PubMed
    1. Fortington LV, Geertzen JH, van Netten JJ, Postema K, Rommers GM, Dijkstra PU. Short and long term mortality rates after a lower limb amputation. Eur J Vasc Endovasc Surg. 2013;46(1):124–131. doi: 10.1016/j.ejvs.2013.03.024. - DOI - PubMed
    1. Gurney JK, Stanley J, York S, Rosenbaum D, Sarfati D. Risk of lower limb amputation in a national prevalent cohort of patients with diabetes. Diabetologia. 2018;61(3):626–635. doi: 10.1007/s00125-017-4488-8. - DOI - PubMed
    1. Bihan H, Laurent S, Sass C, et al. Association among individual deprivation, glycemic control, and diabetes complications: the EPICES score. Diabetes Care. 2005;28(11):2680–2685. doi: 10.2337/diacare.28.11.2680. - DOI - PubMed
