. 2019 Dec 18;14(1):231.
doi: 10.1186/s13014-019-1425-7.

Intrafractional 6D head movement increases with time of mask fixation during stereotactic intracranial RT-sessions

Julian Mangesius  1 , Thomas Seppi  1 , Rocco Weigel  1 , Christoph Reinhold Arnold  1 , Danijela Vasiljevic  2 , Georg Goebel  3 , Peter Lukas  1 , Ute Ganswindt  1 , Meinhard Nevinny-Stickel  1
Affiliations

Intrafractional 6D head movement increases with time of mask fixation during stereotactic intracranial RT-sessions

Julian Mangesius et al. Radiat Oncol. .

Abstract

Background: The present study investigates the intrafractional accuracy of a frameless thermoplastic mask used for head immobilization during stereotactic radiotherapy. Non-invasive masks cannot completely prohibit head movements. Previous studies attempted to estimate the magnitude of intrafractional inaccuracy by means of pre- and postfractional measurements only. However, this might not be sufficient to accurately map also intrafractional head movements.

Materials and methods: Intrafractional deviation of mask-fixed head positions was measured in five patients during a total of 94 fractions by means of close-meshed repeated ExacTrac measurements (every 1.4 min) conducted during the entire treatment session. A median of six (range: 4 to 11) measurements were recorded per fraction, delivering a dataset of 453 measurements.

Results: Random errors (SD) for the x, y and z axes were 0.27 mm, 0.29 mm and 0.29 mm, respectively. Median 3D deviation was 0.29 mm. Of all 3D intrafractional motions, 5.5 and 0.4% exceeded 1 mm and 2 mm, respectively. A moderate correlation between treatment duration and mean 3D displacement was determined (rs = 0.45). Mean 3D deviation increased from 0.21 mm (SD = 0.26 mm) in the first 2 min to a maximum of 0.53 mm (SD = 0.31 mm) after 10 min of treatment time.

Conclusion: Pre- and post-treatment measurement is not sufficient to adequately determine the range of intrafractional head motion. Thermoplastic masks provide both reliable interfractional and intrafractional immobilization for image-guided stereotactic hypofractionated radiotherapy. Greater positioning accuracy may be obtained by reducing treatment duration (< 6 min) and applying intrafractional correction.

Trial registration: Clinicaltrials.gov, NCT03896555, Registered 01 April 2019 - retrospectively registered.

Keywords: ExacTrac; Frameless stereotactic radiation therapy; Intrafractional accuracy; Thermoplastic mask head fixation; X-ray position monitoring.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

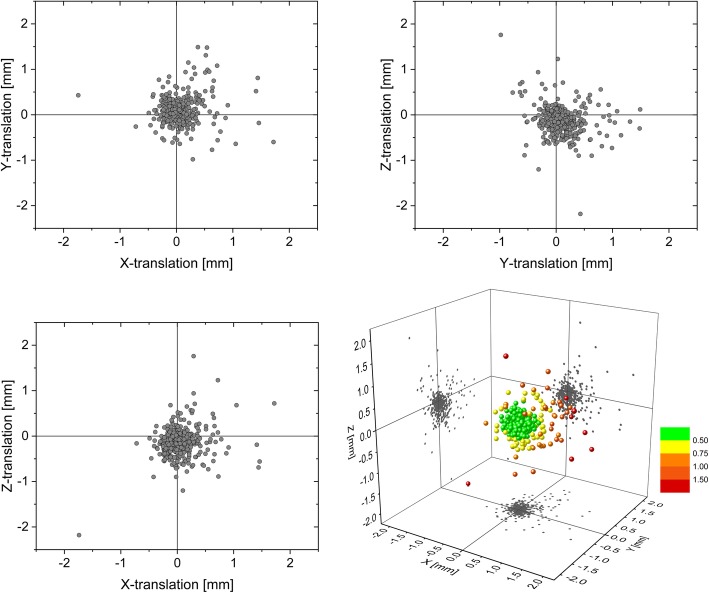

Fig. 1
Fig. 1
Scatterplots of intrafractional positioning deviations in the coronal plane (xy), axial plane (xz) and sagittal plane (yz) during thermoplastic mask fixation of the head

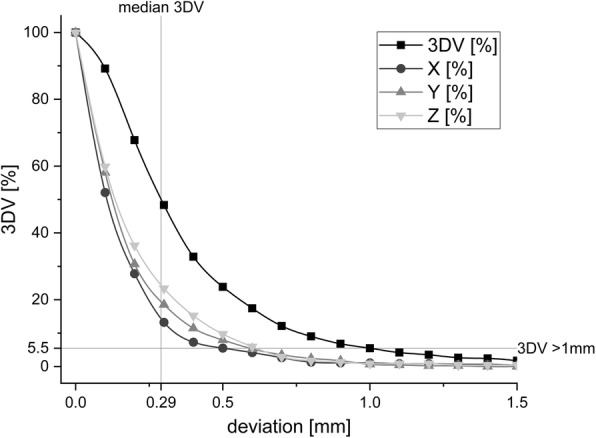

Fig. 2
Fig. 2
Histogram of cumulative intrafractional 3DV displacements and proportionate x (transversal), y (longitudinal) and z (sagittal) translations using a thermoplastic mask for head fixation

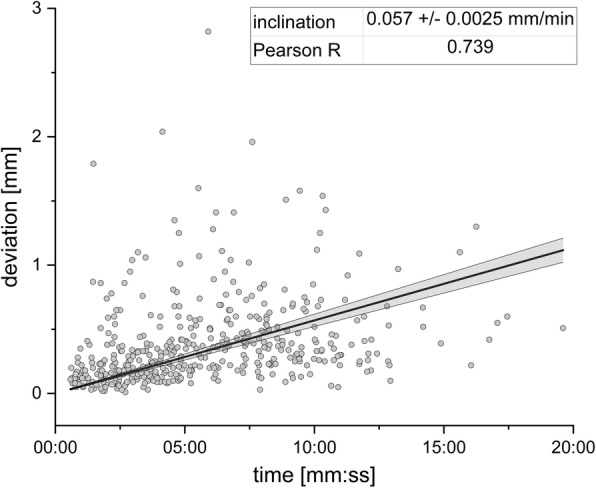

Fig. 3
Fig. 3
Correlation between head motion (3DV) and elapsed time of intrafractional head fixation using a thermoplastic mask

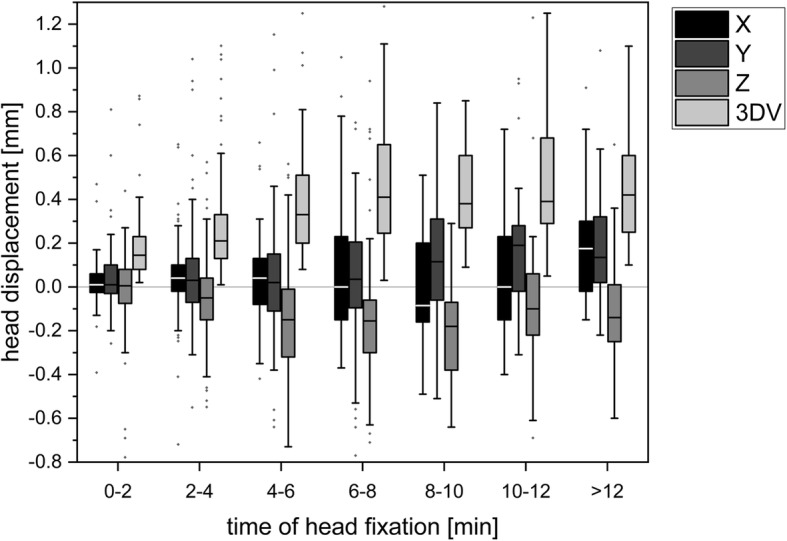

Fig. 4
Fig. 4
Head motion as a consequence of intrafractional treatment duration

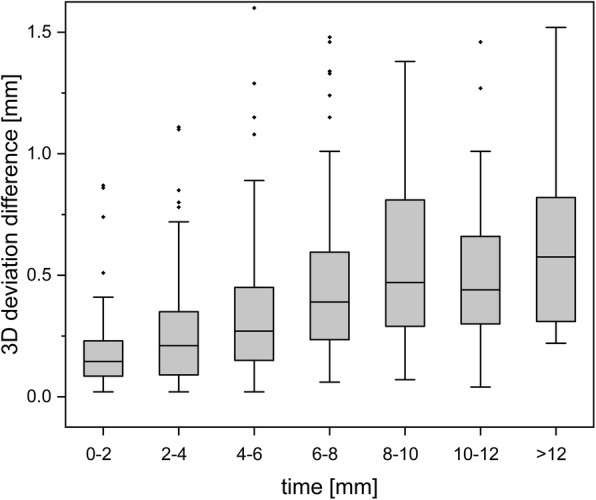

Fig. 5
Fig. 5
Continuous 3D head motion between individual consecutive ExacTrac measurements (Δ3DV) within a treatment session
