Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2019 Dec 16;12(24):4226.
doi: 10.3390/ma12244226.

Improving the Tribological Performance of MAO Coatings by Using a Stable Sol Electrolyte Mixed with Cellulose Additive

Wei Song  1   2 , Bailing Jiang  1 , Dongdong Ji  1
Affiliations

Improving the Tribological Performance of MAO Coatings by Using a Stable Sol Electrolyte Mixed with Cellulose Additive

Wei Song et al. Materials (Basel). .

Abstract

In this study, micro-arc oxidation (MAO) of aluminum 6061 alloy was carried out within a silicate base electrolyte containing 0.75 g/L of cellulose, and the tribological properties of the coating were investigated. The as-prepared coating was detected by Fourier Transform Infrared Spectroscopy (FTIR), X-ray diffraction (XRD), a scanning electron microscope (SEM) and an energy-dispersive spectrometer (EDS), respectively. The results suggested that cellulose filled in the microcracks and micropores, or it existed by cross-linking with Al3+. In addition, it was found that the cellulose had little effect on the coating hardness. However, the thickness and roughness of the coating were improved with the increase in cellulose concentration. Moreover, the ball-on-disk test showed that the friction coefficient, weight loss and wear rate of the MAO coating decreased with the increase in cellulose concentration. Further, the performances of the coatings obtained in the same electrolyte, under different preserved storage periods, were compared, revealing that the cellulose was uniformly dispersed in the electrolyte and improved the tribological properties of the MAO coating within 30 days.

Keywords: MAO (micro-arc oxidation) coating; cellulose; self-lubricating; stability; tribological performance.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The anti-friction mechanism of cellulose improves the micro-arc oxidation (MAO) coating.
Figure 2
Figure 2
Effects of cellulose content on the thickness and roughness of the MAO coating.
Figure 3

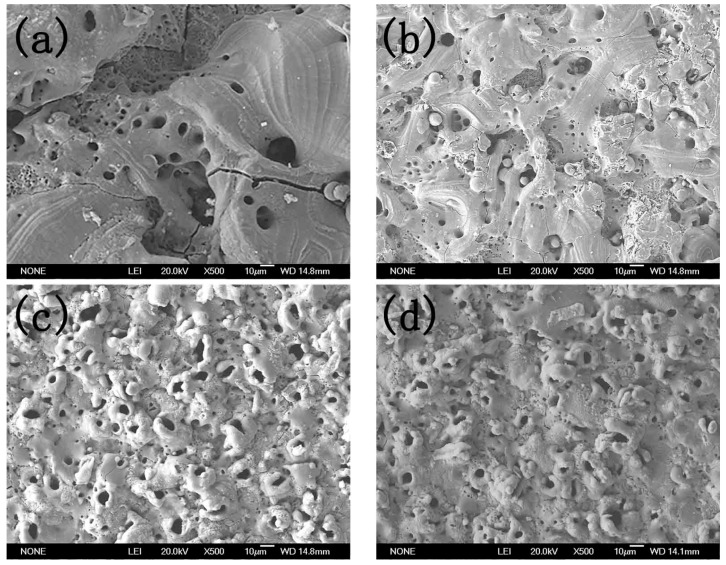

Figure 3
Microsurface of the MAO coating at cellulose concentrations of (a) 0 g/L, (b) 0.25 g/L, (c) 0.50 g/L, and (d) 0.75 g/L.
Figure 4

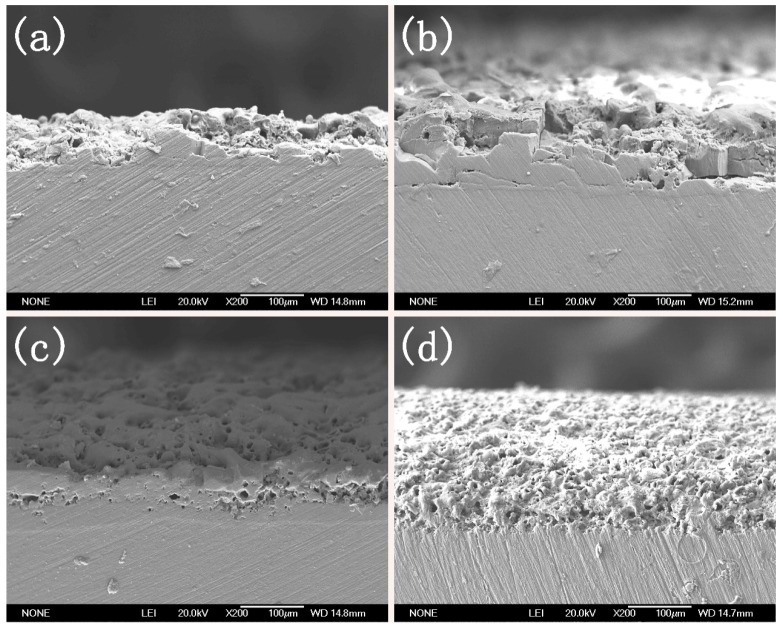

Figure 4
Cross-section of the MAO coating at cellulose concentrations of (a) 0 g/L, (b) 0.25 g/L, (c) 0.50 g/L, and (d) 0.75 g/L.
Figure 5
Figure 5
Micrograph illustrating the zone of energy-dispersive spectrometer (EDS) analysis.
Figure 6

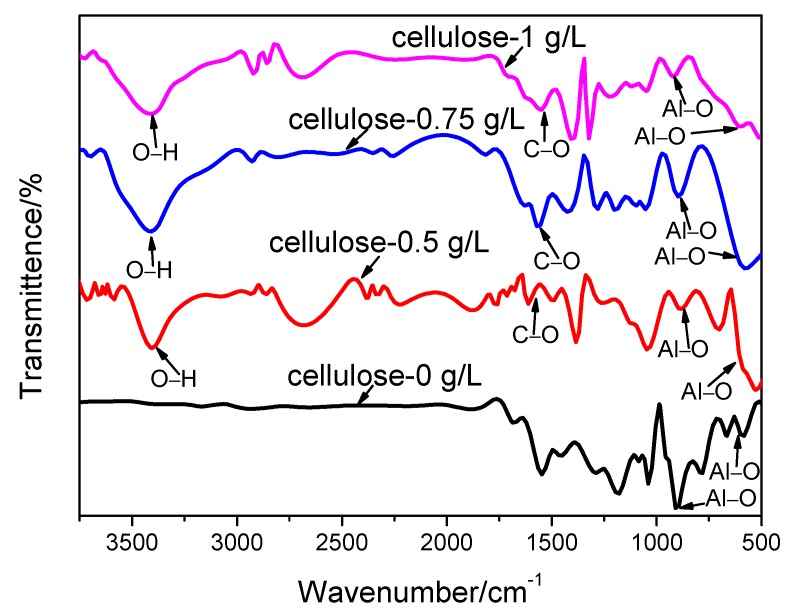

Figure 6
Fourier transform infrared (FT-IR) spectra of the MAO coatings obtained at different cellulose contents.
Figure 7
Figure 7
X-ray diffraction (XRD) spectra of the MAO coatings obtained at different cellulose contents.
Figure 8
Figure 8
Friction coefficients of the MAO coatings obtained at different cellulose contents.
Figure 9
Figure 9
Friction coefficients of the MAO coatings under different storage periods.
See this image and copyright information in PMC

References

    1. Jeon G.T.K., Kim Y., Moon J.H., Lee C., Kim W.J., Kim S.J. Effect of Al 6061 Alloy Compositions on Mechanical Properties of the Automotive Steering Knuckle Made by Novel Casting Process. Metals. 2018;8:857. doi: 10.3390/met8100857. - DOI
    1. Liu Z.Y., Xiong B.Q., Li X.W., Yan L.Z., Li Z.H., Zhang Y.A., Liu H.W. Deep drawing of 6A16 aluminum alloy for automobile body with various blank-holder forces. Rare Met. 2019;38:946–953. doi: 10.1007/s12598-018-1146-3. - DOI
    1. Kovalov D., Fekete B., Engelhardt G.R., Macdonal D.D. Prediction of corrosion fatigue crack growth rate in alloys. Part I: General corrosion fatigue model for aero-space aluminum alloys. Corros. Sci. 2018;141:22–29. doi: 10.1016/j.corsci.2018.06.034. - DOI
    1. Lenihan D., Ronan W., O’Donoghue P.E., Leen S.B. A review of the integrity of metallic vehicle armour to projectile attack. Proc. Inst. Mech. Eng. Part L-J. Mater. 2019;233:73–94. doi: 10.1177/1464420718759704. - DOI
    1. Benea L., Dumitrascu V. Enhancement in sustained friction and wear resistance of nanoporous aluminum oxide films obtained by controlled electrochemical oxidation process. Rsc. Adv. 2019;9:25056–25063. doi: 10.1039/C9RA05702A. - DOI - PMC - PubMed

LinkOut - more resources
