. 2020 Jan 1;11(1):57.
doi: 10.3390/mi11010057.

A Low Contact Impedance Medical Flexible Electrode Based on a Pyramid Array Micro-Structure

Song Wang  1 , Jin Yan  2 , Canlin Zhu  1 , Jialin Yao  2 , Qiusheng Liu  1 , Xing Yang  1
Affiliations

A Low Contact Impedance Medical Flexible Electrode Based on a Pyramid Array Micro-Structure

Song Wang et al. Micromachines (Basel). .

Abstract

Flexible electrodes are extensively used to detect signals in electrocardiography, electroencephalography, electro-ophthalmography, and electromyography, among others. These electrodes can also be used in wearable and implantable medical systems. The collected signals directly affect doctors' diagnoses of patient etiology and are closely associated with patients' life safety. Electrodes with low contact impedance can acquire good quality signals. Herein, we established a method of arraying pyramidal microstructures on polydimethylsiloxane (PDMS) substrates to increase the contact area of electrodes, and a parylene transitional layer is coated between PDMS substrates and metal membranes to enhance the bonding force, finally reducing the impedance of flexible electrodes. Experimental results demonstrated that the proposed methods were effective. The contact area of the fabricated electrode increased by 18.15% per unit area, and the contact impedance at 20 Hz to 1 kHz scanning frequency ranged from 23 to 8 kΩ, which was always smaller than that of a commercial electrode. Overall, these results indicated the excellent performance of the fabricated electrode given its low contact impedance and good biocompatibility. This study can also serve as a reference for further electrode research and application in wearable and implantable medical systems.

Keywords: flexible electrode; low contact impedance; polydimethylsiloxane (PDMS); pyramid array micro-structures.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Figures

Figure 1
Figure 1
Skin–electrode contact impedance equivalent circuit diagram.
Figure 2
Figure 2
The SEM photographs of pyramidal microstructure arrays.
Figure 3
Figure 3

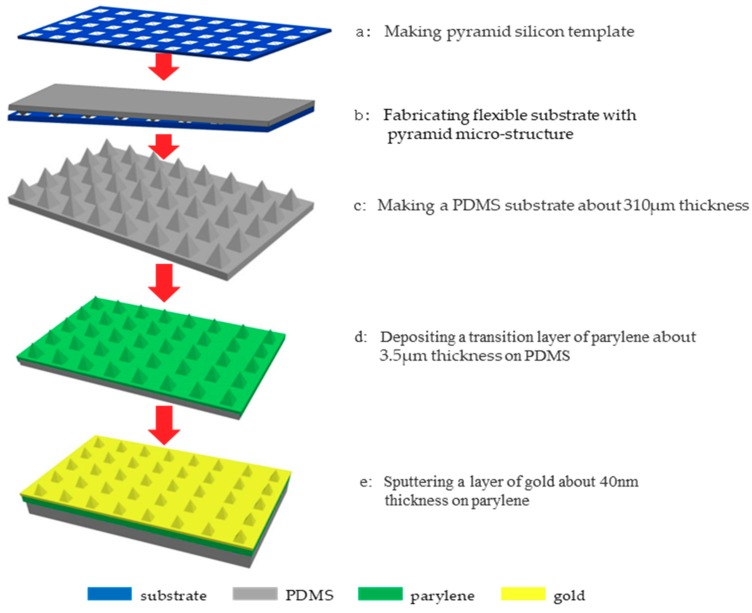

Flow chart of flexible electrode fabrication.
Figure 4
Figure 4
Scanning electron microscope (SEM) photographs of metal films on electrodes (a) Electrodes without parylene transition layer (b) Electrodes containing the parylene transition layer.
Figure 5
Figure 5
Comparison of skin contact impedance between the commercial electrodes and the flexible electrodes with pyramidal array micro-structure.
See this image and copyright information in PMC

References

    1. Chlaihawi A.A., Narakathu B.B., Emamian S., Bazuin B.J., Atashbar M.Z. Development of printed and flexible dry ECG electrodes. Sens. Bio-Sens. Res. 2018;20:9–15. doi: 10.1016/j.sbsr.2018.05.001. - DOI
    1. Xu S., Dai M., Xu C., Chen C., Tang M., Shi X., Dong X. Performance evaluation of five types of Ag/AgCl bio-electrodes for cerebral electrical impedance tomography. Ann. Biomed. Eng. 2011;39:2059–2067. doi: 10.1007/s10439-011-0302-9. - DOI - PubMed
    1. Yokus M.A., Jur J.S. Fabric-based wearable dry electrodes for bodycontact surface bio-potential recording. IEEE Trans. Biomed. Eng. 2015;63:423–430. doi: 10.1109/TBME.2015.2462312. - DOI - PubMed
    1. Myers A., Huang H., Zhu Y. Wearable silver nanowire dry electrodes for electro-physiological sensing. Roy. Soc. Chem. 2015;5:11627–11632.
    1. Zhou Y., Ding X., Zhang J., Duan Y., Hu J., Yang X. Fabrication of conductive fabric as textile electrode for ECG monitoring. Fibers Polym. 2014;15:260–2264. doi: 10.1007/s12221-014-2260-y. - DOI
