Comparative Study
. 2020 May;34(5):e23194.
doi: 10.1002/jcla.23194. Epub 2020 Jan 24.

Comparison of "Lumipulse anti-Treponema pallidum" and "Architect Syphilis TP" and further examination

Jianbo Liang  1 , Jianxin Wan  1 , Chumei Huang  1 , Gaorong Cai  1 , Laisheng Li  1 , Min Liu  1
Affiliations
Comparative Study

Comparison of "Lumipulse anti-Treponema pallidum" and "Architect Syphilis TP" and further examination

Jianbo Liang et al. J Clin Lab Anal. 2020 May.

Abstract

Background: Syphilis is a sexually transmitted disease caused by Treponema pallidum (TP) infection. In recent years, diagnostic reagents with fully automated immunoassay instruments have become mainstream. However, these positive screening tests with high sensitivity, which are performed with full automation, need confirmation by Treponema pallidum particle agglutination (TPPA) to be judged as positive.

Methods: We evaluated the diagnostic performance of Lumipulse G TP-N assay (Lumi-TP, Fujirebio Inc) in 223 preselected TP-positive samples and 1041 TP-negative samples, compared it with that of the TP gold standard test (TPPA) and Architect Syphilis TP test (Archi-TP, Abbott).

Results: The concordance rates for the results for the positive and negative samples between Lumi-TP and TPPA were 100%. On the other hand, the rates for the results between Archi-TP and TPPA were 100% for positive samples and 99.14% (1032/1041) for negative samples. Correlation tendency and rate between Archi-TP and Lumi-TP were 2.549 and 0.841 in positive specimens up to 160 detected values in Lumi-TP. However, the detection value of Archi-TP reached a plateau when it exceeded about 40. Furthermore, according to the comparison of each value obtained from Archi-TP and Lumi-TP with the strength of the staining of each line in the immune-chromatography assay kit, ESPLINE TP (Fujirebio Inc) for TP major antigens, Tp15-17 and TpN47, it was found that Lumi-TP obtained higher values than Archi-TP, particularly for TpN 47.

Conclusions: Lumi-TP has high specificity and is useful not only for screening but also for determining the amount of anti-TP antibodies.

Keywords: Treponema pallidum; anti-Treponema pallidum; syphilis.

PubMed Disclaimer

Figures

Figure 1
Figure 1

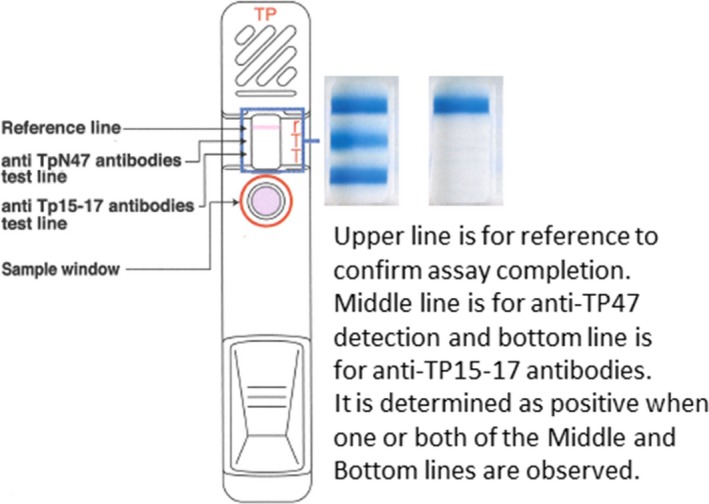

ESPLINE assay principle and result interpretation
Figure 2
Figure 2
The flowchart of the tests used for the anti‐TP assay kits
Figure 3
Figure 3

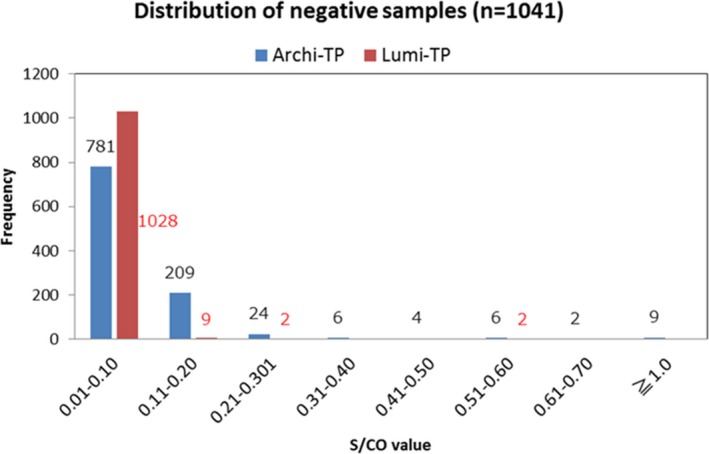

Distribution of negative samples according to Archi‐TP and Lumi‐TP
Figure 4
Figure 4
Correlation of Archi‐TP and Lumi‐TP results for each value range. A, For value range of 100 or less by Lumi‐TP, (B) for all specimens
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Chen ZQ, Zhang GC, Gong XD, et al. Syphilis in China: results of a national surveillance programme. Lancet. 2007;369:132‐138. - PMC - PubMed
    1. Wellinghausen N, Dietenberger H. Evaluation of two automated chemiluminescence immunoassays, the LIAISON Treponema screen and the ARCHITECT Syphilis TP, and the Treponema pallidum particle agglutination test for laboratory diagnosis of syphilis. Clin Chem Lab Med. 2011;49:1375‐1377. - PubMed
    1. Malm K, Andersson S, Fredlund H, et al. Analytical evaluation of nine serological assays for diagnosis of syphilis. J Eur Acad Dermatol Venereol. 2015;29:2369‐2376. - PubMed
    1. Zhiyan L, Meiling W, Ping L, Jinhua D, Zhenlin Y, Zhenru F. Consistency between Treponema pallidum particle agglutination assay and architect chemiluminescent microparticle immunoassay and characterization of inconsistent samples. J Clin Lab Anal. 2015;29:281‐284. - PMC - PubMed
    1. Sambri V, Marangoni A, Eyer C, et al. Western immunoblotting with five Treponema pallidum recombinant antigens for serologic diagnosis of syphilis. Clin Diagn Lab Immunol. 2001;8:534‐539. - PMC - PubMed
