. 2019 Sep 12:18:166-170.
doi: 10.1016/j.jor.2019.09.014. eCollection 2020 Mar-Apr.

Hallux valgus (HV): A multi-approach investigation analysis

V Filardi  1
Affiliations

Hallux valgus (HV): A multi-approach investigation analysis

V Filardi. J Orthop. .

Erratum in

Abstract

Objective: this study aims to develop a 3D FE model of the foot suffering from valgus hallux in order to investigate the plantar pressure distributions between bony structures.

Methods: in a first phase a baropodometric analysis was performed, successively a FE analysis was performed comparing results and obtaining information on the stress shielding.

Results: the valgus hallux deforms the correct spreading of the stress inside the bony structures causing an overloading of pressure located on the hallux and downloading the other toes.

Conclusion: This comparative study can furnish important indications about the distribution of the stress patterns on the foot.

Keywords: CAD; FE analysis; Foot model.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
The Valgus Hallux syndrome,pathological causes.
Fig. 2
Fig. 2

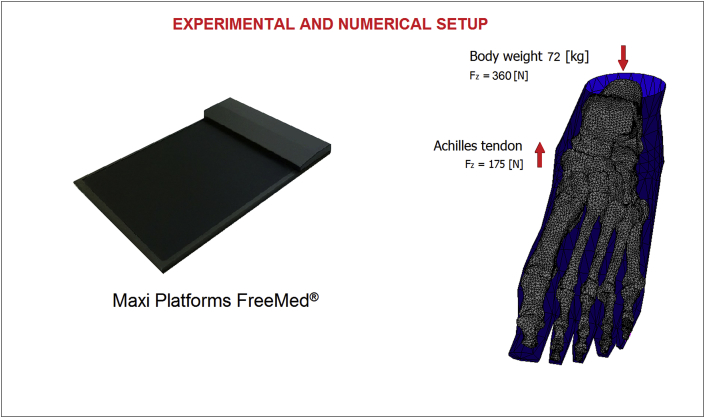

Baropodometric measurement system and FE numerical model.
Fig. 3
Fig. 3

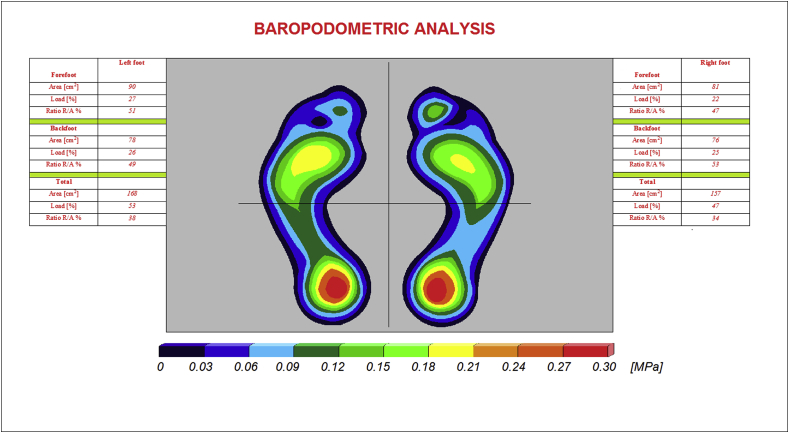

Countour map of plantar pressures obtained by baropodometric analysis.
Fig. 4
Fig. 4

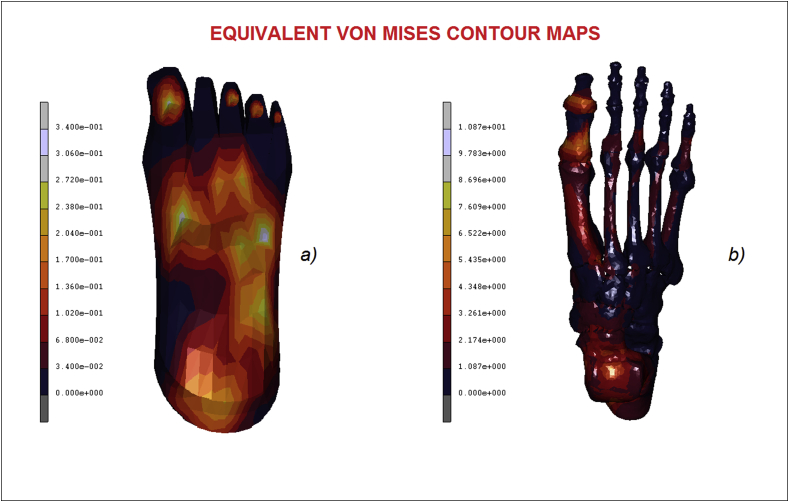

Eq. Von Mises stresses measured on the skin a)and on the bony parts b).
Fig. 5
Fig. 5

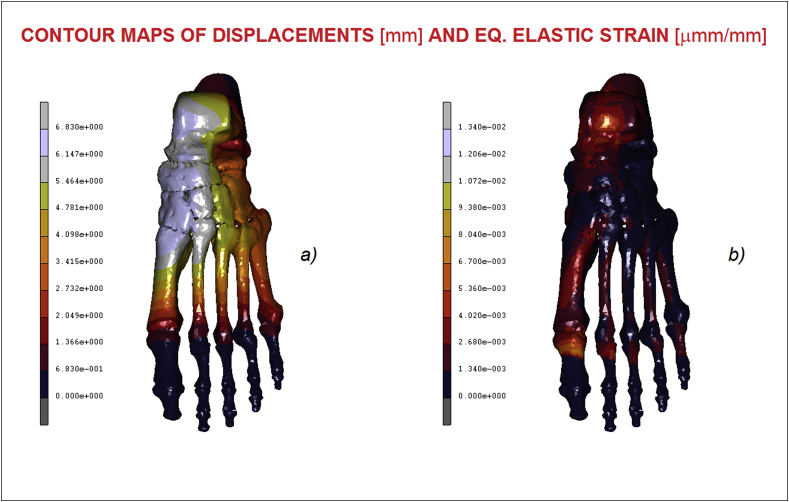

Displacements a)and Eq. Elastic strain b) localized on the bony part.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Lam S.L., Hodgson A.R. A comparison of foot forms among the non-shoe and shoewearing Chinese population. J Bone Jt. Surg. 1958;40-A:1058–1062. - PubMed
    1. Kato S., Watanabe S. The etiology of hallux valgus in Japan. Clin Orthop. 1981;157:78–81. - PubMed
    1. Glynn M.K., Dunlop J.B., Fitzpatrick D. The Mitchell distal metatarsal osteotomy for hallux valgus. J Bone Jt. Surg. 1980;62-B:188–191. - PubMed
    1. Mann R.A., Coughlin M.J. Adult hallux valgus. In: Coughlin M.J., Mann R.A., editors. seventh ed. vol. 1. Mosby Inc.; St. Louis: 1999. pp. 150–269. (Surgery of the Foot and Ankle).
    1. Coughlin M.J., Shurnas P.S. Hallux valgus in men: part II: first ray mobility after bunionectomy and factors associated with hallux valgus deformity. Foot Ankle Int. 2003;24:73–78. - PubMed
