AGAP2: Modulating TGFβ1-Signaling in the Regulation of Liver Fibrosis

Abstract

AGAP2 (Arf GAP with GTP-binding protein-like domain, Ankyrin repeat and PH domain 2) isoform 2 is a protein that belongs to the Arf GAP (GTPase activating protein) protein family. These proteins act as GTPase switches for Arfs, which are Ras superfamily members, being therefore involved in signaling regulation. Arf GAP proteins have been shown to participate in several cellular functions including membrane trafficking and actin cytoskeleton remodeling. AGAP2 is a multi-tasking Arf GAP that also presents GTPase activity and is involved in several signaling pathways related with apoptosis, cell survival, migration, and receptor trafficking. The increase of AGAP2 levels is associated with pathologies as cancer and fibrosis. Transforming growth factor beta-1 (TGF-β1) is the most potent pro-fibrotic cytokine identified to date, currently accepted as the principal mediator of the fibrotic response in liver, lung, and kidney. Recent literature has described that the expression of AGAP2 modulates some of the pro-fibrotic effects described for TGF-β1 in the liver. The present review is focused on the interrelated molecular effects between AGAP2 and TGFβ1 expression, presenting AGAP2 as a new player in the signaling of this pro-fibrotic cytokine, thereby contributing to the progression of hepatic fibrosis.

Keywords: AGAP2; Arf GAP; TGFβ1; liver fibrosis; receptor recycling.

Figure 1

Arf (ADP-ribosylation factor) GTPase-activating proteins (GAPs) family. Human Arf GAP proteins are encoded by at least 31 genes and many of them have multiple splice variants. Structural and phylogenetic analyses have allowed to classify human Arf GAP domain-containing proteins into ten subfamilies termed with a consensus nomenclature. The present figure classifies Arf GAP based on the structural position of the Arf GAP domain. The first group presents the zinc-finger motif (GAP domain) located in the N-terminus of the protein and is formed by ArfGAP1, ArfGAP2, ADAP (Arf GAP with dual pleckstrin homology (PH) domain), SMAP (Amall Arf GAP), AGFG (Arf GAP with XXFG repeats), and GIT (G protein receptor kinase interacting Arf GAP) subfamily members. The second group comprises 21 out of 31 Arf GAP encoding genes and corresponds to Arf GAP proteins containing a tandem of PH domains, Arf GAP and Ankyrin (ANK) repeat domains. It is formed by ASAP (Arf GAP with Src homology 3 domain, ANK repeat and PH domain), ACAP (Arf GAP with coiled-coil, ANK repeat and PH domains), AGAP (Arf GAP with GTPase domain, ANK repeats and PH domain), and ARAP (Arf GAP with Rho GAP domain, ANK repeats and PH domain) subfamily members [13,14].

Figure 2

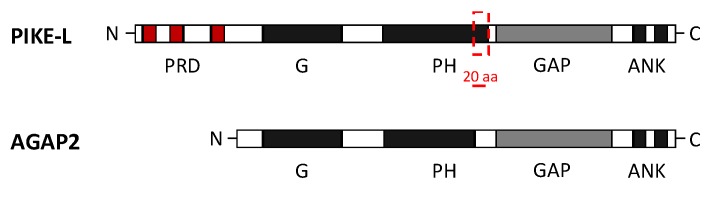

Domain composition of AGAP2 (Arf GAP with GTP-binding protein-like domain, Ankyrin repeat and PH domain 2) and PI 3-Kinase Enhancer longer isoform L (PIKE-L). Both isoforms share an identical structure at the C-terminal but differ at the N-terminal, where they present a GTPase domain (G domain) but AGAP2 lacks the proline-rich domain (PRD). AGAP2 also contains a pleckstrin homology (PH) domain 20 residues shorter than in PIKE-L isoform. The C-terminal structure of both isoforms includes the GTPase-activating proteins (GAP domain) and two ankyrin (ANK) repeats [20].

Figure 3

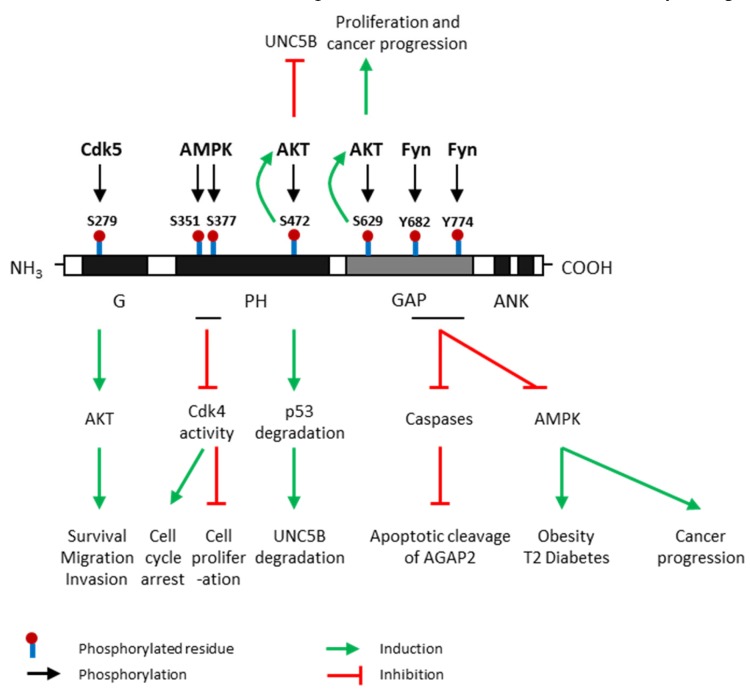

Post-translational modifications of AGAP2 and their effects. AGAP2 (Arf GAP with GTP-binding protein-like domain, Ankyrin repeat and pleckstrin homology (PH) domain 2) expression and activity are regulated by phosphorylation. Cdk5 (cyclin dependent kinase 5) phosphorylates AGAP2 at Serine (S)-279 which is located in its G domain [26]; AMPK (AMP-activated protein kinase), the main energy sensor, phosphorylates AGAP2 on Ser-351 and Ser-377 which are located on its PH domain, under cellular energy stress conditions [25]; AKT (protein kinase B) phosphorylates AGAP2 at S472 [27] and S629 [28] which are in PH and GAP domains, respectively; Fyn phosphorylates AGAP2 at tyrosine (Y) 682 and Y774 in GAP domain [29]. Green arrows indicate process induced by AGAP2 phosphorylated in a precise residue. Red arrows indicate process inhibited by AGAP2 phosphorylated in a precise residue. UNC5B: Uncoordinated-5 netrin receptor B.

Figure 4

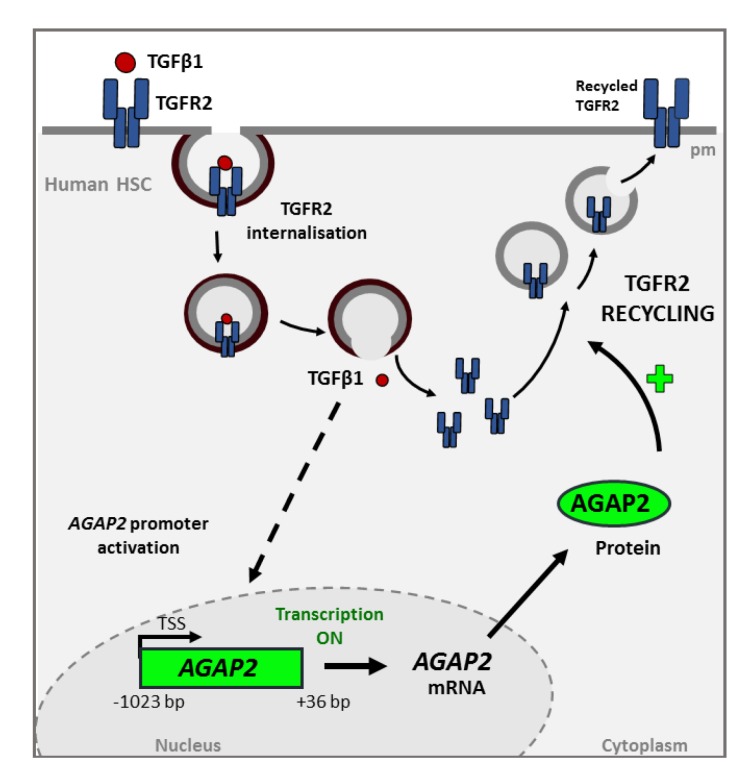

Transforming growth factor beta-1 (TGF-β1)-induced AGAP2 is involved in TGFR2 (TGF Receptor 2) recycling in HSC treated with TGFβ1. The interaction between the cytokine and its TGFR2 receptor triggers the internalization of the complex. This process promotes some signaling cascade whose molecular mechanism have not yet been fully characterized (represented by the dashed line), that induces the transcription and translation of AGAP2 (Arf GAP with GTP-binding protein-like domain, Ankyrin repeat and pleckstrin homology domain 2). AGAP2 is involved in the recycling of the TGFR2 to the membrane and therefore in TGFβ1 signaling. This effect could be either due to a direct interaction between AGAP2 and the receptor or be mediated by the interaction of AGAP2 with other proteins involved in TGFR2 recycling.

Figure 5

Transforming growth factor beta (TGFβ)-induced pro-fibrotic effects modulated by AGAP2 (Arf GAP with GTP-binding protein-like domain, Ankyrin repeat and pleckstrin homology domain 2) in activated hepatic stellate cells, (HSC) cells.
