. 2017 May 12;2(5):964-968.
doi: 10.1021/acsenergylett.7b00167. Epub 2017 Apr 3.

Protection and Reactivation of the [NiFeSe] Hydrogenase from Desulfovibrio vulgaris Hildenborough under Oxidative Conditions

Adrian Ruff  1 , Julian Szczesny  1 , Sónia Zacarias  2 , Inês A C Pereira  2 , Nicolas Plumeré  3 , Wolfgang Schuhmann  1
Affiliations

Protection and Reactivation of the [NiFeSe] Hydrogenase from Desulfovibrio vulgaris Hildenborough under Oxidative Conditions

Adrian Ruff et al. ACS Energy Lett. .

Abstract

We report on the fabrication of bioanodes for H2 oxidation based on [NiFeSe] hydrogenase. The enzyme was electrically wired by means of a specifically designed low-potential viologen-modified polymer, which delivers benchmark H2 oxidizing currents even under deactivating conditions owing to efficient protection against O2 combined with a viologen-induced reactivation of the O2 inhibited enzyme. Moreover, the viologen-modified polymer allows for electrochemical co-deposition of polymer and biocatalyst and, by this, for control of the film thickness. Protection and reactivation of the enzyme was demonstrated in thick and thin reaction layers.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Scheme 1
Scheme 1. Synthesis and Electrochemical Induced Cross-linking Process of the Viologen-Modified Redox Hydrogel P(N3MA-BA-GMA)-vio
(a) The polymer backbone P(N3MA-BA-GMA) was synthesized in a free radical polymerization reaction with the co-monomers N3MA (azidopropyl methacrylate), BA (butyl acrylate), and GMA (glycidyl methacrylate); Mn(P(N3MA-BA-GMA)) = 15 kDa, PDI = 2.1 (determined from size exclusion chromatography); composition determined by NMR: k = 71 mol %, l = 20 and 9 mol %. (b) Proposed mechanism for the electrochemical-induced cross-linking process.
Figure 1
Figure 1
Cyclic voltammograms (a) and chronoamperogram (b) of a thick P(N3MA-BA-GMA)-vio/DvH-[NiFeSe] film drop cast onto a GC electrode under H2/O2/Ar mixtures; working electrolyte: PB (0.1 M, pH 7.4); nominal polymer loading: 69 μg cm–2; nominal enzyme loading: 21 μg cm–2. (a) Scan rate: 10 mV s–1; black line: 100% argon bubbling through the cell; red solid line: 100% H2; red dashed line: 5% H2/95% Ar. (b) Applied potential: + 160 mV vs SHE.
Figure 2
Figure 2

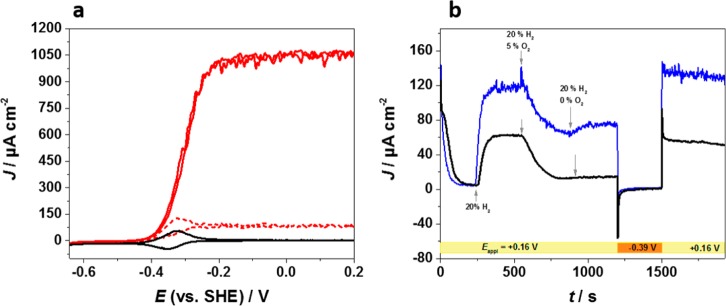

Cyclic voltammograms (a) and chronoamperogram (b) of thin P(N3MA-BA-GMA)/DvH-[NiFeSe] films prepared by electrochemical induced deposition applying the pulse sequence n(+1.71 V/0.2 s; +0.21 V/2 s), with n = number of repetitions; working electrolyte: PB (0.1 M, pH 7.4). (a) n = 20; scan rate: 10 mV s–1; black line: 100% Ar; red solid line: 100% H2; red dashed line: 5% H2/95% Ar. (b) Applied potential: +0.16 or −0.39 V vs SHE (see graph); H2/O2 ratios were adjusted by varying the argon content in the gas flow; black trace: n = 2; blue trace: n = 10.
See this image and copyright information in PMC

References

    1. Wombwell C.; Caputo C. A.; Reisner E. NiFeSe-hydrogenase chemistry. Acc. Chem. Res. 2015, 48, 2858–2865. 10.1021/acs.accounts.5b00326. - DOI - PubMed
    1. Parkin A.; Goldet G.; Cavazza C.; Fontecilla-Camps J. C.; Armstrong F. A. The difference a Se makes? Oxygen-tolerant hydrogen production by the NiFeSe-hydrogenase from Desulfomicrobium baculatum. J. Am. Chem. Soc. 2008, 130, 13410–13416. 10.1021/ja803657d. - DOI - PubMed
    1. Reisner E.; Fontecilla-Camps J. C.; Armstrong F. A. Catalytic electrochemistry of a NiFeSe-hydrogenase on TiO2 and demonstration of its suitability for visible-light driven H2 production. Chem. Commun. 2009, 550–552. 10.1039/B817371K. - DOI - PubMed
    1. Reisner E.; Powell D. J.; Cavazza C.; Fontecilla-Camps J. C.; Armstrong F. A. Visible light-driven H2 production by hydrogenases attached to dye-sensitized TiO2 nanoparticles. J. Am. Chem. Soc. 2009, 131, 18457–18466. 10.1021/ja907923r. - DOI - PubMed
    1. Sakai T.; Mersch D.; Reisner E. Photocatalytic hydrogen evolution with a hydrogenase in a mediator-free system under high levels of oxygen. Angew. Chem., Int. Ed. 2013, 52, 12313–12316. 10.1002/anie.201306214. - DOI - PMC - PubMed
