Development of an artificial intelligence-based assessment model for prediction of embryo viability using static images captured by optical light microscopy during IVF

Abstract

Study question: Can an artificial intelligence (AI)-based model predict human embryo viability using images captured by optical light microscopy?

Summary answer: We have combined computer vision image processing methods and deep learning techniques to create the non-invasive Life Whisperer AI model for robust prediction of embryo viability, as measured by clinical pregnancy outcome, using single static images of Day 5 blastocysts obtained from standard optical light microscope systems.

What is known already: Embryo selection following IVF is a critical factor in determining the success of ensuing pregnancy. Traditional morphokinetic grading by trained embryologists can be subjective and variable, and other complementary techniques, such as time-lapse imaging, require costly equipment and have not reliably demonstrated predictive ability for the endpoint of clinical pregnancy. AI methods are being investigated as a promising means for improving embryo selection and predicting implantation and pregnancy outcomes.

Study design, size, duration: These studies involved analysis of retrospectively collected data including standard optical light microscope images and clinical outcomes of 8886 embryos from 11 different IVF clinics, across three different countries, between 2011 and 2018.

Participants/materials, setting, methods: The AI-based model was trained using static two-dimensional optical light microscope images with known clinical pregnancy outcome as measured by fetal heartbeat to provide a confidence score for prediction of pregnancy. Predictive accuracy was determined by evaluating sensitivity, specificity and overall weighted accuracy, and was visualized using histograms of the distributions of predictions. Comparison to embryologists' predictive accuracy was performed using a binary classification approach and a 5-band ranking comparison.

Main results and the role of chance: The Life Whisperer AI model showed a sensitivity of 70.1% for viable embryos while maintaining a specificity of 60.5% for non-viable embryos across three independent blind test sets from different clinics. The weighted overall accuracy in each blind test set was >63%, with a combined accuracy of 64.3% across both viable and non-viable embryos, demonstrating model robustness and generalizability beyond the result expected from chance. Distributions of predictions showed clear separation of correctly and incorrectly classified embryos. Binary comparison of viable/non-viable embryo classification demonstrated an improvement of 24.7% over embryologists' accuracy (P = 0.047, n = 2, Student's t test), and 5-band ranking comparison demonstrated an improvement of 42.0% over embryologists (P = 0.028, n = 2, Student's t test).

Limitations, reasons for caution: The AI model developed here is limited to analysis of Day 5 embryos; therefore, further evaluation or modification of the model is needed to incorporate information from different time points. The endpoint described is clinical pregnancy as measured by fetal heartbeat, and this does not indicate the probability of live birth. The current investigation was performed with retrospectively collected data, and hence it will be of importance to collect data prospectively to assess real-world use of the AI model.

Wider implications of the findings: These studies demonstrated an improved predictive ability for evaluation of embryo viability when compared with embryologists' traditional morphokinetic grading methods. The superior accuracy of the Life Whisperer AI model could lead to improved pregnancy success rates in IVF when used in a clinical setting. It could also potentially assist in standardization of embryo selection methods across multiple clinical environments, while eliminating the need for complex time-lapse imaging equipment. Finally, the cloud-based software application used to apply the Life Whisperer AI model in clinical practice makes it broadly applicable and globally scalable to IVF clinics worldwide.

Study funding/competing interest(s): Life Whisperer Diagnostics, Pty Ltd is a wholly owned subsidiary of the parent company, Presagen Pty Ltd. Funding for the study was provided by Presagen with grant funding received from the South Australian Government: Research, Commercialisation and Startup Fund (RCSF). 'In kind' support and embryology expertise to guide algorithm development were provided by Ovation Fertility. J.M.M.H., D.P. and M.P. are co-owners of Life Whisperer and Presagen. Presagen has filed a provisional patent for the technology described in this manuscript (52985P pending). A.P.M. owns stock in Life Whisperer, and S.M.D., A.J., T.N. and A.P.M. are employees of Life Whisperer.

Keywords: IVF/ICSI outcome; artificial intelligence; assisted reproduction; embryo quality; machine learning.

Figure 1

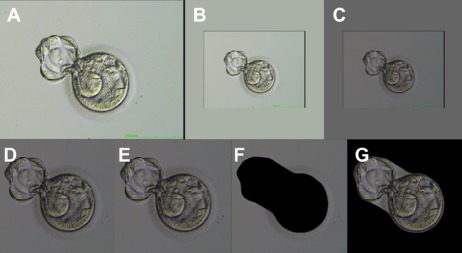

Sample image of human embryo with pre-processing steps applied in order. The six main pre-processing steps, prior to transforming the image into a tensor format, are illustrated. (A) The input image is stripped of the alpha channel. (B) The image is padded to square dimensions. (C) The color balance and brightness levels are normalized. (D) The image is cropped to remove excess background space such that the embryo is centered. (E) The image is scaled in resolution for the appropriate neural network. (F–G) Segmentation is applied to the image as a pre-processing step for portion of the neural networks. An image with the inner cell mass (ICM) and intra-zona cavity (IC) masked is shown in (F) and an image with the ICM/IC exposed is shown in (G). Images were taken at 200x magnification.

Figure 2

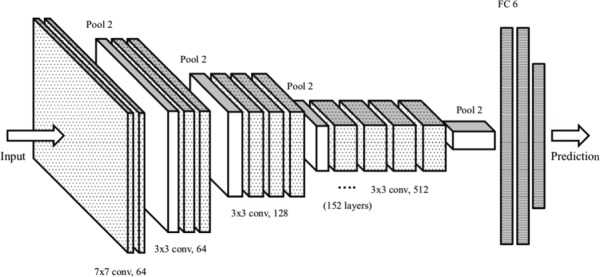

Example illustration of ResNet-152 neural network layers. The layer diagram from input to prediction for a neural network of type ResNet-152, which features prominently in the final Life Whisperer artificial intelligence (AI) model, is shown. For the 152 layers, the number of convolutional layers (‘conv’) are depicted, along with the filter size, which is the receptive region taken by each convolutional layer. Two-dimensional maxpooling layers (‘pool’) are also shown, with a final fully connected (FC) layer, which represents the classifier, with a binary output for prediction (non-viable and viable).

Figure 3

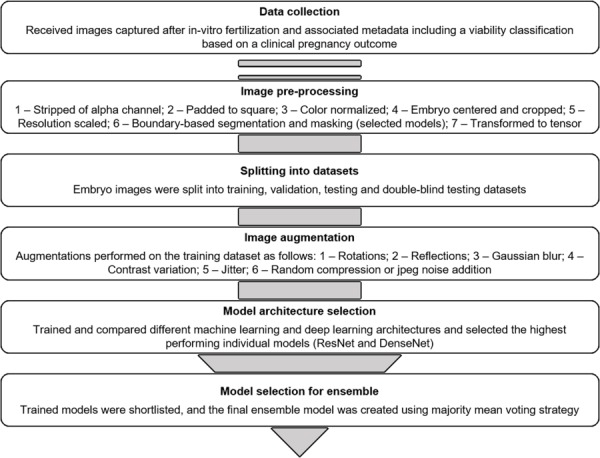

Flow chart for model creation and selection methodology. The model creation methodology is depicted beginning from data collection (top). Each step summarizes the component tasks that were used in the development of the final AI model. After image processing and segmentation, the images were split into datasets and the training dataset prepared by image augmentation. The highest performing individual models were considered candidates for inclusion in the final ensemble model, and the final ensemble model was selected based using majority mean voting strategy.

Figure 4

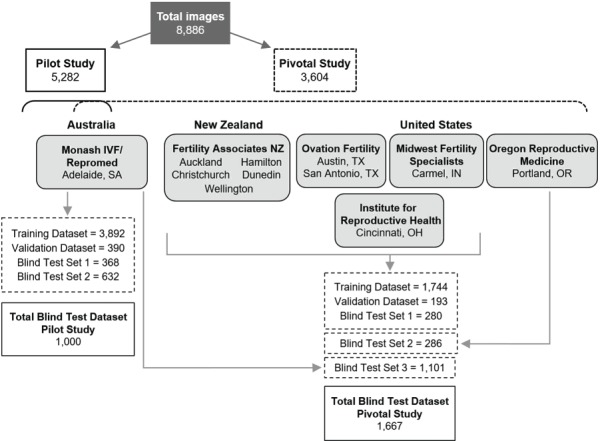

Image datasets used in AI model development and testing. A total of 8886 images of Day 5 embryos with matched clinical pregnancy outcome data were obtained from 11 independent IVF clinics across the USA, Australia and New Zealand. The pilot (feasibility) study to develop the initial AI model utilized 5282 images from a single clinic in Australia. This model was further developed in the pivotal study, which utilized an additional 3604 images from all 11 clinics. Blind test sets were used to determine AI model accuracy.

Figure 5

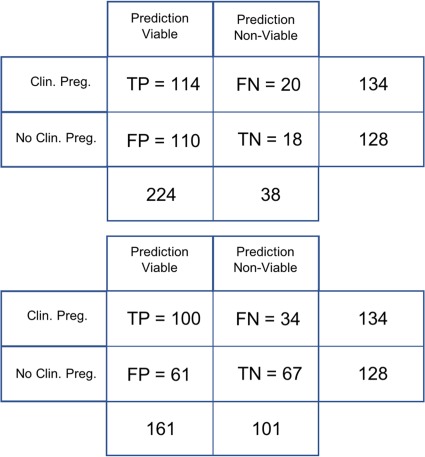

Confusion matrix of the pivotal study for embryologist and AI model grading. True positives (TP), false positives (FP), false negatives (FN) and true negatives (TN) are shown. The embryologists’ confusion matrix is depicted on the top panel, and the AI model’s confusion matrix is depicted on the bottom panel. The embryologists’ overall accuracy is significantly lower, despite a relatively higher sensitivity, due to the enhanced specificity of the AI model’s predictions. Clin. Preg. = clinical pregnancy; No Clin. Preg. = no clinical pregnancy.

Figure 6

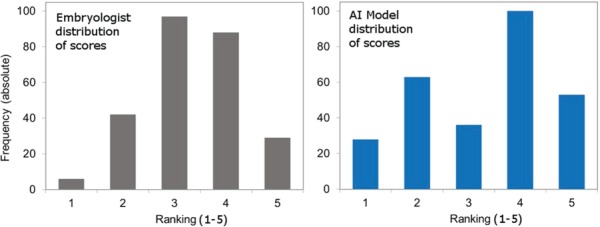

Distribution of viability rankings demonstrates the ability of the AI model to distinctly separate viable from non-viable human embryos. The left panel depicts the frequency of embryo viability rankings according to embryologist’s scores, and the right panel depicts the frequency of viability rankings according to AI model predictions. Results are shown for Blind Test Set 1. Y-axis = % of images in rank; x-axis = ranking band (1 = lowest predicted viability, 5 = highest predicted viability).

Figure 7

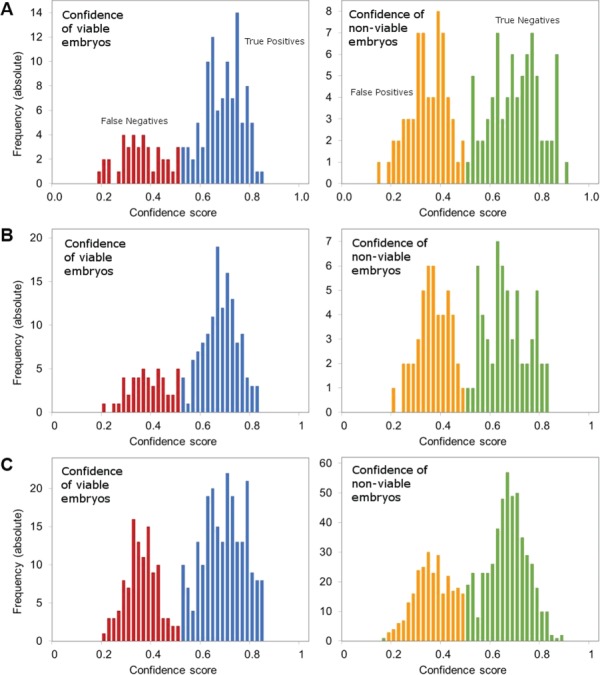

Distributions of prediction scores show the separation of correct from incorrect predictions by the AI model. Distributions of prediction scores are presented for Blind Test Set 1 (A), Blind Test Set 2 (B) and Blind Test Set 3 (C). The left panel in each set depicts the frequency of predictions presented as confidence intervals for viable embryos. True positives where the model was correct are marked in blue, and false negatives where the model was incorrect are marked in red. The right panel in each set depicts the frequency of predictions presented as confidence intervals for non-viable embryos. True negatives where the model was correct are marked in green, and false positives where the model was incorrect are marked in orange.
