Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2020 Apr 28;5(3):564-568.
doi: 10.1016/j.bioactmat.2020.04.014. eCollection 2020 Sep.

Microstructure, mechanical property and corrosion behavior of porous Ti-Ta-Nb-Zr

B Q Li  1 , R Z Xie  1 , X Lu  2
Affiliations

Microstructure, mechanical property and corrosion behavior of porous Ti-Ta-Nb-Zr

B Q Li et al. Bioact Mater. .

Abstract

In this paper, biomedical porous Ti-Nb-Ta-Zr with 40% porosity and 166 ± 21 μm macro-pore size was successfully fabricated by space holder method. The microstructure, Vickers hardness, compressive and electrochemistry behavior were studied. It results that a few second phases exist in β matrix of the porous Ti-Nb-Ta-Zr. Its Young's modulus is 0.8 GPa, close to 0.01-3 GPa for trabecular bone. The total recovery strain ratio and pseudoelastic strain ratio are 8.8% and 2.7%, respectively. It fails mainly by brittle cleavage with the fan-shaped and smooth cleaved facets. Although, local ductile fracture by a few dimples and a small amount of transcrystalline fracture with the cleavage of similarly oriented laths in a colony are observed on the fracture surface. The impedance spectrum of porous Ti-Nb-Ta-Zr has the characteristics of half capacitive arc resistance, showing good corrosion resistance in SBF solution.

Keywords: Compressive property; Electrochemistry behavior; Macro-pore structure; Porous Ti–Nb–Ta–Zr alloy.

PubMed Disclaimer

Conflict of interest statement

There is no conflict of interest.

Figures

Image 1

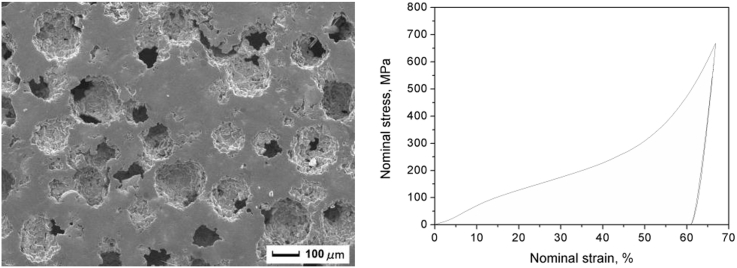

Graphical abstract
Fig. 1
Fig. 1
Equivalent circuit.
Fig. 2
Fig. 2
Microstructure of Powder (a) and porous TNTZ alloy (b) and XRD diffraction (c).
Fig. 3
Fig. 3
EBSD results of TNTZ alloy: (a) Phase distribution; (b) Grain distribution; (c) Grain size distribution.
Fig. 4
Fig. 4
Micro-hardness distribution of porous TNTZ.
Fig. 5
Fig. 5
Stress-strain curve of porous TNTZ alloy.
Fig. 6
Fig. 6
SEM fractography of the porous TNTZ under compression showing: (a) macro-cracks, (b) cleavage facets, (c) transcrystalline fracture and (d) micro-voids.
Fig. 7
Fig. 7
The Nyqust diagram of solid (a) and porous TNTZ (b).
Fig. 8
Fig. 8
The Bode diagram of solid (a) and porous (b) TNTZ.
See this image and copyright information in PMC

References

    1. Latifi A., Imani M., Khorasani M.T., Joupari M.D. Plasma surface oxidation of 316L stainless steel for improving adhesion strength of silicone rubber coating to metal substrate. Appl. Surf. Sci. 2014;320:471–481.
    1. Hooreweder B.V., Lietaert K., Neirinck B., Lippiatt N., Wevers M. CoCr F75 scaffolds produced by additive manufacturing: influence of chemical etching on powder removal and mechanical performance. J. Mech. Behav. Biomed. Mater. 2017;70:60–67. - PubMed
    1. Fazel M., Salimijazi H.R., Shamanian M., Apachitei I., Zadpoor A.A. Influence of hydrothermal treatment on the surface characteristics and electrochemical behavior of Ti-6Al-4V bio-functionalized through plasma electrolytic oxidation. Surf. Coating. Technol. 2019;374:222–231.
    1. Kim Y. Mechanical properties of highly porous Ti49.5Ni50.5 biomaterials. Intermetallics. 2015;62:56–59.
    1. Tengvall P., Lundström I. Physico-chemical considerations of titanium as a biomaterial. Clin. Mater. 1992;9:115–134. - PubMed

LinkOut - more resources
