. 2020 May 14;24(1):222.
doi: 10.1186/s13054-020-02945-z.

Safe doubling of ventilator capacity: a last resort proposal for last resorts

J Geoffrey Chase  1 , Yeong Shiong Chiew  2 , Bernard Lambermont  3 , Philippe Morimont  3 , Geoffrey M Shaw  4 , Thomas Desaive  5
Affiliations

Safe doubling of ventilator capacity: a last resort proposal for last resorts

J Geoffrey Chase et al. Crit Care. .
No abstract available

PubMed Disclaimer

Conflict of interest statement

No competing interests

Figures

Fig. 1
Fig. 1

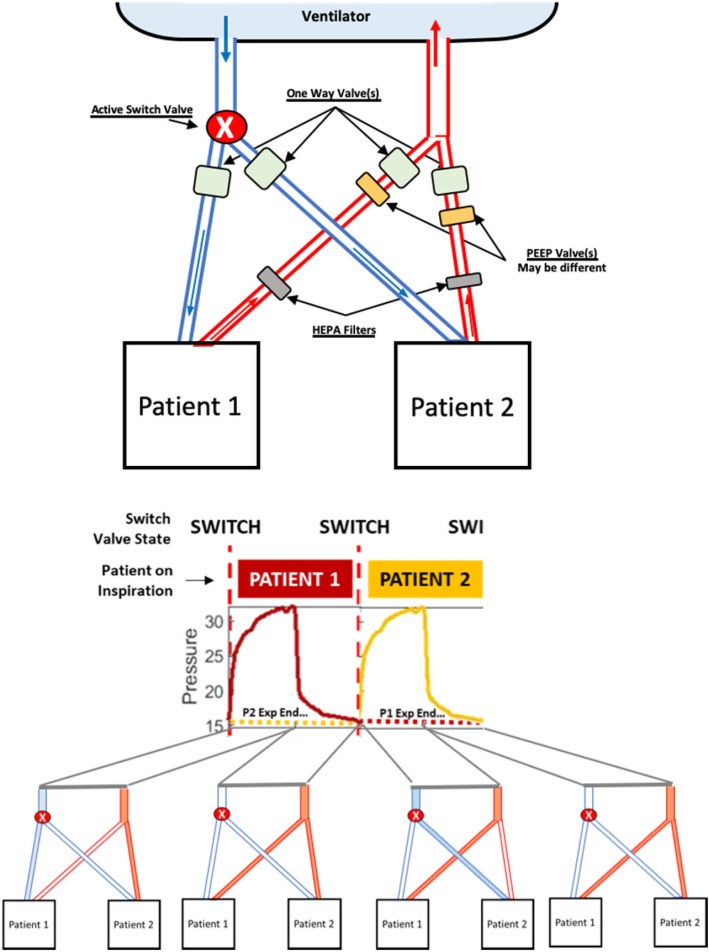

Top: Schematic of a proposed in-series breathing circuit for two patients using an active inspiration valve. Bottom: Resulting ventilation waveforms and active (filled in) and in-active (not filed) inspiratory and expiratory circuit lines at any given 2-s period for 2 × 4-s breaths, one by each patient. The ventilator will display the given patient data in each breath. Patients are colour-coded for clarity and show how end-expiration of one patient overlaps inspiration and initial expiration of a second patient, although using different parts of the circuit
See this image and copyright information in PMC

Comment in

References

    1. SCCM, et al., Consensus Statement on Multiple Patients Per Ventilator. SCCM Website (https://www.sccm.org/Disaster/Joint-Statement-on-Multiple-Patients-Per-V...), 2020. Accessed 13 Apr 2020.
    1. Truog RD, Mitchell C, Daley GQ. The Toughest Triage - Allocating Ventilators in a Pandemic [published online ahead of print, 2020 Mar 23]. N Engl J Med. 2020;10.1056/NEJMp2005689. 10.1056/NEJMp2005689. Accessed 13 Apr 2020. - PubMed
    1. Pinson, H., A better way of connecting multiple patients to a ventilator, Medium.com, Editor. 2020, Medium.com: Medium.com (https://medium.com/@pinsonhannah/a-better-way-of-connecting-multiple-pat...). P. Blog Post by Hannah Pinson.
    1. Differential Multiventilation International Working Group. Differential Multiventilation. Differential Multiventilation [https://www.differentialmultivent.org/] 2020 [cited 2020 April 13, 2020]; Available from: Differential Multiventilation.
