. 2020;31(2):218-222.
doi: 10.5606/ehc.2020.71764. Epub 2020 Jun 18.

A novel method to assess intraarticular screw penetration into the joint space

Hasan Hüseyin Ceylan, Tunay Erden, Mehmet Kapıcıoğlu, Fatih Küçükdurmaz  1
Affiliations

A novel method to assess intraarticular screw penetration into the joint space

Hasan Hüseyin Ceylan et al. Jt Dis Relat Surg. 2020.

Abstract

Objectives: This study aims to propose a novel method to detect articular penetration of screws by relying on their electrical conductivity properties and control the validity of this method.

Materials and methods: In this ex vivo study, conducted between June 2017 and August 2017, we used five fresh sheep shoulder joints. First, the shoulder joint space was filled with saline solution. An insulated cannula was placed in the joint capsule, and a conductive wire was introduced into the joint via this cannula. A single titanium screw was inserted from the tuberculum majus into the posteroinferior quadrant of the humeral head under fluoroscopic observation. Conductivity was continuously measured using a digital multimeter. When a sudden decrease in conduction resistance was detected, fluoroscopic images were obtained in the anteroposterior (AP) and lateral directions. These images were assessed for penetration by a blinded surgeon. Penetration was confirmed by dissection of the joint.

Results: There was a significant decrease in electrical resistance when screw penetration occurred (p<0.001). All penetration events were confirmed using our novel method. For all five of the specimens, either AP or lateral images could not be used to confirm penetration. For two of these specimens, penetration was undetectable in both AP and lateral fluoroscopic images, but a decrease in resistance was recorded.

Conclusion: The described method exhibits greater sensitivity and accuracy for metal penetration to joint, and it is effective in detecting screws in the joints. The novel method described in this paper was applied in a prototype setting, and we believe that this concept can continue to be developed.

PubMed Disclaimer

Conflict of interest statement

Conflict of Interest: The authors declared no conflicts of interest with respect to the authorship and/or publication of this article.

Figures

Figure 1

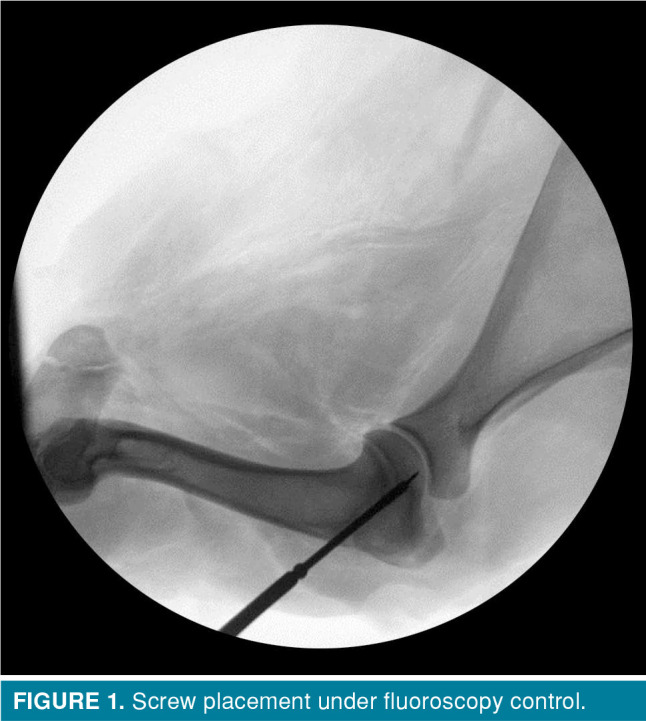

Figure 1. Screw placement under fluoroscopy control.
Figure 2
Figure 2. Spinal needle placement to intraarticular cavity was confirmed via fluoroscopy.
Figure 3
Figure 3. Anteroposterior view showing subchondral placement of screw.
Figure 4
Figure 4. Lateral view showing subchondral placement of screw.
Figure 5
Figure 5. Exploration of joint demonstrates penetration.
See this image and copyright information in PMC
