Site-specific machine learning predictive fertilization models for potato crops in Eastern Canada

Abstract

Statistical modeling is commonly used to relate the performance of potato (Solanum tuberosum L.) to fertilizer requirements. Prescribing optimal nutrient doses is challenging because of the involvement of many variables including weather, soils, land management, genotypes, and severity of pests and diseases. Where sufficient data are available, machine learning algorithms can be used to predict crop performance. The objective of this study was to determine an optimal model predicting nitrogen, phosphorus and potassium requirements for high tuber yield and quality (size and specific gravity) as impacted by weather, soils and land management variables. We exploited a data set of 273 field experiments conducted from 1979 to 2017 in Quebec (Canada). We developed, evaluated and compared predictions from a hierarchical Mitscherlich model, k-nearest neighbors, random forest, neural networks and Gaussian processes. Machine learning models returned R2 values of 0.49-0.59 for tuber marketable yield prediction, which were higher than the Mitscherlich model R2 (0.37). The models were more likely to predict medium-size tubers (R2 = 0.60-0.69) and tuber specific gravity (R2 = 0.58-0.67) than large-size tubers (R2 = 0.55-0.64) and marketable yield. Response surfaces from the Mitscherlich model, neural networks and Gaussian processes returned smooth responses that agreed more with actual evidence than discontinuous curves derived from k-nearest neighbors and random forest models. When conditioned to obtain optimal dosages from dose-response surfaces given constant weather, soil and land management conditions, some disagreements occurred between models. Due to their built-in ability to develop recommendations within a probabilistic risk-assessment framework, Gaussian processes stood out as the most promising algorithm to support decisions that minimize economic or agronomic risks.

Fig 1. Location of experimental sites [53].

Fig 2. Predictive features importance for modeling.

Fig 3. Comparison of models goodness of fit using R², MAE and RMSE.

Fig 4. Examples of potato yield response to N, P or K fertilization using different models.

Fig 5. Examples of potato tuber size [M, S | L] balance response to N, P or K fertilization using different models.

Fig 6. Examples of potato tuber size [S | M] balance response to N, P or K fertilization using different models.

Fig 7. Examples of potato tuber SG response to N, P or K fertilization using different models.

Fig 8. Economic or agronomic optimal doses and output predictions at optimal dosages for each model with a random selected test trial (N° 194).

Fig 9. Examples of optimal economic N, P, K doses distribution with Gaussian processes using marketable yield for selected trials.

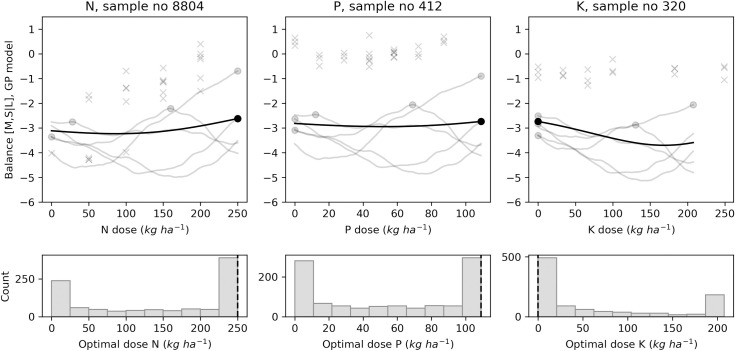

Fig 10. Examples of agronomic optimal N, P, K doses distribution with Gaussian processes using tuber size [M, S | L] balance for selected trials.

Fig 11. Examples of agronomic optimal N, P, K doses distribution with Gaussian processes using tuber size [S | M] balance for selected trials.

Fig 12. Examples of agronomic optimal N, P, K doses distribution with Gaussian processes using tuber SG for selected trials.
