. 2020 Aug 3;9(8):812-817.
doi: 10.1002/open.202000166. eCollection 2020 Aug.

Electrochemical Performance of Graphitic Multi-walled Carbon Nanotubes with Different Aspect Ratios as Cathode Materials for Aluminum-ion Batteries

Lixue Hou  1 , Haining Cao  1 , Mei Han  1 , Zichuan Lv  1 , Shuai Zhou  1 , Hui Chen  1 , Huiping Du  1 , Mian Cai  1 , Yue Zhou  1 , Chao Meng  1 , Yinghui Bian  1 , Meng-Chang Lin  1
Affiliations

Electrochemical Performance of Graphitic Multi-walled Carbon Nanotubes with Different Aspect Ratios as Cathode Materials for Aluminum-ion Batteries

Lixue Hou et al. ChemistryOpen. .

Abstract

Graphitic multi-walled carbon nanotubes (MWCNTs) can function as high-performance cathode materials for rechargeable Al-ion batteries with well-defined discharging plateaus and reasonable charge/discharge C-rates. However, the main intercalation/deintercalation or adsorption/desorption path of AlCl4- anions into or onto G-MWCNTs has not been elucidated. Herein, we used battery cells comprised of G-MWCNTs with different aspect ratios, Al metal, and AlCl3/1-ethyl-3-methylimidazolium chloride ionic liquid as the cathode, anode, and electrolyte, respectively. The electrochemical performance of the Al||G-MWCNT cell increased as the aspect ratio of the G-MWCNT cathode increased (i. e., longer and thinner). The degree of defects of the G-MWCNTs was similar (0.15-0.22); hence, the results confirm that the main and alternate paths for the AlCl4- intercalation/de-intercalation or adsorption/desorption into/from or onto/from the G-MWCNT are the basal and edge planes, respectively. The step-like structures of defects on the basal plane provide the main reaction site for AlCl4- anions.

Keywords: aluminum; aspect ratio; cathod materials; multi-walled carbon nanotubes; reaction mechanisms.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
(a–d) Scanning electron microscopy images, (e–h) High‐resolution transmission electron microscopy images and (i) schematic drawing of the four types of MWCNTs with different aspect ratios.
Figure 2
Figure 2
(a) Raman spectra and (b) XRD spectra of the four types of MWCNT.
Figure 3
Figure 3
(a) Charge/discharge curves of four types of MWCNT cathodes at 200 mA g−1 current density. (b) Capacity retention of the Al||MWCNT‐1 cell charge/discharge cycled at various current densities.
Figure 4
Figure 4
b‐value determination of the cathodic peak currents of (a) Al||MWCNT‐1, (b) Al||MWCNT‐2, (c) Al||MWCNT‐3, and (d) Al||MWCNT‐4 cells. Insets: the ratio between battery behavior (blue dotted rectangle) and capacitive behaviors (red solid rectangle) at different scan rates of the Al||MWCNT cells.
Figure 5
Figure 5
Relationship between various MWCNT cathodes with different aspect ratios and the corresponding specific capacities of the Al||MWCNT cells.
Figure 6
Figure 6

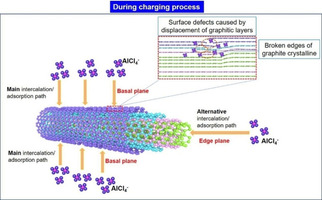

Schematic representation of the possible mechanisms of interfacial interaction between AlCl4 − and graphitic MWCNTs.
See this image and copyright information in PMC

References

    1. Hong X., Mei J., Wen L., Tong Y., Vasileff A. J., Wang L., Liang J., Sun Z., Dou S. X., Adv. Mater. 2019, 31, 1802822–1802831. - PubMed
    1. Yan Y. Y., Cheng C., Zhang L., Li Y. G., Lu J., Adv. Energy Mater. 2019, 9, 1900148–1900162.
    1. Gao T., Li X., Wang X., Hu J., Han F., Fan X., Suo L., Pearse A. J., Lee S. B., Rubloff G. W., Gaskell K. J., Noked M., Wang C., Angew. Chem. Int. Ed. 2016, 55, 9898–9901; - PubMed
    2. Angew. Chem. 2016, 128, 10052–10055.
    1. Geng L., Lv G., Xing X., Guo J., Chem. Mater. 2015, 27, 4926–4929.
    1. Bian Y., Li Y., Yu Z., Chen H., Du K., Qiu C., Zhang G., Lv Z., Lin M.-C., ChemElectroChem 2018, 5, 3607–3611.
