Multi-Reader-Multi-Split Annotation of Emphysema in Computed Tomography

Abstract

Emphysema is visible on computed tomography (CT) as low-density lesions representing the destruction of the pulmonary alveoli. To train a machine learning model on the emphysema extent in CT images, labeled image data is needed. The provision of these labels requires trained readers, who are a limited resource. The purpose of the study was to test the reading time, inter-observer reliability and validity of the multi-reader-multi-split method for acquiring CT image labels from radiologists. The approximately 500 slices of each stack of lung CT images were split into 1-cm chunks, with 17 thin axial slices per chunk. The chunks were randomly distributed to 26 readers, radiologists and radiology residents. Each chunk was given a quick score concerning emphysema type and severity in the left and right lung separately. A cohort of 102 subjects, with varying degrees of visible emphysema in the lung CT images, was selected from the SCAPIS pilot, performed in 2012 in Gothenburg, Sweden. In total, the readers created 9050 labels for 2881 chunks. Image labels were compared with regional annotations already provided at the SCAPIS pilot inclusion. The median reading time per chunk was 15 s. The inter-observer Krippendorff's alpha was 0.40 and 0.53 for emphysema type and score, respectively, and higher in the apical part than in the basal part of the lungs. The multi-split emphysema scores were generally consistent with regional annotations. In conclusion, the multi-reader-multi-split method provided reasonably valid image labels, with an estimation of the inter-observer reliability.

Keywords: Chronic Obstructive Pulmonary Disease; Computed Tomography; Image Annotation; Machine Learning; Observer Variation; Pulmonary Emphysema; X-Ray.

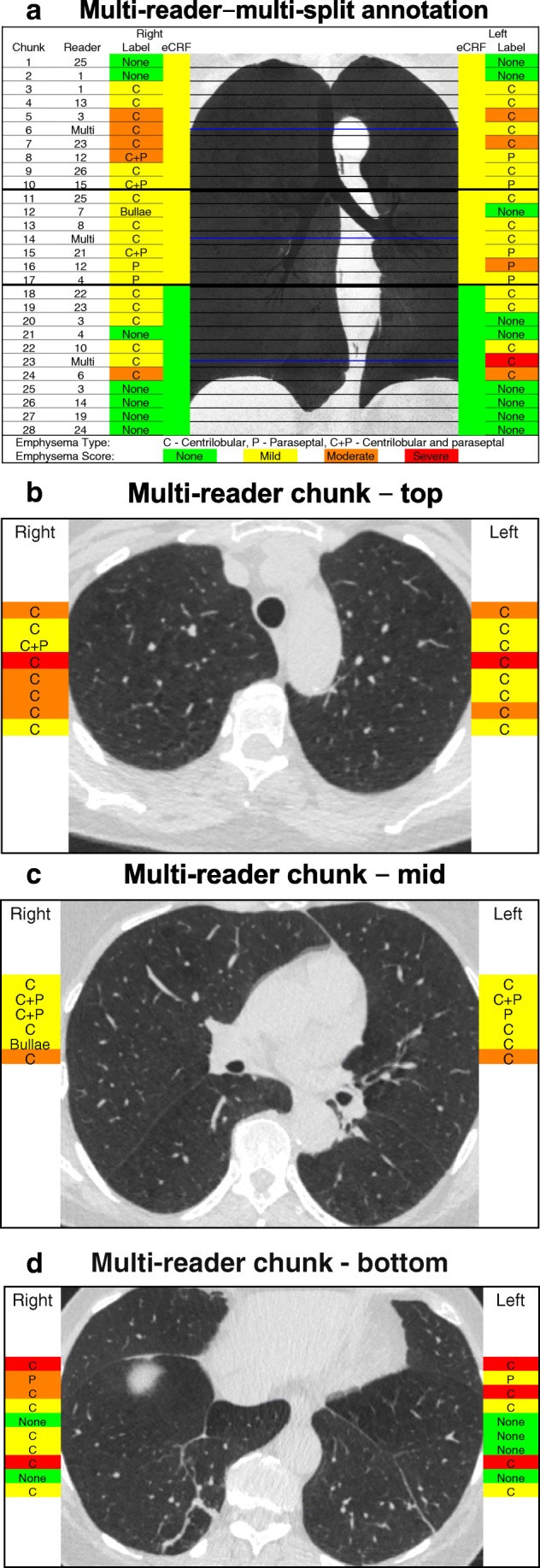

Fig. 1

Multi-reader–multi-split annotation in one subject. The overall electronic case report form (eCRF) emphysema type was centrilobular. The multi-split emphysema score is color-coded and type is abbreviated. (a) Coronal minimum intensity (MinIP) projection demonstrating the 28 chunks from this subject. The multi-reader chunks are indicated by blue lines. The regional eCRF score is color-coded. The reader variations in the top, middle, and bottom multi-reader chunks are shown in Fig. 1b–d. The number of readers in the multi-reader chunks varies because of the random sampling. The MinIP images were not available for the readers

Fig. 2

Systematic differences between readers in (a). emphysema score and (b). emphysema type, and (c). Absence of systematic difference in corresponding eCRF score. Each bar represents a reader. The colors represent the relative frequencies of the classifications for the reader. The 26 readers are sorted according to the proportion of normal lung parenchymas, with maintained positions in (a), (b) and (c). Lung parenchyma in both sides in multi-reader chunks are included

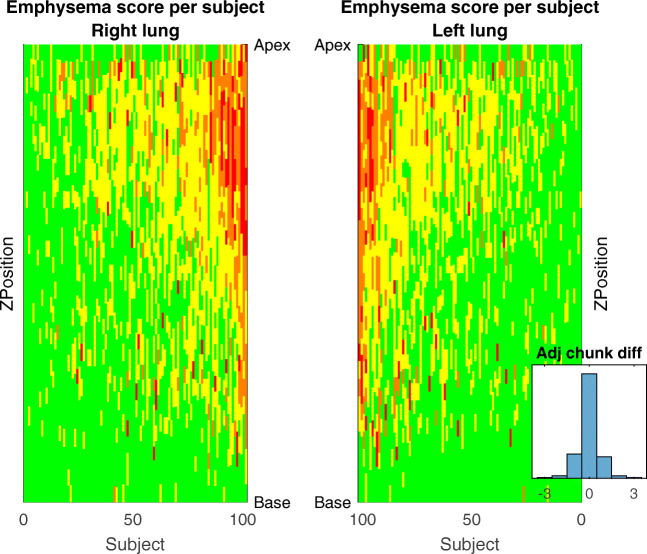

Fig. 3

Multi-reader–multi-split emphysema scores for both lungs for all subjects in the study. The emphysema degree is color-coded; green, yellow, orange, and red represent no, mild, moderate and severe emphysema, respectively. The subjects are sorted according to mean total emphysema score. A vertical line for each lung demonstrates the cranio-caudal distribution of emphysema scores for each subject. The histogram of the difference between adjacent chunks is inserted

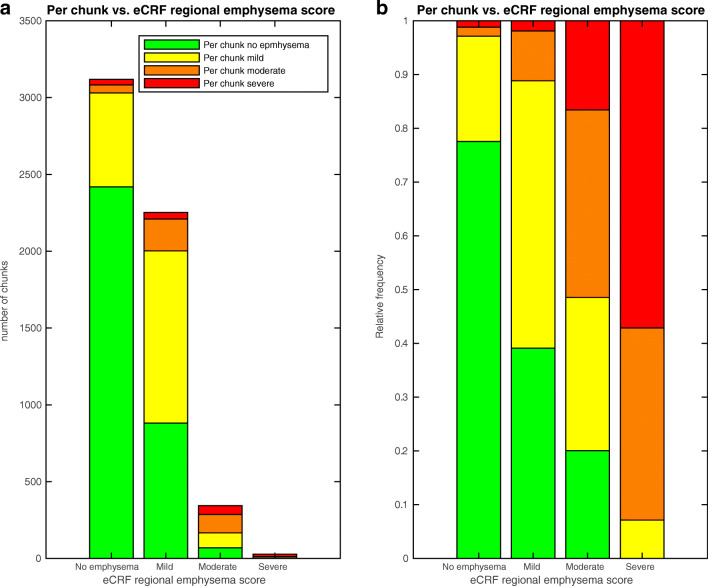

Fig. 4

(a) Absolute and (b) relative distribution of emphysema score for chunks within different eCRF regional emphysema score
