. 2020 Jul 31;76(Pt 8):1403-1406.
doi: 10.1107/S2056989020010336. eCollection 2020 Aug 1.

Crystal structure of 1-ferrocenyl-2-(4-nitro-phen-yl)ethyne

Sara M Delgado Rivera  1 , Jean C González Espiet  2 , Jesús M Dones  1 , Sebastián A Henríquez López  1 , Ana R Guadalupe  1 , Dalice M Piñero Cruz  2 , Ingrid Montes González  1
Affiliations

Crystal structure of 1-ferrocenyl-2-(4-nitro-phen-yl)ethyne

Sara M Delgado Rivera et al. Acta Crystallogr E Crystallogr Commun. .

Abstract

The title ferrocene derivative, [Fe(C5H5)2(C8NO2)], including an alkyne bonded to a para-nitro-phenyl substituent, which was synthesized from a copper-free Sonogashira cross-coupling reaction between ethynylferrocene and 4-bromo-1-nitro-benzene, crystallizes in the P21/n space group. In the ferrocene unit, the penta-dienyl (Cps) rings are in an eclipsed conformation. The angle of rotation between the substituted cyclo-penta-dienyl ring and the p-nitro-phenyl group is 6.19 (10)°, yielding a quasi-linear extension of the ferrocenyl substitution. Important inter-molecular inter-actions arise from π-π stacking between the Cp rings and the p-nitro-phenyl, from corners of the Cp rings that are perpendicularly aligned, and between the O atoms from the nitro substituent and carbons at the corners of the Cp rings, propagating along all three crystallographic axes.

Keywords: 4-nitro­phenyl­ethyne; Sonogashira coupling; crystal structure; ferrocene; green chemistry.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Mol­ecular structure of the title compound, including atom labelling. Displacement ellipsoids are drawn at the 50% probability level.
Figure 2
Figure 2
Crystal packing of the title compound along the a axis with short-contact inter­actions shown as dashed lines.
Figure 3
Figure 3

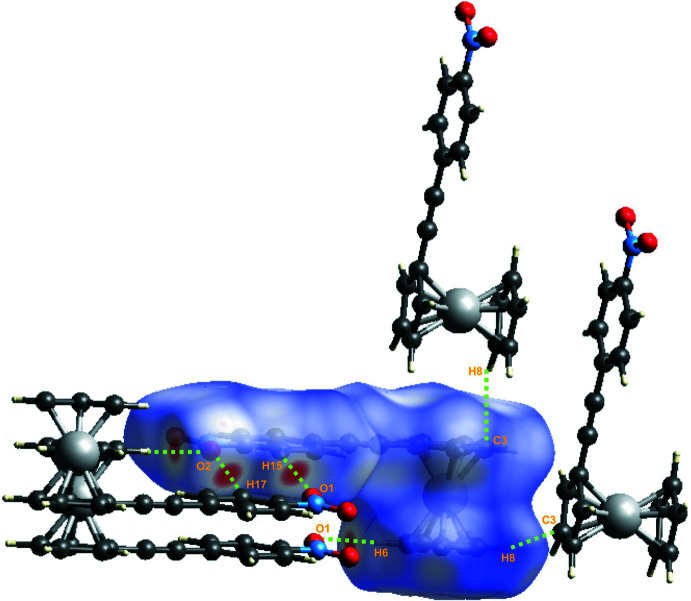

A view of the Hirshfeld surface of the title compound mapped over d norm with the four main inter­molecular contacts in the crystal lattice.
Figure 4
Figure 4
Full (a) and individual (b)–(j) two-dimensional fingerprint plots showing the nine inter­molecular contacts present in the crystal structure.
See this image and copyright information in PMC

References

    1. Bobula, T., Hudlický, J., Novák, P., Gyepes, R., Císařová, I., Štěpnička, P. & Kotora, M. (2008). Eur. J. Inorg. Chem. pp. 3911–3920.
    1. Coutouli-Argyropoulou, E., Tsitabani, M., Petrantonakis, G., Terzis, A. & Raptopoulou, C. (2003). Org. Biomol. Chem. 1, 1382–1388. - PubMed
    1. Dai, J.-J., Fang, C., Xiao, B., Yi, J., Xu, J., Liu, Z.-J., Lu, X., Liu, L. & Fu, Y. (2013). J. Am. Chem. Soc. 135, 8436–8439. - PubMed
    1. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341.
    1. Fu, N., Zhang, Y., Yang, D., Chen, B. & Wu, X. (2008). Catal. Commun. 9, 976–979.
