. 2020 May-Jun;13(3):235-239.
doi: 10.5005/jp-journals-10005-1768.

Comparison of Accuracy of Apex Locator with Tactile and Conventional Radiographic Method for Working Length Determination in Primary and Permanent Teeth

Khushboo Rathore  1 , Sandeep Tandon  1 , Meenakshi Sharma  1 , Garima Kalia  1 , Tejshree Shekhawat  1 , Yogendra Chundawat  1
Affiliations

Comparison of Accuracy of Apex Locator with Tactile and Conventional Radiographic Method for Working Length Determination in Primary and Permanent Teeth

Khushboo Rathore et al. Int J Clin Pediatr Dent. 2020 May-Jun.

Abstract

Background: Correct working length determination is one of the main factors leading to success in root canal treatment. The digital tactile sense technique and conventional radiography (CR) are common techniques for working length determination but both techniques have some limitations. A newer method of working length estimation involves use of the apex locator. The current study was carried out to compare the accuracy of the apex locator with a tactile and conventional radiographic method for working length determination in primary and permanent teeth.

Materials and methods: The study was conducted on 60 children selected randomly from the outpatient department of the Department of Pediatric and Preventive Dentistry. The patients were divided into two groups: primary and permanent. An informed consent was obtained. After radiographic confirmation of the presence of more than two-third root length access, opening was done in all the teeth. The pulp was extirpated completely from the chamber and canals. Canals were dried completely using paper points. Working length was determined by all the three methods, i.e., digital tactile method, apex locator, and conventional intraoral periapical radiographic method in both primary and permanent teeth.

Results: The data were coded and entered into the Microsoft Excel spreadsheet. The analysis was done using the SPSS version 20 (IBM SPSS Statistics Inc., Chicago, Illinois, USA) Windows software program. The variables were assessed for normality using the one-way ANOVA test. Within the limitations of this study, working lengths obtained by the tactile method, the apex locator, and the radiographic method were comparable. There was no statistically significant difference among the three methods except in mesiolingual and distobuccal canals of permanent teeth.

Conclusion: The apex locator can serve as a useful guide to determine the working length in permanent as well as primary teeth.

How to cite this article: Rathore K, Tandon S, Sharma M, et al. Comparison of Accuracy of Apex Locator with Tactile and Conventional Radiographic Method for Working Length Determination in Primary and Permanent Teeth. Int J Clin Pediatr Dent 2020;13(3):235-239.

Keywords: Permanent teeth; Primary teeth; Root canal treatment; Working length.

PubMed Disclaimer

Conflict of interest statement

Source of support: Nil Conflict of interest: None

Figures

Fig. 1
Fig. 1
Determination of working Length by apex locator
Fig. 2
Fig. 2
Determination of working length by radiograph in primary tooth
Fig. 3
Fig. 3
Determination of working length by radiograph in permanent tooth
Fig. 4

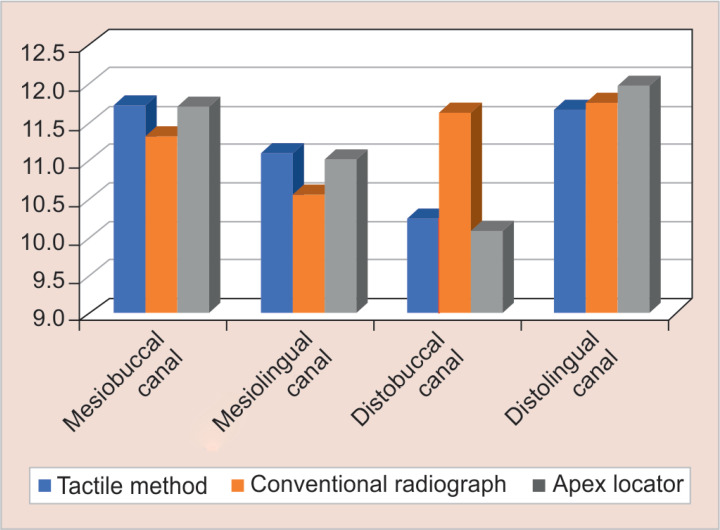

Fig. 4
Comparison of root canal measurement in primary teeth
Fig. 5

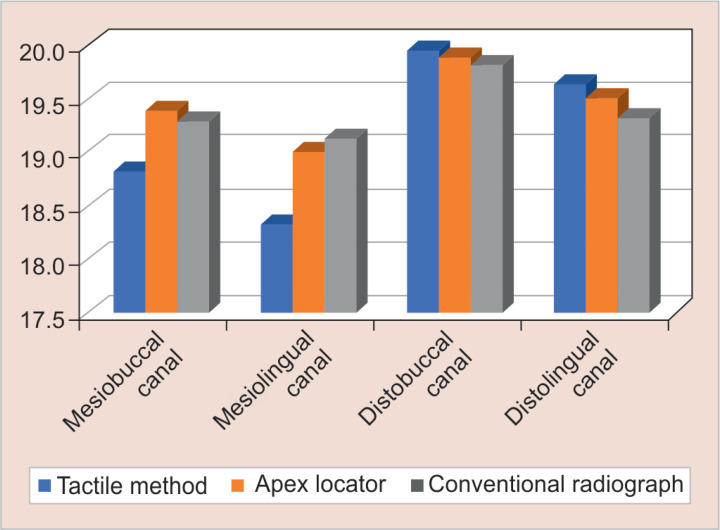

Fig. 5
Comparison of root canal measurement in permanent teeth
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Sivadas G, Sudha P, Shenoy R, et al. Accuracy of apex locator for root canal length determination of deciduous molars compared to conventional radiograph. J Interdiscip Dent. 2013;3(3):163–166. doi: 10.4103/2229-5194.131209. DOI: - DOI
    1. Marín PN, Alonso ZNV, Castañón MGA, et al. Clinical evaluation of the accuracy of conventional radiography and apex locators in primary teeth. Pediatr Dent. 2011;33(1):19–22. - PubMed
    1. Mello-Moura ACV, Moura-Netto C, Araki AT, et al. Ex vivo performance of five methods for root canal length determination in primary anterior teeth. Int Endod J. 2010;43(2):142–147. doi: 10.1111/j.1365-2591.2009.01667.x. DOI: - DOI - PubMed
    1. AAE Glossary of Endodontic Terms. 9th ed.
    1. Poornima P, Ramchandani G, Neena IE, et al. Accuracy of root ZX apex locator in primary teeth with different root canal irrigants: an in vivo study. Niger J Experimen Clin Biosci. 2015;3(1):24–28. doi: 10.4103/2348-0149.158161. DOI: - DOI
