Sentinel lymph node mapping using ICG fluorescence and cone beam CT - a feasibility study in a rabbit model of oral cancer

Nidal Muhanna  1   2   3   4 , Harley H L Chan  2 , Catriona M Douglas  5   6   7 , Michael J Daly  2 , Atul Jaidka  2 , Donovan Eu  1   2 , Jonathan Bernstein  1   2   3 , Jason L Townson  2 , Jonathan C Irish  1   2   3
Affiliations

Sentinel lymph node mapping using ICG fluorescence and cone beam CT - a feasibility study in a rabbit model of oral cancer

Nidal Muhanna et al. BMC Med Imaging. .

Abstract

Background: Current sentinel lymph node biopsy (SLNB) techniques, including use of radioisotopes, have disadvantages including the use of a radioactive tracer. Indocyanine green (ICG) based near-infrared (NIR) fluorescence imaging and cone beam CT (CBCT) have advantages for intraoperative use. However, limited literature exists regarding their use in head and neck cancer SLNB.

Methods: This was a prospective, non-randomized study using a rabbit oral cavity VX2 squamous cell carcinoma model (n = 10) which develops lymph node metastasis. Pre-operatively, images were acquired by MicroCT. During surgery, CBCT and NIR fluorescence imaging of ICG was used to map and guide the SLNB resection.

Results: Intraoperative use of ICG to guide fluorescence resection resulted in identification of all lymph nodes identified by pre-operative CT. CBCT was useful for near real time intraoperative imaging and 3D reconstruction.

Conclusions: This pre-clinical study further demonstrates the technical feasibility, limitations and advantages of intraoperative NIR-guided ICG imaging for SLN identification as a complementary method during head and neck surgery.

Keywords: Cone beam CT; Head and neck cancer; Head and neck surgery; Indocyanine green; Near-infrared fluorescence imaging; Sentinel lymph node biopsy.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1

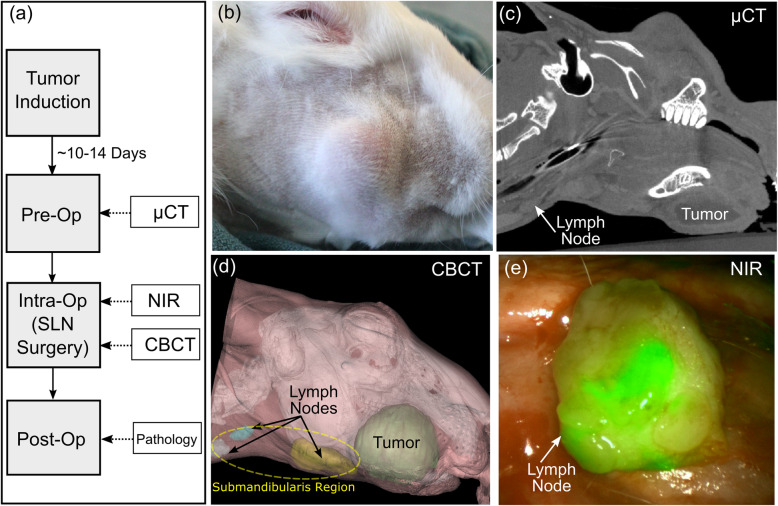

a Work flow b buccal cancer; c microCT demonstrating the tumor and lymph node; d surface rendering from microCT. e NIR fluorescence view of lymph node
Fig. 2
Fig. 2
Surgical guidance using intraoperative NIR fluoresence imaging in head and neck surgery with VX2 carcinoma bearing New Zealand White rabbit in buccal area: a subcutaneous ICG injection. b Intraoperative NIR fluorescence imaging. c White light image - lymph node. d NIR fluorescence image - lymph node. e Fluorescence green pseudo-color image overlay on white light image
Fig. 3
Fig. 3

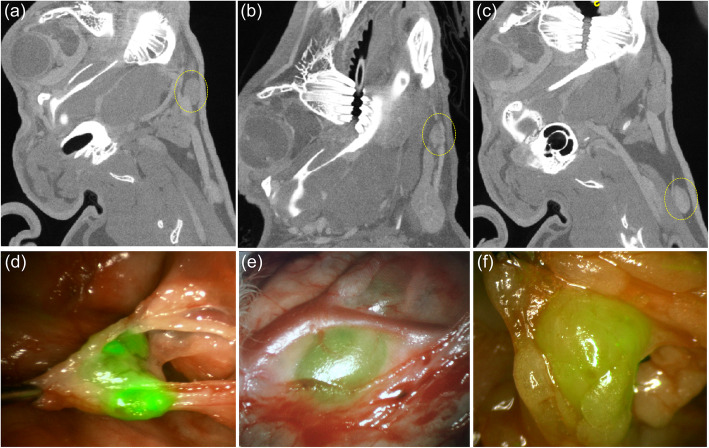

CT [(a)-(c)] and fluorescence [(d)-(f)] images of 3 rabbit lymph nodes
Fig. 4
Fig. 4

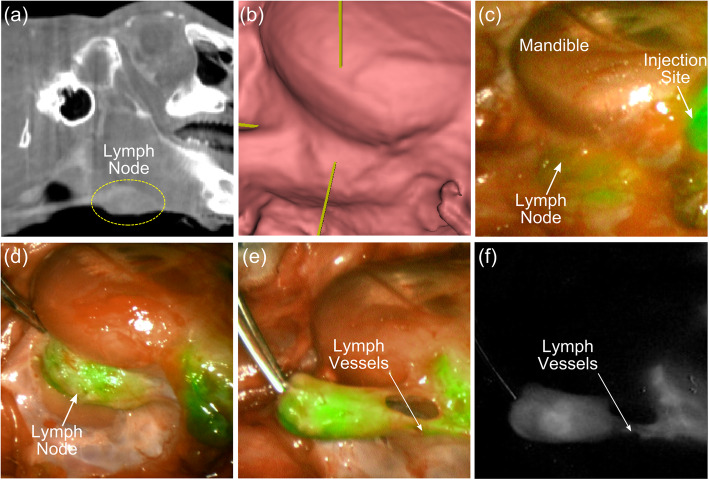

a lymph node location on CBCT; b Surface rendering from CBCT; c lymph node after skin exposure; d lymph node after fascia removed; e fluorescence in lymph vessels; f NIR fluorescence image corresponding to (e)
Fig. 5
Fig. 5
Comparison of pre-operative microCT (top) and intra-operative CBCT images for SLN imaging. a,b,c Axial, coronal and sagittal view on microCT. d,e,f The same rabbit and same views with cone beam CT
Fig. 6
Fig. 6

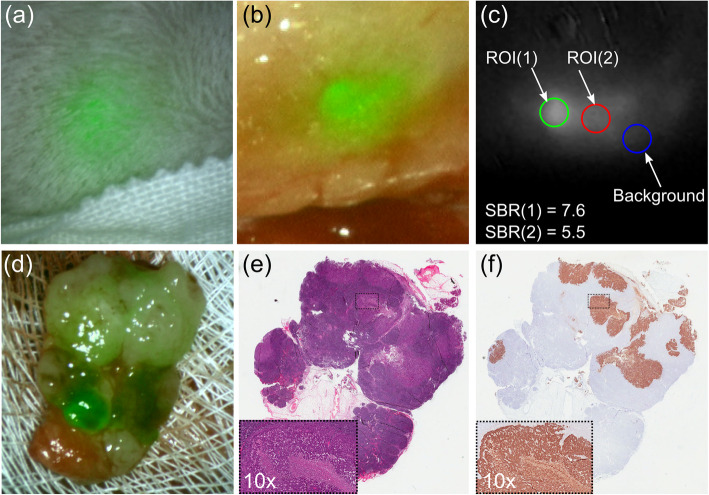

Analysis sequence for lymph node fluorescence imaging in intraoperative surgical guidance resecting the target: a percutaneous NIR fluorescence image; b in situ NIR fluorescence image; c in situ NIR fluorescence image of LN-A in Rabbit 4 with signal-to-background (SBR) ratios, the SBR for region-of-interest 1 and 2 are 6.0 and 4.6, respectively; d ex-vivo NIR fluorescence image of resected lymph node; e Pathology examination of tissue slice stained with hematoxylin and eosin (H&E); f Pathology examination of tissue slice with pan-cytokeratin straining (AE1/AE3). Note: H&E and AE1/AE3 slice suggest the resected lymph node is positive which correspondent to surgeon’s anatomical inspection
