Displacement ventilation: a viable ventilation strategy for makeshift hospitals and public buildings to contain COVID-19 and other airborne diseases

Abstract

The SARS-CoV-2 virus has so far infected more than 31 million people around the world, and its impact is being felt by all. Patients with diseases such as COVID-19 should ideally be treated in negative pressure isolation rooms. However, due to the overwhelming demand for hospital beds, patients have been treated in general wards, hospital corridors and makeshift hospitals. Adequate building ventilation in hospitals and public spaces is a crucial factor to contain the disease (Escombe et al. 2007 PLoS Med. 4; Escombe et al. 2019 BMC Infect. Dis. 19, 88 (doi:10.1186/s12879-019-3717-9); Morawska & Milton 2020 Clin. Infect. Dis. ciaa939. (doi:10.1093/cid/ciaa939)), to exit lockdown safely, and reduce the chance of subsequent waves of outbreaks. A recently reported air-conditioner-induced COVID-19 outbreak caused by an asymptomatic patient, in a restaurant in Guangzhou, China (Lu et al. 2020 Emerg. Infect. Dis. 26) exposes our vulnerability to future outbreaks linked to ventilation in public spaces. We argue that displacement ventilation (either mechanical or natural ventilation), where air intakes are at low level and extracts are at high level, is a viable alternative to negative pressure isolation rooms, which are often not available on site in hospital wards and makeshift hospitals. Displacement ventilation produces negative pressure at the occupant level, which draws fresh air from outdoors, and positive pressure near the ceiling, which expels the hot and contaminated air out. We acknowledge that, in both developed and developing countries, many modern large structures lack the openings required for natural ventilation. This lack of openings can be supplemented by installing extract fans. We have also discussed and addressed the issue of the 'lock-up effect'. We provide guidelines for such mechanically assisted, naturally ventilated makeshift hospitals.

Keywords: COVID-19; airborne disease control; makeshift hospitals; mechanical ventilation; natural ventilation; ventilation.

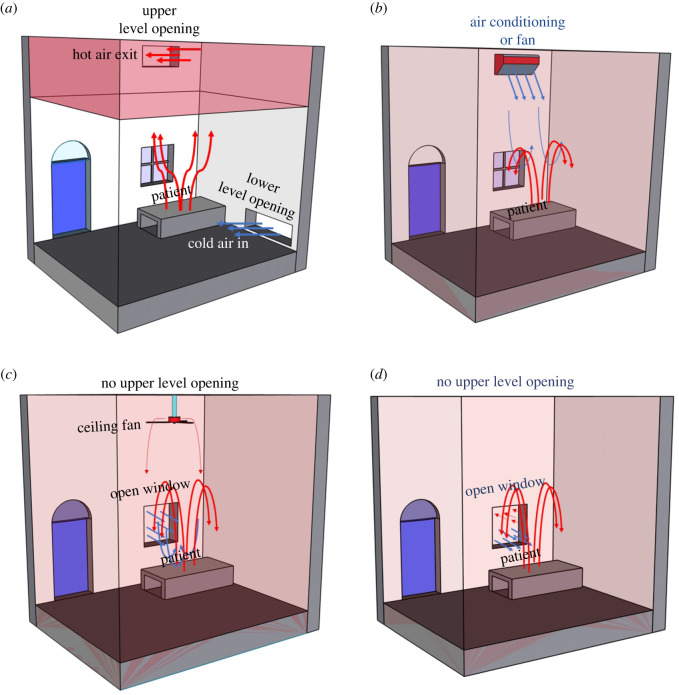

Figure 1.

Schematic of different ventilation types, (a) displacement ventilation, (b) positive pressure mixing ventilation by air-conditioning, (c) positive pressure mixing ventilation by fan and open window, and (d) wind-driven mixing ventilation. In displacement ventilation, fresh air enters from the bottom of the room and contaminated air exits from the top. In mixing ventilation with a ceiling fan or high-level air conditioning unit, the contaminant/contagion is distributed uniformly throughout the whole room. These ventilation modes can either be produced mechanically by fans or air conditioning, or by using natural ventilation.
