. 2020 Oct 20:33:106428.
doi: 10.1016/j.dib.2020.106428. eCollection 2020 Dec.

High-speed video data for settling of dense liquid droplets through liquid media with different viscosities

Driaan Bezuidenhout  1 , Quinn Reynolds  1 , Markus Erwee  1   2 , Oliver Oxtoby  3   4
Affiliations

High-speed video data for settling of dense liquid droplets through liquid media with different viscosities

Driaan Bezuidenhout et al. Data Brief. .

Abstract

A dataset of high-speed video footage of mercury droplets settling through liquid media of different viscosities is presented. Video footage was taken at 4000 frames per second for mercury droplets at room temperature settling through either deionised water or silicone oil. The data set is useful for validation of computational models of a wide range of systems which include phase separation studies, settling behaviour as well as interfacial phenomena in liquid-liquid systems. The data can serve as an analogue for validation for fluid systems where dimensional similarity exists and experimentation is not possible due to hostile experimental conditions, e.g. settling of molten metal through molten oxide slag in pyrometallurgical furnaces or separation of heavy liquid phases in chemical reactors.

Keywords: Interfacial phenomena in viscous systems; Metal-slag separation; Validation of computational modelling of settling; Viscous settling.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no known competing financial interests or personal relationships which have, or could be perceived to have, influenced the work reported in this article.

Figures

Fig. 1
Fig. 1
General arrangement of the experimental setup (A = eye-dropper fixed to retort stand over a standard borosilicate glass beaker, B = high-speed camera, C = studio light).
Fig. 2
Fig. 2
Detail arrangement of camera and eye-dropper (D = 3D-printed lens adapter to connect the reversed camera lens to the high-speed camera).
Fig. 3
Fig. 3

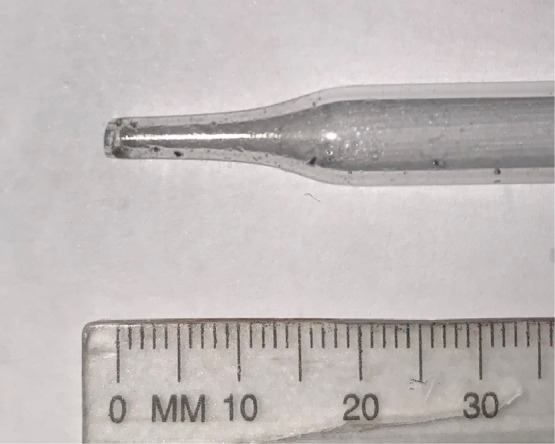

Micro still photograph of the dropper tip.
Fig. 4
Fig. 4
Measured diameter of dropper at different distances from the tip (cross sizes show estimated measurement error).
Fig. 5
Fig. 5
Example of basic image analysis for frame 4 of 456 from test 3 (DROP004), (a) raw image, (b) correction for distortion, (c) annotated with measurements.
See this image and copyright information in PMC

References

    1. “VLC Media Player,” VLC: Official Site - Free Multimedia Solutions For All OS! - VideoLAN. https://www.videolan.org/index.html (accessed May 22, 2020).
    1. “Minema, ” Minema Chemicals. http://www.minema.co.za (accessed Jun. 22, 2020).
    1. “AMETEK Brookfield,” AMETEK Brookfield Website. https://www.brookfieldengineering.com/ (accessed May 22, 2020).
    1. Bergman T., Lavine A., Incropera F., Dewitt D. 7th ed. Hohn Wiley & Sons; USA: 2011. Fundamentals of Heat and Mass Transfer.
    1. M. Bass, E.W. van Stryland, D.R. Williams, and W.L. Wolfe, Handbook of Optics. Devices, Measurements, & Properties, Second., vol. 2. USA: McGraw-Hill.
