. 2020 Jan 23;362(2):348-352.
doi: 10.1002/adsc.201901293. Epub 2019 Nov 6.

Cobalt Catalyzed Reductive Spirocyclopropanation Reactions

Jacob Werth  1 , Kristen Berger  1 , Christopher Uyeda  1
Affiliations

Cobalt Catalyzed Reductive Spirocyclopropanation Reactions

Jacob Werth et al. Adv Synth Catal. .

Abstract

Cobalt pyridine-diimine (PDI) complexes catalyze the reductive spirocyclopropanation of terminal 1,3-dienes. gem-Dichlorocycloalkanes serve as carbene precursors and Zn is used as a terminal electron source. The reaction is effective for a range of gem-dichloro partners including those containing sulfur and nitrogen heterocycles. An example of an intramolecular Rh-catalyzed [5 + 2]-cycloaddition of a vinyl spirocyclopropane is demonstrated, providing rapid access to a complex tricyclic framework. Overall, this catalyst system is capable of suppressing the kinetically facile 1,2-hydride shift, which has hampered the development of Simmons-Smith reactions using Zn carbenoids possessing β-hydrogen atoms.

Keywords: carbenes; carbenoids; cobalt; cyclopropanes; spiro compounds.

PubMed Disclaimer

Figures

Figure 1.
Figure 1.
Spirocyclopropanes in natural products and pharmaceutical compounds. Spirocyclopropanations of α,β unsaturated esters using diazocycloalkanes,[7] and catalytic reductive spirocyclopropanations using 1,1-dichlorocycloalkanes.
Figure 2.
Figure 2.
Substrate Scope Studies. Reaction conditions: 0.14 mmol of the 1,3-diene substrate, 1,1-dichlorocycloalkane (1.25 equiv), Zn (2.0 equiv), ZnBr2 (0.5 equiv), catalyst 9 (10 mol%), room temperature, 24 h. Isolated yields were determined following purification by column chromatography.
Figure 3.
Figure 3.
(a) Spirocyclopropanation reactions of activated alkenes, including (vinyl)Bpin. (b) Selective monocyclopropanation of a triene and Rh-catalyzed [5 + 2]-cycloaddition.
Figure 4.
Figure 4.

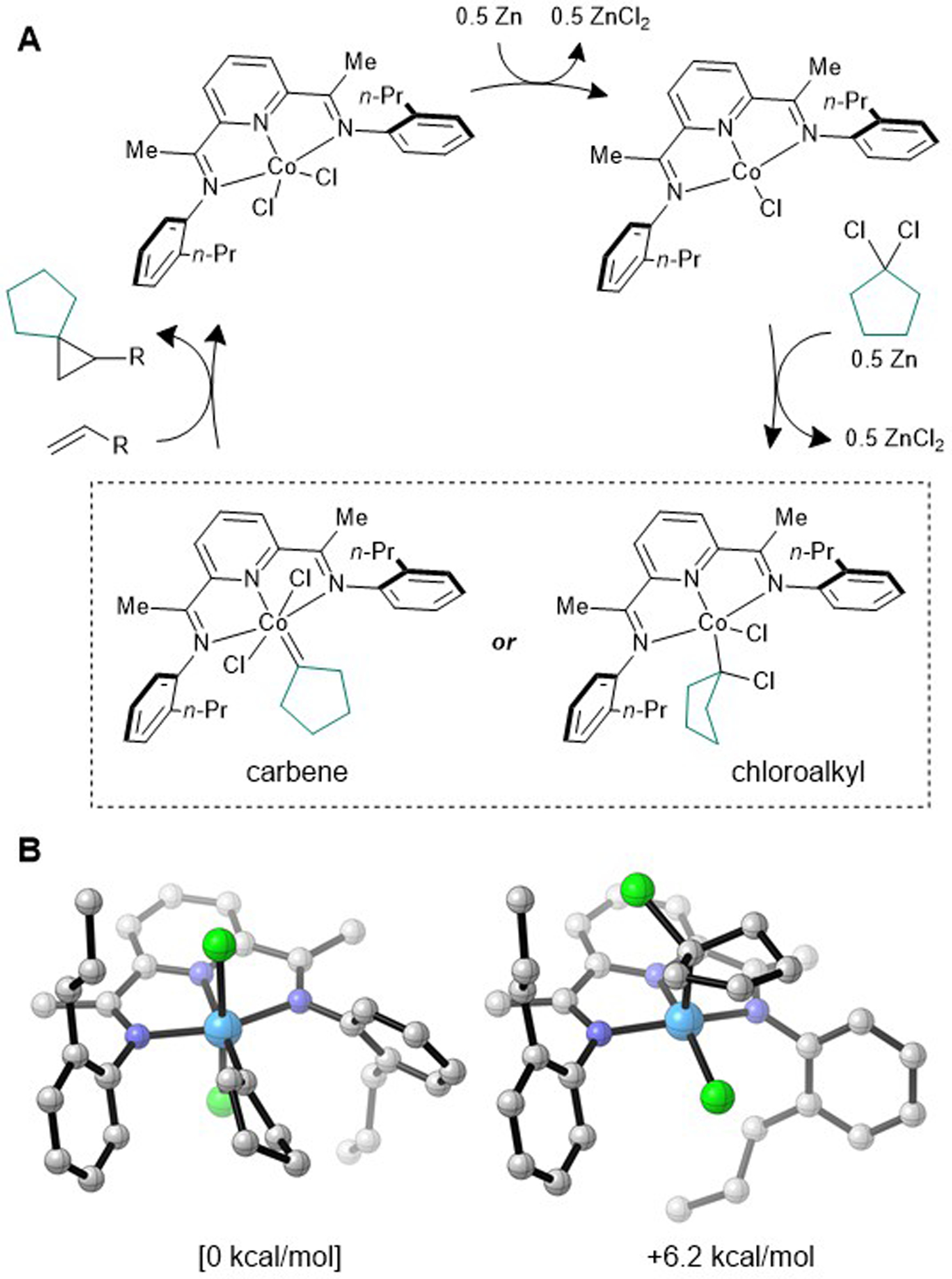

(a) Mechanistic possibilities for the cobalt-catalyzed spirocyclopropanation reaction. (b) Optimized geometries for isomeric Co(C5H8)Cl2 and Co(C5H8Cl)Cl complexes (S = 1/2, BP86/6–311G(d,p)/SMD(THF)//BP86-D3BJ/6–311G(d,p) level of DFT). Calculated relative energies are shown in kcal/mol.
See this image and copyright information in PMC

References

    1. Recent examples of spirocyclization reactions:

    2. Saito F, Trapp N, Bode JW, J. Am. Chem. Soc 2019, 141, 5544–5554; - PubMed
    3. Flodén NJ, Trowbridge A, Willcox D, Walton SM, Kim Y, Gaunt MJ, J. Am. Chem. Soc 2019, 141, 8426–8430; - PubMed
    4. Zhuo S, Zhu T, Zhou L, Mou C, Chai H, Lu Y, Pan L, Jin Z, Chi YR, Angew. Chem., Int. Ed 2019, 58, 1784–1788; - PubMed
    5. King TA, Stewart HL, Mortensen KT, North AJP, Sore HF, Spring DR, Eur. J. Org. Chem 2019, 2019, 5219–5229. - PMC - PubMed
    1. Lovering F, Bikker J, Humblet C, J. Med. Chem 2009, 52, 6752–6756. - PubMed
    1. Zheng Y, Tice CM, Singh SB, Bioorg. Med. Chem. Lett 2014, 24, 3673–3682; - PubMed
    2. Talele TT, J. Med. Chem 2016, 59, 8712–8756. - PubMed
    1. Ladd CL, Sustac Roman D, Charette AB, Org. Lett 2013, 15, 1350–1353. - PubMed
    1. Motherwell WB, Nutley CJ, Contemp. Org. Synth 1994, 1, 219–241;
    2. Charette AB, Beauchemin A, Org. React 2001, 58, 1–415.
