. 2020 Dec 4;20(1):315.
doi: 10.1186/s12893-020-00974-7.

Using ultrasound features and radiomics analysis to predict lymph node metastasis in patients with thyroid cancer

Fu Li  1 , Denghua Pan  2 , Yun He  2 , Yuquan Wu  2 , Jinbo Peng  2 , Jiehua Li  1 , Ye Wang  1 , Hong Yang  3 , Junqiang Chen  4
Affiliations

Using ultrasound features and radiomics analysis to predict lymph node metastasis in patients with thyroid cancer

Fu Li et al. BMC Surg. .

Abstract

Background: Lymph node metastasis (LNM) is an important factor for thyroid cancer patients' treatment and prognosis. The aim of this study was to explore the clinical value of ultrasound features and radiomics analysis in predicting LNM in thyroid cancer patients before surgery.

Methods: The characteristics of ultrasound images of 150 thyroid nodules were retrospectively analysed. All nodules were confirmed as thyroid cancer. Among the assessed patients, only one hundred and twenty-six patients underwent lymph node dissection. All patients underwent an ultrasound examination before surgery. In the radiomic analysis, the area of interest was identified from selected ultrasound images by using ITK-SNAP software. The radiomic features were extracted by using Ultrosomics software. Then, the data were classified into a training set and a validation set. Hypothetical tests and bagging were used to build the model. The diagnostic performance of different ultrasound features was assessed, a radiomic analysis was conducted, and a receiver operating characteristic (ROC) curve analysis was performed to explore the diagnostic accuracy.

Results: Regarding the prediction of LNM, the ROC curves showed that the area under the curve (AUC) values of an irregular shape and microcalcification were 0.591 (P = 0.059) and 0.629 (P = 0.007), respectively. In the radiomics analysis, in the training set, the AUC value of LNM was 0.759, with a sensitivity of 0.90 and a specificity of 0.860. In the verification set, the AUC was 0.803, with a sensitivity of 0.727 and a specificity of 0.800.

Conclusions: Microcalcification and an irregular shape are predictors of LNM in thyroid carcinoma patients. In addition, radiomics analysis has promising value in screening meaningful ultrasound features in thyroid cancer patients with LNM. Therefore, the prediction of LNM based on ultrasound features and radiomic features is useful for making appropriate decisions regarding surgery and interventions before thyroid carcinoma surgery.

Keywords: Lymph node metastasis; Radiomic analysis; Thyroid carcinoma; Ultrasound.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1

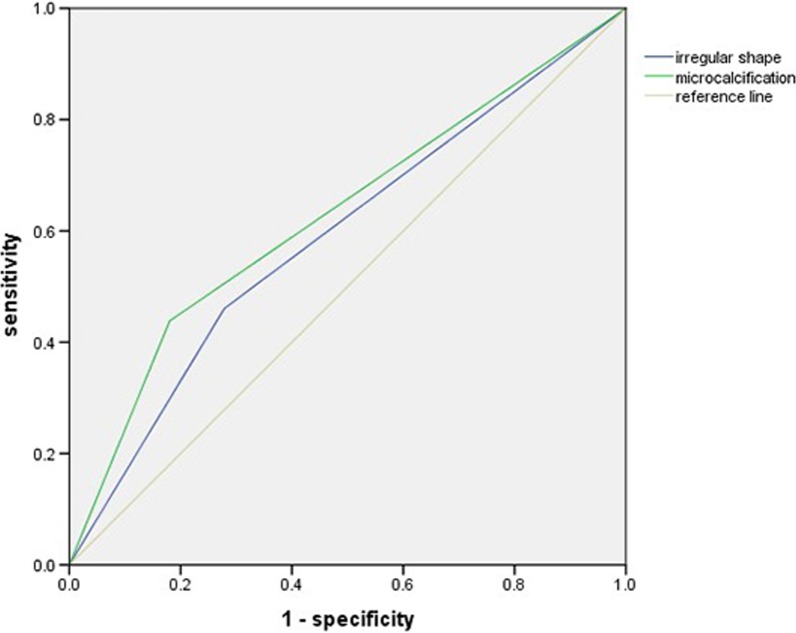

ROC curve analysis of the ultrasound characteristics of LNM in thyroid cancer patients. The AUC values of an irregular shape and microcalcification were 0.591 (P = 0.059) and 0.629 (P = 0.007), respectively
Fig. 2
Fig. 2

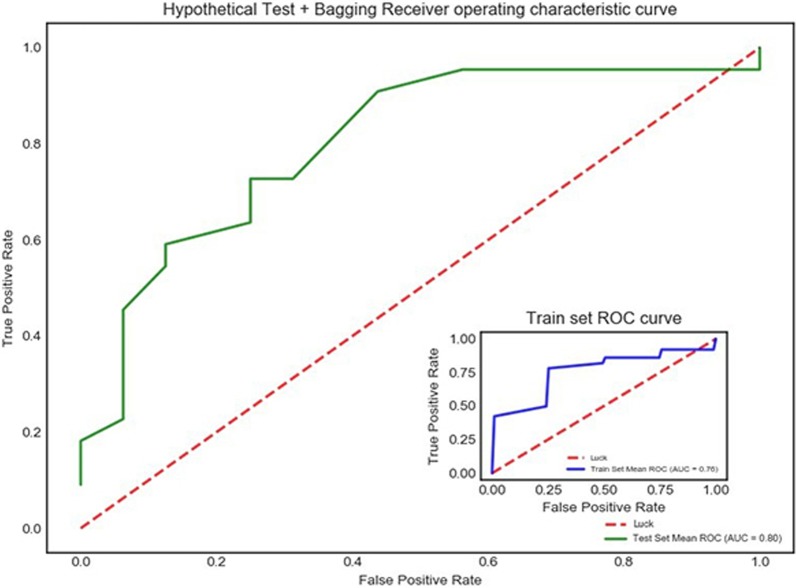

ROC curve analysis of the radiomics analysis of LNM in thyroid cancer patients. In the training set, the AUC value of LNM was 0.759. In the validation set, the AUC was 0.803
See this image and copyright information in PMC

References

    1. Hundahl SA, Fleming ID, Fremgen AM, Menck HR: A National Cancer Data Base report on 53,856 cases of thyroid carcinoma treated in the U.S., 1985–1995 [see commetns]. Cancer 1998, 83(12):2638–2648. - PubMed
    1. Choi YJ, Yun JS, Kook SH, Jung EC, Park YL. Clinical and imaging assessment of cervical lymph node metastasis in papillary thyroid carcinomas. World J Surg. 2010;34(7):1494–1499. doi: 10.1007/s00268-010-0541-1. - DOI - PubMed
    1. Machens A, Hinze R, Thomusch O, Dralle H. Pattern of nodal metastasis for primary and reoperative thyroid cancer. World J Surg. 2002;26(1):22–28. doi: 10.1007/s00268-001-0176-3. - DOI - PubMed
    1. Zheng CM, Ji YB, Song CM, Ge MH, Tae K. Number of metastatic lymph nodes and ratio of metastatic lymph nodes to total number of retrieved lymph nodes are risk factors for recurrence in patients with clinically node negative papillary thyroid carcinoma. Clin Exp Otorhinolaryngol. 2018;11(1):58–64. doi: 10.21053/ceo.2017.00472. - DOI - PMC - PubMed
    1. Maksimovic S, Jakovljevic B, Gojkovic Z. Lymph node metastases papillary thyroid carcinoma and their importance in recurrence of disease. Med Arch. 2018;72(2):108–111. doi: 10.5455/medarh.2018.72.108-111. - DOI - PMC - PubMed
