Case Reports
. 2020 Sep 11;32(3):410-414.
doi: 10.37616/2212-5043.1199. eCollection 2020.

Subaortic Membrane and Patent Ductus Arteriosus in Rare Association-Case Series

Hussain Moafa  1 , Mohammed Alnasef  1 , Obayda M Diraneyya  1 , F Alhabshan  1   2   3
Affiliations
Case Reports

Subaortic Membrane and Patent Ductus Arteriosus in Rare Association-Case Series

Hussain Moafa et al. J Saudi Heart Assoc. .

Abstract

Background: The combination of subaortic membrane (SAM) and patent ductus arteriosus is very rare. Subaortic stenosis is the second most common form of left ventricular outflow tract (LVOT) obstruction after valvular aortic stenosis. We are reporting the largest case series of SAM and PDA.

Methods: We included all patients that were diagnosed with the combination of SAM and PDA at our cardiac center. We have reviewed patients echocardiographic studies, cardiac catheterizations, surgical notes and all the outpatients notes.

Results: We have a total of 7 patients. The age at presentation was in the early childhood with 3 patients diagnosed in infancy. Four patients had severe and moderate LVOT obstruction with SAM being very close to the aortic valve and all required surgical intervention. The last three patients had mild LVOT obstruction 2 of them with the SAM being > 4mm away from the aortic valve. Six out of the seven patients had intervention while the last one is under clinical follow up currently. PDA closure did not change the outcome. There were no other postoperative complication like developing new AI or developing complete heart block. There was no relation between gender, height, weight or age at diagnosis to the SAM clinical course.

Conclusion: SAM and PDA association is very rare. The underlying pathophysiology is not well understood. When the SAM is closer to aortic valve (≤ 4mm), it carries higher risk of progressive LVOT obstruction. The interventions for SAM and PDA were safe procedures.

Keywords: Left ventricular outflow tract obstruction; Patent ductus arteriosus; Subaortic membrane.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

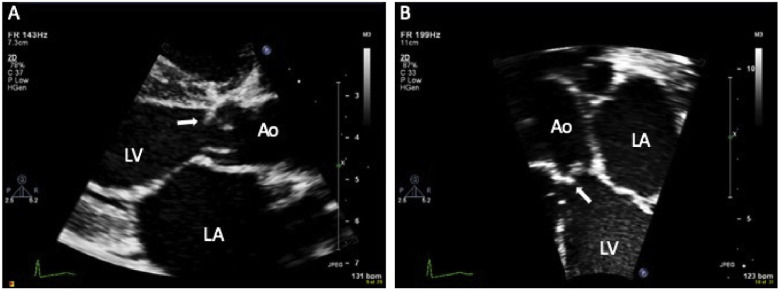

A: LVOT parasternal long axis showing SAM close to aortic valve. B; Apical 5 chambers view showing SAM close to aortic valve for the same patient. Ao: Aorta, LA: Left atrium, LV: Left ventricle. Arrow: SAM.
Fig. 2
Fig. 2
A: LVOT parasternal long axis showing SAM away from aortic valve. B: Apical 5 chambers view with color compare showing SAM away from aortic valve. Ao: Aorta, LA: Left atrium, LV: Left ventricle. Arrow: SAM.
See this image and copyright information in PMC

References

    1. Kitchiner D, Jackson M, Malaiya N, Walsh K, Peart I, Arnold R. Incidence and prognosis of obstruction of the left ventricular outflow tract in Liverpool (1960-91) a study of 313 patients. 6, s.l. Heart. 1994;71 doi: 10.1136/hrt.72.3.268. - DOI - PMC - PubMed
    1. Edgar A, Newfeld, Alexander J, Muster, Paul Milton H, Farouk S, et al. Discrete subvalvular aortic stenosis in childhood: study of 51 patients. 1, s.l. Am J Cardiol. 1967;38 doi: 10.1016/0002-9149(76)90062-X. - DOI - PubMed
    1. Mulla S, Siddqui WJ. Subaortic stenosis. Florida: StatPearls; 2019. https://www.ncbi.nlm.nih.gov/books/NBK526085. - PubMed
    1. Leichter Donald A, Sullivan Ian Gersony, Welton M. Acquired discrete subvalvular aortic stenosis: natural history and hemodynamics. 6, s.l. J Am Coll Cardiol. 1989:14. https://.org/10.1016/0735-1097(89)90395-1. - DOI - PubMed
    1. Laurel Steinherz, Ehlers Kathryn H, Levin Aaron R, Allen Engle Mary. Membranous subaortic stenosis and patent ductus arteriosus. 3, s.l. Chest. 1977;72 doi: 10.1378/chest.72.3.333. - DOI - PubMed
