. 2020 Dec 15;16(12):128.
doi: 10.1007/s11306-020-01741-8.

Method comparison of HPLC-ninhydrin-photometry and UHPLC-PITC-tandem mass spectrometry for serum amino acid analyses in patients with complex congenital heart disease and controls

Miriam Michel  1   2 , Christina Salvador  3 , Verena Wiedemair  4 , Mark Gordian Adam  5 , Kai Thorsten Laser  2 , Karl-Otto Dubowy  2 , Andreas Entenmann  3 , Daniela Karall  3 , Ralf Geiger  1 , Manuela Zlamy  6 , Sabine Scholl-Bürgi  3
Affiliations

Method comparison of HPLC-ninhydrin-photometry and UHPLC-PITC-tandem mass spectrometry for serum amino acid analyses in patients with complex congenital heart disease and controls

Miriam Michel et al. Metabolomics. .

Abstract

Introduction: Metabolomics studies are not routine when quantifying amino acids (AA) in congenital heart disease (CHD).

Objectives: Comparative analysis of 24 AA in serum by traditional high-performance liquid chromatography (HPLC) based on ion exchange and ninhydrin derivatisation followed by photometry (PM) with ultra-high-performance liquid chromatography and phenylisothiocyanate derivatisation followed by tandem mass spectrometry (TMS); interpretation of findings in CHD patients and controls.

Methods: PM: Sample analysis as above (total run time, ~ 119 min). TMS: Sample analysis by AbsoluteIDQ® p180 kit assay (BIOCRATES Life Sciences AG, Innsbruck, Austria), which employs PITC derivatisation; separation of analytes on a Waters Acquity UHPLC BEH18 C18 reversed-phase column, using water and acetonitrile with 0.1% formic acid as the mobile phases; and quantification on a Triple-Stage Quadrupole tandem mass spectrometer (Thermo Fisher Scientific, Waltham, MA) with electrospray ionisation in the presence of internal standards (total run time, ~ 8 min). Calculation of coefficients of variation (CV) (for precision), intra- and interday accuracies, limits of detection (LOD), limits of quantification (LOQ), and mean concentrations.

Results: Both methods yielded acceptable results with regard to precision (CV < 10% PM, < 20% TMS), accuracies (< 10% PM, < 34% TMS), LOD, and LOQ. For both Fontan patients and controls AA concentrations differed significantly between methods, but patterns yielded overall were parallel.

Conclusion: Serum AA concentrations differ with analytical methods but both methods are suitable for AA pattern recognition. TMS is a time-saving alternative to traditional PM under physiological conditions as well as in patients with CHD.

Trial registration number: ClinicalTrials.gov Identifier NCT03886935, date of registration March 27th, 2019 (retrospectively registered).

Keywords: Amino acid metabolism; Congenital heart disease; Fontan; Metabolomics; Pattern recognition; Tandem mass spectrometry.

PubMed Disclaimer

Conflict of interest statement

All authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1
Amino acid serum concentrations (means and standard deviations) by client group (Fontan vs. control) and method (PM vs. TMS). White boxes: controls, PM; white boxes with black stripes: controls, TMS; grey boxes: Fontan patients, PM; black boxes: Fontan patients, TMS. Ala, alanine; alpha.AAA, alpha-aminoadipic acid; Arg, arginine; Asn, asparagine; Asp, aspartic acid; Cit, citrulline; Gln, glutamine; Glu, glutamic acid; Gly, glycine; His, histidine; OH-Pro, hydroxyproline; Ile, isoleucine; Leu, leucine; Lys, lysine; Met, methionine; Orn, ornithine; Phe, phenylalanine; Pro, proline; Ser, serine; Tau, taurine; Thr, threonine; Trp, tryptophan; Tyr, tyrosine; Val, valine
Fig. 2
Fig. 2
Bland–Altman-plot comparing serum concentrations of analytes in Fontan patients determined by PM with those determined by TMS. Diff, difference; LOA, limit of agreement. LOA indicates 95% LOA
Fig. 3
Fig. 3

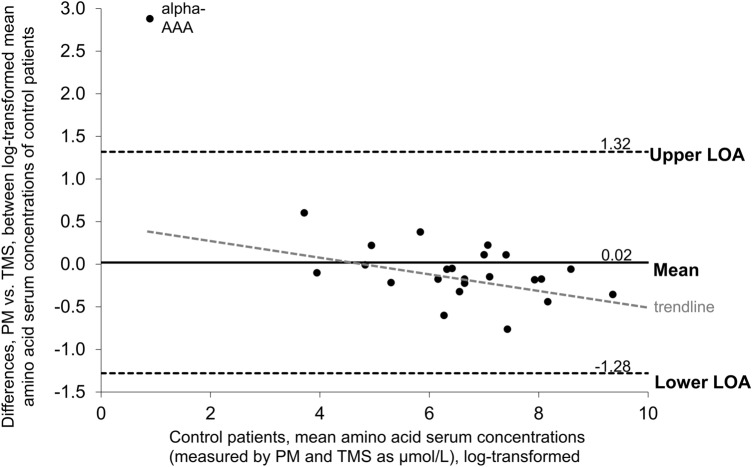

Bland–Altman-plot comparing serum concentrations of analytes in controls determined by PM with those determined by TMS. Diff, difference; LOA, limit of agreement. LOA indicates 95% LOA
See this image and copyright information in PMC

References

    1. Alexander D, Lombardi R, Rodriguez G, Mitchell MM, Marian AJ. Metabolomic distinction and insights into the pathogenesis of human primary dilated cardiomyopathy. European Journal of Clinical Investigation. 2011;41(5):527–538. doi: 10.1111/j.1365-2362.2010.02441.x. - DOI - PMC - PubMed
    1. Ang JE, Pandher R, Ang JC, Asad YJ, Henley AT, Valenti M, et al. Plasma metabolomic changes following PI3K inhibition as pharmacodynamic biomarkers: Preclinical discovery to phase I trial evaluation. Molecular Cancer Therapeutics. 2016;15(6):1412–1424. doi: 10.1158/1535-7163.MCT-15-0815. - DOI - PMC - PubMed
    1. Anton G, Wilson R, Yu ZH, Prehn C, Zukunft S, Adamski J, et al. Pre-analytical sample quality: metabolite ratios as an intrinsic marker for prolonged room temperature exposure of serum samples. PLoS ONE. 2015;10(3):e0121495. doi: 10.1371/journal.pone.0121495. - DOI - PMC - PubMed
    1. Benjamini Y, Hochberg Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. The Journal of the Royal Statistical Society (Series B) 1995;57(1):289–300.
    1. Chong YK, Ho CC, Leung SY, Lau SKP, Woo PCY. Clinical mass spectrometry in the bioinformatics era: A hitchhiker's guide. Computational and Structural Biotechnology Journal. 2018;16:316–334. doi: 10.1016/j.csbj.2018.08.003. - DOI - PMC - PubMed
