Deep learning model for classifying endometrial lesions

Abstract

Background: Hysteroscopy is a commonly used technique for diagnosing endometrial lesions. It is essential to develop an objective model to aid clinicians in lesion diagnosis, as each type of lesion has a distinct treatment, and judgments of hysteroscopists are relatively subjective. This study constructs a convolutional neural network model that can automatically classify endometrial lesions using hysteroscopic images as input.

Methods: All histopathologically confirmed endometrial lesion images were obtained from the Shengjing Hospital of China Medical University, including endometrial hyperplasia without atypia, atypical hyperplasia, endometrial cancer, endometrial polyps, and submucous myomas. The study included 1851 images from 454 patients. After the images were preprocessed (histogram equalization, addition of noise, rotations, and flips), a training set of 6478 images was input into a tuned VGGNet-16 model; 250 images were used as the test set to evaluate the model's performance. Thereafter, we compared the model's results with the diagnosis of gynecologists.

Results: The overall accuracy of the VGGNet-16 model in classifying endometrial lesions is 80.8%. Its sensitivity to endometrial hyperplasia without atypia, atypical hyperplasia, endometrial cancer, endometrial polyp, and submucous myoma is 84.0%, 68.0%, 78.0%, 94.0%, and 80.0%, respectively; for these diagnoses, the model's specificity is 92.5%, 95.5%, 96.5%, 95.0%, and 96.5%, respectively. When classifying lesions as benign or as premalignant/malignant, the VGGNet-16 model's accuracy, sensitivity, and specificity are 90.8%, 83.0%, and 96.0%, respectively. The diagnostic performance of the VGGNet-16 model is slightly better than that of the three gynecologists in both classification tasks. With the aid of the model, the overall accuracy of the diagnosis of endometrial lesions by gynecologists can be improved.

Conclusions: The VGGNet-16 model performs well in classifying endometrial lesions from hysteroscopic images and can provide objective diagnostic evidence for hysteroscopists.

Keywords: Computer-aided diagnosis; Convolutional neural network; Endometrial lesion; Hysteroscopy; VGGNet.

Fig. 1

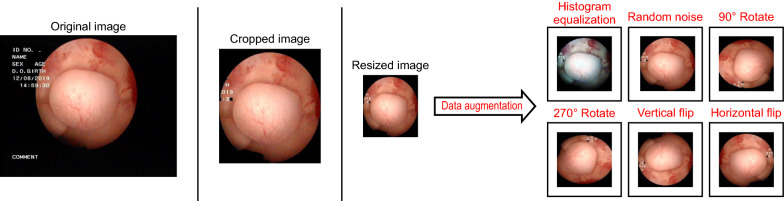

Example of image preprocessing. We first cropped and resized all images in the dataset. Then, we augmented the resized training set to increase the amount of data, allowing us to improve the model’s generalization ability and robustness

Fig. 2

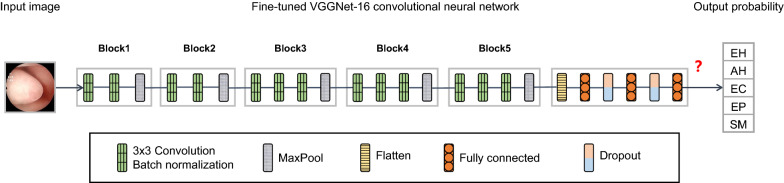

Structure of the fine-tuned VGGNet-16 model. Our network structure is a tuned VGGNet-16 model. The data stream flows from left to right, and the cross-entropy loss is calculated from the prediction results of each category and their corresponding probabilities. The model iterates repeatedly to reduce the loss value, thereby improving its accuracy

Fig. 3

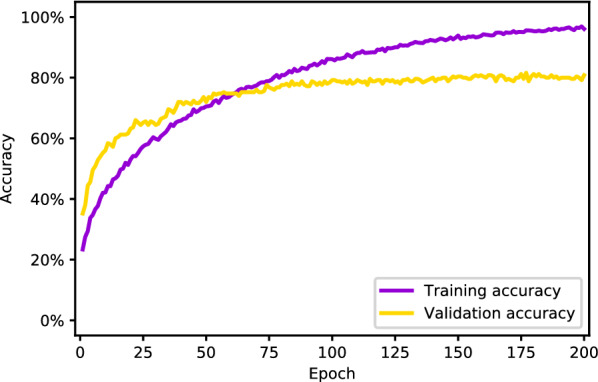

Training and validation accuracy by training epochs of VGGNet-16 convolutional neural network. During training, the overall accuracy of the model on the training and validation sets increases as the model iterates. The model’s performance plateaus on the training and validation sets at epochs 190 and 90, respectively

Fig. 4

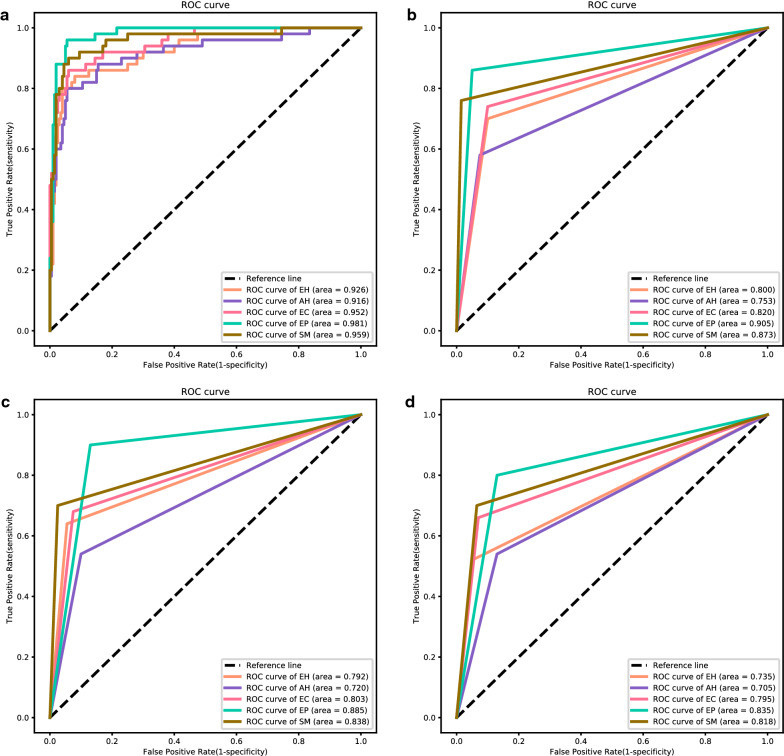

Five-category ROC curves of the VGGNet-16 model and gynecologists. Five-category receiver operating characteristic (ROC) curves: a, b, c, and d are the ROC curves of VGGNet-16 and gynecologists 1, 2, and 3, respectively. AH atypical hyperplasia, EC endometrial cancer, EH endometrial hyperplasia without atypia, EP endometrial polyp, SM submucous myoma

Fig. 5

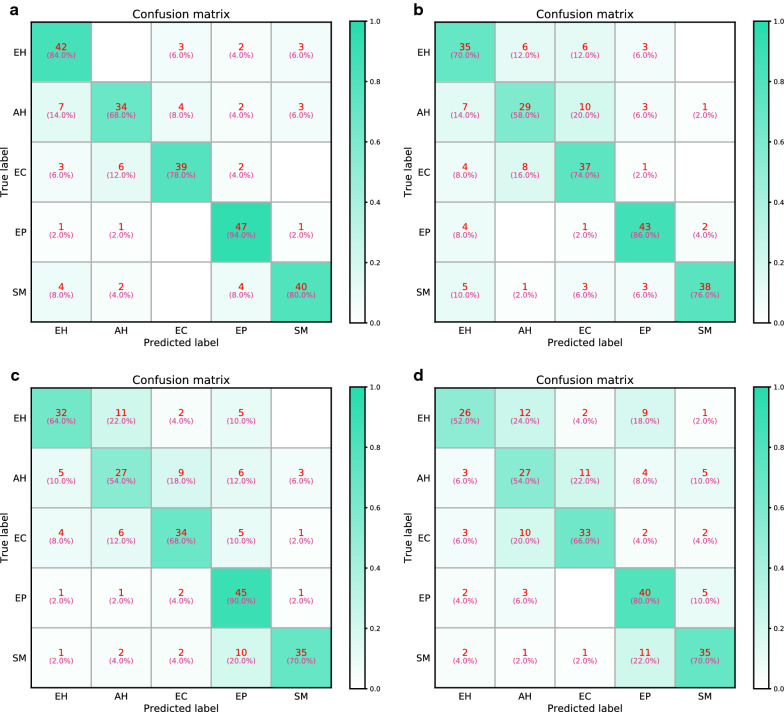

Confusion matrices of the VGGNet-16 model and gynecologists. Confusion matrices: a, b, c, and d are the confusion matrices of the VGGNet-16 model and gynecologists 1, 2, and 3 in classifying the test set, respectively. The x axes are the predicted labels, which are the diagnoses made by the model or gynecologists. The y axes are the true labels, which is the histopathological result. The number in each small square represents the corresponding number of images with the same predicted true label and its percentage of the total number of images under the true label. AH atypical hyperplasia, EC endometrial cancer, EH endometrial hyperplasia without atypia, EP endometrial polyp, SM submucous myoma

Fig. 6

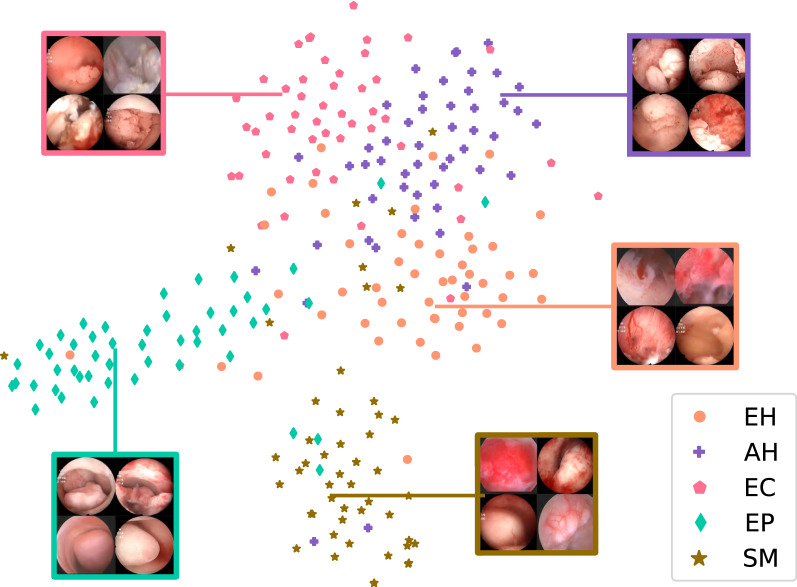

Dimension-reduced scatter plot of the last fully connected layer of the VGGNet-16 model. We output the 512-dimensional data of all images in the test set at the last fully connected layer of the optimal model and applied the t-SNE algorithm to reduce the data to two dimensions and show them in a scatter plot, along with some example images. AH atypical hyperplasia, EC endometrial cancer, EH endometrial hyperplasia without atypia, EP endometrial polyps, SM submucous myoma

Fig. 7

Feature heatmaps of a submucous myoma image output by the VGGNet-16 model. The sum feature maps output by each convolutional layer, batch normalization layer, and MaxPool layer of the VGGNet-16 model for a submucous myoma image in the test set were up-sampled and superimposed on the original image and displayed as feature heatmaps

Fig. 8

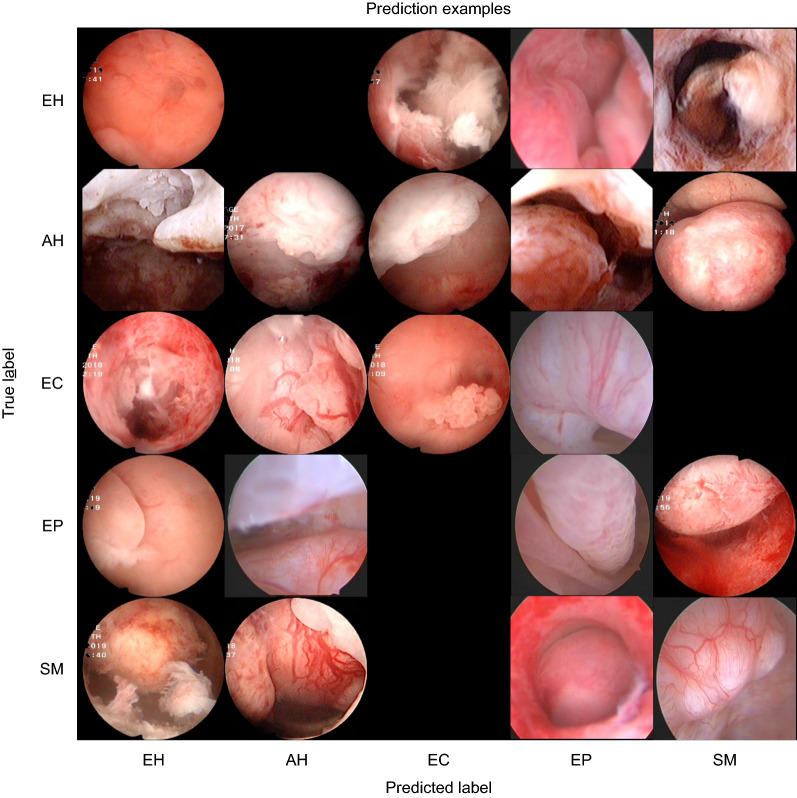

Example classification results output by the VGGNet-16 model. The x axis is the predicted label of the model’s output and the y axis is the histopathology result of these images. AH atypical hyperplasia, EC endometrial cancer, EH endometrial hyperplasia without atypia, EP endometrial polyp, SM submucous myoma

Fig. 9

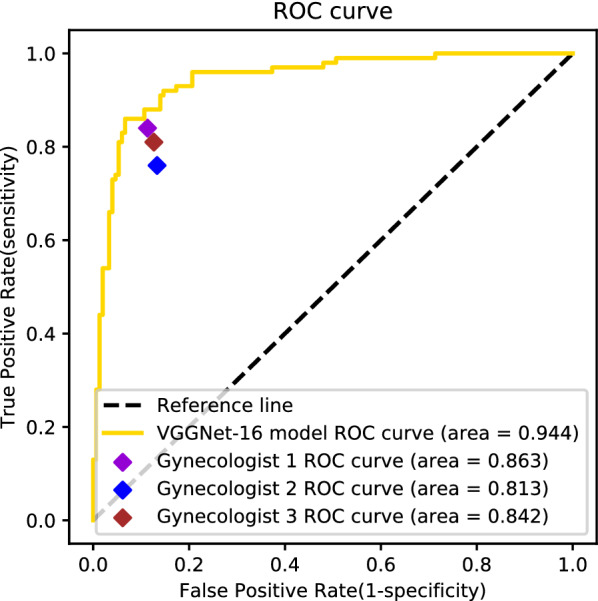

Binary ROC curves of the VGGNet-16 model and gynecologists. Binary receiver operating characteristic (ROC) curves for classifying lesions as premalignant/malignant or benign. The model curve is shown as a gold line and the curves for gynecologists 1, 2, and 3 are marked with purple, blue, and scarlet diamonds, respectively
