An assistive computer vision tool to automatically detect changes in fish behavior in response to ambient odor

Abstract

The analysis of fish behavior in response to odor stimulation is a crucial component of the general study of cross-modal sensory integration in vertebrates. In zebrafish, the centrifugal pathway runs between the olfactory bulb and the neural retina, originating at the terminalis neuron in the olfactory bulb. Any changes in the ambient odor of a fish's environment warrant a change in visual sensitivity and can trigger mating-like behavior in males due to increased GnRH signaling in the terminalis neuron. Behavioral experiments to study this phenomenon are commonly conducted in a controlled environment where a video of the fish is recorded over time before and after the application of chemicals to the water. Given the subtleties of behavioral change, trained biologists are currently required to annotate such videos as part of a study. This process of manually analyzing the videos is time-consuming, requires multiple experts to avoid human error/bias and cannot be easily crowdsourced on the Internet. Machine learning algorithms from computer vision, on the other hand, have proven to be effective for video annotation tasks because they are fast, accurate, and, if designed properly, can be less biased than humans. In this work, we propose to automate the entire process of analyzing videos of behavior changes in zebrafish by using tools from computer vision, relying on minimal expert supervision. The overall objective of this work is to create a generalized tool to predict animal behaviors from videos using state-of-the-art deep learning models, with the dual goal of advancing understanding in biology and engineering a more robust and powerful artificial information processing system for biologists.

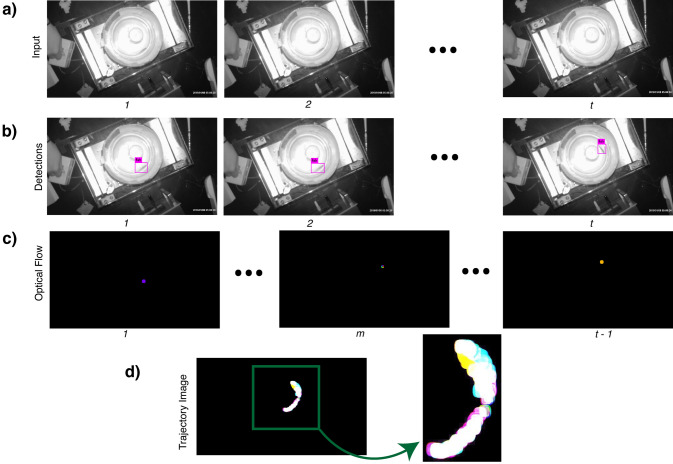

Figure 1

Process used to generate a trajectory image from experimental data. This figure illustrates the first two steps, fish detection and tracking, of the software pipeline that forms the proposed tool. The process includes (a) Selection of raw input video frames; (b) automatic detection of a fish within each video frame; (c) tracking of the fish via optical flow; (d) creation of a trajectory image combining the optical flow output of the video frames, which is provided to an autoencoder for compression. We use the latent representation from the autoencoder for classification. That process is shown in Fig. 2. The numbers $1,2,\dots ,t$ just beneath the images stand for different timestamps of the video frames. Since the optical flow algorithm operates on two consecutive frames, the total number of frames after processing by the algorithm is $t-1$.

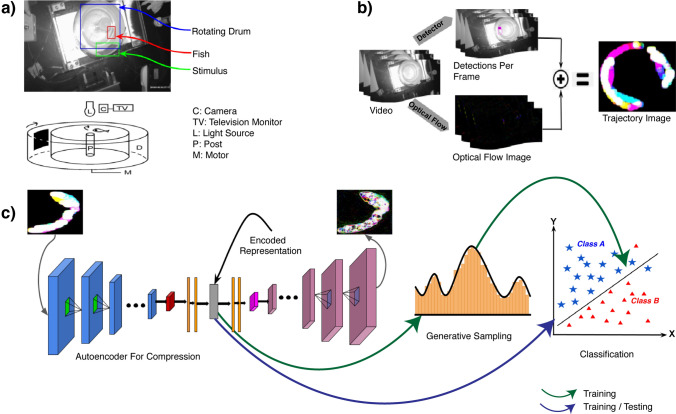

Figure 2

An overview of the behavioral experiments and tool to analyze them. (a) Experimental setup for recording behavioral visual sensitivity in zebrafish in response to olfactory and TN stimulation. The drum rotation in the lower diagram is clockwise, and the direction of the swimming fish is initially counterclockwise. The fish displayed escape responses to the approach of the black segment. Upon the black segment coming into view, a fish will immediately turn and swim away (in the clockwise direction in this example). Abbreviations used in the lower diagram: C, camera; D, rotating drum; L, light source; M, motor; P, post; TV, television monitor. (b) The process for generating trajectory images for zebrafish from videos. This shows how the first two steps of the overall pipeline (see Fig. 1) are combined to form a trajectory image. We use automatically detected regions of interest to create a mask for the fish such that only the pixels representing the fish in the tank are illuminated for dense optical flow estimation. All the frames are combined thereafter to generate a single trajectory image for the entire video. (c) Data compression using autoencoders, generative sampling and a binary classifier for behavior analysis for fish. This shows how the remaining three steps of the overall pipeline fit together. Since the raw features from the trajectory images can be high-dimensional, we use compression via autoencoders to limit the dimensionality of trajectory images. The encoded representations can be used as-is for classifier training and testing, or as priors for generative sampling before training a classifier.
