Color-coded summation images in the evaluation of renal artery stenosis before and after percutaneous transluminal angioplasty

Abstract

Background: Endovascular therapy is the gold standard in patients with hemodynamic relevant renal artery stenosis (RAS) resistant to medical therapy. The severity grading of the stenosis as well as the result assessment after endovascular approach is predominantly based on visible estimations of the anatomic appearance. We aim to investigate the application of color-coded DSA parameters to gain hemodynamic information during endovascular renal artery interventions and for the assessment of the procedures´ technical success.

Methods: We retrospectively evaluated 32 patients who underwent endovascular renal artery revascularization and applied color-coded summation imaging on selected monochromatic DSA images. The differences in time to peak (dTTP) of contrast enhancement in predefined anatomical measuring points were analyzed. Furthermore, differences in systolic blood pressure values (SBP) and serum creatinine were obtained. The value of underlying diabetes mellitus as a predictor for clinical outcome was assessed. Correlation analysis between the patients´ gender as well as the presence of diabetes mellitus and dTTP was performed.

Results: Endovascular revascularization resulted in statistically significant improvement in 4/7 regions of interest. Highly significant improvement of perfusion in terms of shortened TTP values could be found at the segmental artery level and in the intrastenotical segment (p < 0.001), significant improvement prestenotical and in the apical renal parenchyma (p < 0.05). In the other anatomic regions, differences revealed not to be significant. Differences between SBP and serum creatinine levels before and after the procedure were significant (p = 0.004 and 0.0004). Patients´ gender as well as the presence of diabetes mellitus did not reveal to be predictors for the clinical success of the procedure. Furthermore, diabetes and gender did not show relevant correlation with dTTP in the parenchymal measuring points.

Conclusions: The supplementary use of color-coding DSA and the data gained from parametric images may provide helpful information in the evaluation of the procedures´ technical success. The segmental artery might be a particularly suitable vascular territory for analyzing differences in blood flow characteristics. Further studies with larger cohorts are needed to further confirm the diagnostic value of this technique.

Keywords: Color-coded; Digital subtraction angiography; Endovascular; PTA; Renal artery.

Fig. 1

Monochromatic and corresponding color-coded images before and after renal artery revascularization. A Selective angiography of the right renal artery demonstrates significant proximal atherosclerotic stenosis. B Corresponding parametric image with TTP values in the predefined regions of interest (ROIs; A = prestenotic, B = intralesional, C = poststenotic, D = segmental artery of first order at the caudal pole, E = apical renal parenchyma, F = renal parenchyma at the level of hilus, G = renal parenchyma at the caudal pole. C After PTA and stent implantation monochromatic DSA does not reveal residual stenosis. D Color-coded summation image with the same ROIs demonstrates accelerated blood flow within the renal artery close to the former stenosis and within the segmental artery of first order at the caudal pole. Warmer color gradient also indicates better blood supply to the kidney

Fig. 2

Monochromatic and color-coded DSA images before and after PTA with stent implantation. a Selective angiography of the right renal artery shows ostial stenosis. b Corresponding color-coded image reveals a slight color-inhomogeneity within the proximal renal artery, indicating relevant flow-limitation. c After PTA and stent implantation monochromatic DSA does not reveal any residual stenosis. d Corresponding parametric DSA shows homogenous color-coding within the renal artery after stenting and a warmer color-gradient, indicating improved blood flow

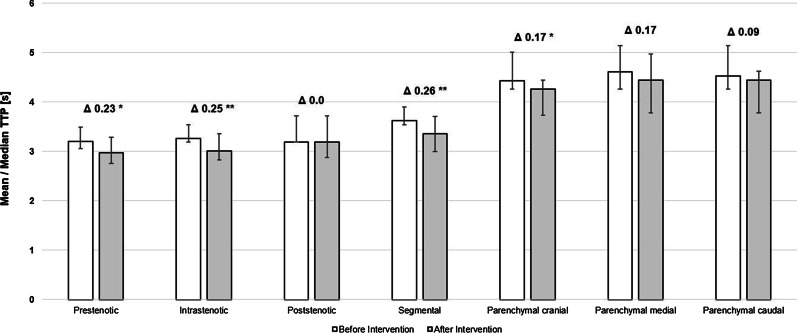

Fig. 3

Mean and median TTP before and after endovascular revascularization including the 25/75% quantile, dTTP and its statistical significance (p < 0.05*; p < 0.01**; p < 0.001***)

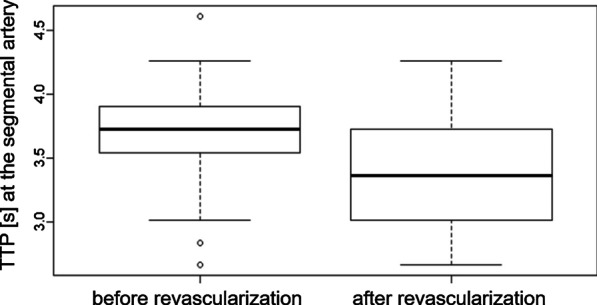

Fig. 4

PTT in seconds before and after revascularization of the renal artery at the level of the segmental artery

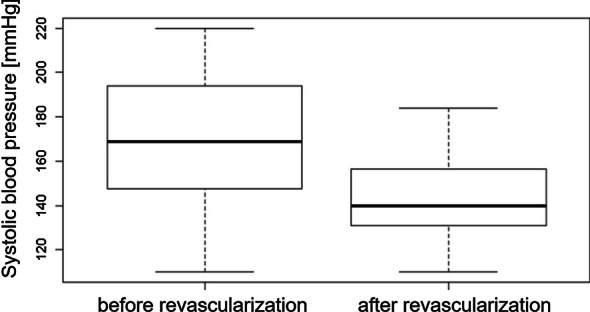

Fig. 5

Systolic blood pressure values (mmHg) before and after endovascular treatment of the renal artery stenosis
