Review
. 2021 Jan;10(1):15-27.
doi: 10.21037/acs-2020-mv-18.

Over 15 years: the advancement of transcatheter mitral valve repair

Paolo Denti  1 , Alessandra Sala  1 , Igor Belluschi  1 , Ottavio Alfieri  1
Affiliations
Review

Over 15 years: the advancement of transcatheter mitral valve repair

Paolo Denti et al. Ann Cardiothorac Surg. 2021 Jan.

Abstract

Patients with severe symptomatic mitral regurgitation, if left untreated, have a poor prognosis. In those patients not eligible for mitral valve (MV) surgery, percutaneous repair may improve clinical outcomes. In the past 15 years several devices have been developed to address different MV lesions. This manuscript will review the advancement of transcatheter MV repair through the years, focusing on technologies for which consistent clinical data is available.

Keywords: MV repair; Mitral regurgitation; mitral valve (MV); transcatheter MV repair.

PubMed Disclaimer

Conflict of interest statement

Conflicts of Interest: The authors have no conflicts of interest to declare.

Figures

Figure 1
Figure 1
Timeline of the evolving technologies for transcatheter treatment of mitral valve regurgitation.
Figure 2
Figure 2
Transcatheter mitral valve repair devices addressing leaflet pathology. (A) MitraClip device; (B) difference between NTR and XTR generations; (C) newer 4th generation MitraClip, available in four sizes; (D) PASCAL device; (E) PASCAL device with two larger paddles and central spacer.
Figure 3
Figure 3
Indirect annuloplasty devices. (A,B) CARILLON Mitral Contour System; (C) MVRx ARTO (arrows); (D) Mitral Loop Cerclage (arrows).
Figure 4
Figure 4

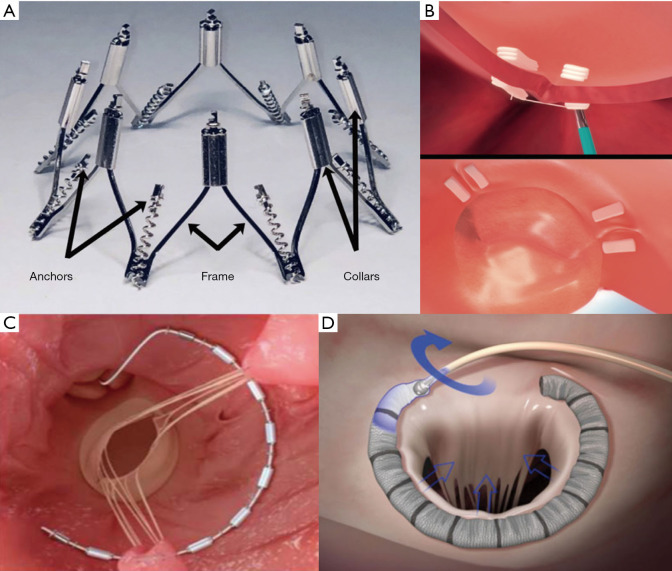

Direct annuloplasty devices. (A) Millipede IRIS Ring; (B) Mitralign annuloplasty system; (C) AccuCinch Ventricular Repair device; (D) Cardioband device.
Figure 5
Figure 5
Chordal Replacement devices. (A) NeoChord System; (B) HARPOON Medical system.
Video
Video
Over 15 years: the advancement of transcatheter mitral valve repair.
See this image and copyright information in PMC

References

    1. Nkomo VT, Gardin JM, Skelton TN, et al. Burden of valvular heart diseases: a population-based study. Lancet 2006;368:1005-11. 10.1016/S0140-6736(06)69208-8 - DOI - PubMed
    1. Iung B, Baron G, Butchart EG, et al. A prospective survey of patients with valvular heart disease in Europe: The Euro Heart Survey on valvular heart disease. Eur Heart J 2003;24:1231-43. 10.1016/S0195-668X(03)00201-X - DOI - PubMed
    1. Goel SS, Bajaj N, Aggarwal B, et al. Prevalence and outcomes of unoperated patients with severe symptomatic mitral regurgitation and heart failure: Comprehensive analysis to determine the potential role of mitraclip for this unmet need. J Am Coll Cardiol 2014;63:185-6. 10.1016/j.jacc.2013.08.723 - DOI - PubMed
    1. Asgar AW, Mack MJ, Stone GW. Secondary mitral regurgitation in heart failure: Pathophysiology, prognosis, and therapeutic considerations. J Am Coll Cardiol 2015;65:1231-48. 10.1016/j.jacc.2015.02.009 - DOI - PubMed
    1. Nishimura RA, Otto CM, Bonow RO, et al. 2017 AHA/ACC Focused update of the 2014 AHA/ACC guideline for the management of patients with valvular heart disease. Circulation 2017;135:e1159-95. 10.1161/CIR.0000000000000503 - DOI - PubMed
