Semaphorin 3fa Controls Ocular Vascularization From the Embryo Through to the Adult

Abstract

Purpose: Pathological blood vessel growth in the eye is implicated in several diseases that result in vision loss, including age-related macular degeneration and diabetic retinopathy. The limits of current disease therapies have created the need to identify and characterize new antiangiogenic drugs. Here, we identify the secreted chemorepellent semaphorin-3fa (Sema3fa) as an endogenous anti-angiogenic in the eye.

Methods: We generated a CRISPR/Cas9 sema3fa zebrafish mutant line, sema3faca304/304. We assessed the retinal and choroidal vasculature in both larval and adult wild-type and sema3fa mutant zebrafish.

Results: We find sema3fa mRNA is expressed by the ciliary marginal zone, neural retina, and retinal pigment epithelium of zebrafish larvae as choroidal vascularization emerges and the hyaloid/retinal vasculature is remodeled. The hyaloid vessels of sema3fa mutants develop appropriately but fail to remodel during the larval period, with adult mutants exhibiting a denser network of capillaries in the retinal periphery than seen in wild-type. The choroid vasculature is also defective in that it develops precociously, and aberrant, leaky sprouts are present in the normally avascular outer retina of both sema3faca304/304 larvae and adult fish.

Conclusions: Sema3fa is a key endogenous signal for maintaining an avascular retina and preventing pathologic vascularization. Furthermore, we provide a new experimentally accessible model for studying choroid neovascularization (CNV) resulting from primary changes in the retinal environment that lead to downstream vessel infiltration.

Figure 1.

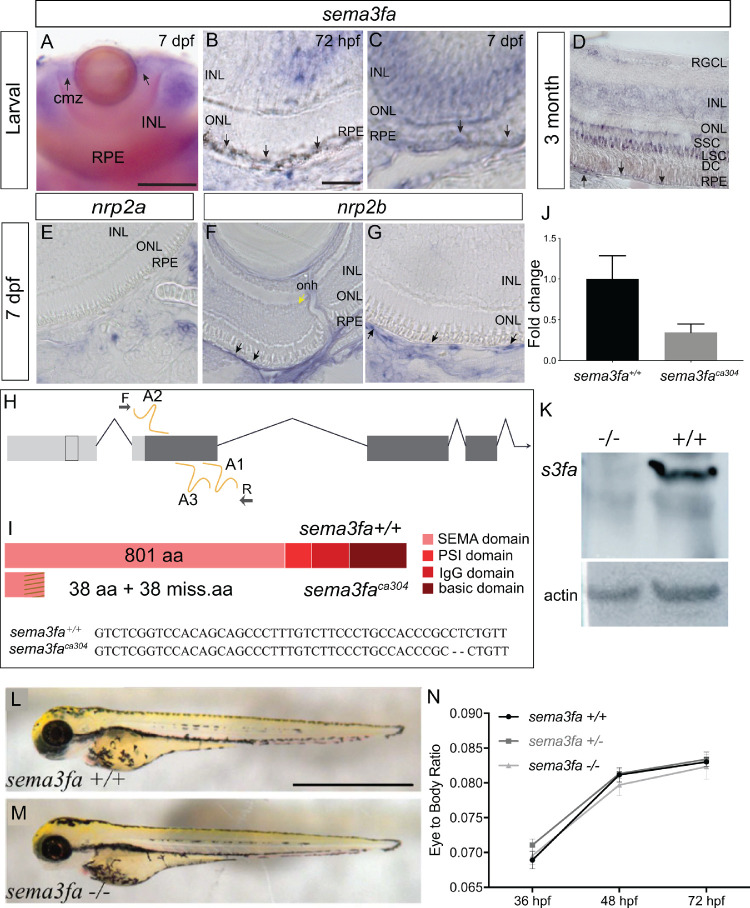

Sema3fa is expressed by the RPE and inner retina of larval and adult zebrafish. (A–D) sema3fa RNA ISH in whole mount (A) and retinal sections (B–D). ISH signal is detected in the retinal pigment epithelium (RPE) during development (A–C) and into adulthood (D). In larval and adult retina, sema3fa is also expressed strongly in the inner nuclear layer (INL) and CMZ, with expression in the outer nuclear layer (ONL) observed in the adult. (E–G) Expression at 7 dpf of mRNA for the known Sema3fa receptor nrp2b (F,G) but not nrp2a (E) by the endothelial cells of the retinal artery that runs alongside the optic nerve head (yellow arrow) and the choroid vessels lining the back of the eye (black arrows). Note that to minimize the pigment of the RPE, retinal sections were either from larvae treated at 24 hpf with 1-phenyl-2-thiourea (A–C, E–G), or were bleached (D). (H) Chromosomal overview of the sema3fa locus targeted by CRISPR/Cas9 mutagenesis to exon 1 (guide RNA: A1-3) and primers used to identify the mutation. UTR: untranslated region; F: forward primer; R: reverse primer. (I) Schematic representation of WT and premature stop codon mutant proteins. sema3fa^ca304fish have a 2 bp deletion (dashes) and produce a predicted product of 76 aa. Dashes represent missense amino acids (miss.aa). (J) RT-qPCR of sema3fa mRNA levels in WT and sema3fb^ca304 embryos at 48 hpf suggest nonsense mediated decay of mRNA transcript (N = 3). Error bar represents standard error of the mean (SEM). (K) Western blot of protein isolated from 5-6 dpf WT and sema3fa^ca304 mutant fish processed with a custom-made antibody against zebrafish Sema3fa. The antibody recognizes a protein of the appropriate size for Sema3fa in WT fish, which is absent in the mutants. Loading control is ß-actin. (L, M) Lateral views of 72 hpf WT (H) and sema3fa^ca304 (I) fish. (N) The ratio of eye width to anterior-posterior body length, measured along the antero-posterior axis, at 36, 48, and 72 hpf, arguing that there are no gross abnormalities in body or eye growth in the sema3fa heterozygote (n = 10) and homozygote (n = 4) mutant embryos as compared to WT (n = 10). Scale bars: A: 100 µm; B: 15 µm; L: 1 mm.

Figure 2.

Sema3fa is required to refine and limit retinal vessel branching in the larval eye. Live imaging of vessels (white) in Tg(kdrl:mCherry) WT (A,C,E,E’) and sema3fa^ca304 heterozygous (G,G’), and homozygous (B,D,F,F’) eyes during retinal intraocular vascular development acquired by confocal microscopy. (A, B) In lateral views of WT (A) and sema3fa^ca304 homozygous embryos, the hyaloid artery (endothelial cells labeled by mCherry) contacts the lens (asterisk) of the retina by 24 hpf (N = 1 WT n = 3; sema3fa^ca304 n = 4). (C, D) Ventral views of WT (C: N = 1, n = 4) and sema3fa^ca304 (D: N = 1, n = 4) eyes reveal that the hyaloid artery (arrowhead) forms a vascular plexus network around the lens by 72 hpf. Also evident is the nasal ciliary artery (arrows). (E–G) The WT intraocular hyaloid vessel (E’ is a magnified view of the boxed area in E) undergoes remodeling between 4-5 dpf to simplify the network (Hartsock et al., 2014). At 4 dpf, the numbers of vessel crossovers (arrows) are increased in sema3fa heterozygous (G,G’: N = 1, n = 2/2) and homozygous (F,F’: N = 4, n = 12/12) mutant embryos as compared to WT siblings (E, E’: N = 4, n = 10/11 show refinement). Scale bar: 100 µm; 50 µm for E’–G’.

Figure 3.

Increased vascularization of the retina is observed into adulthood. (A, B) Vessels (white) in retinal flat mounts of Tg(kdrl:mCherry) WT siblings (A) and sema3fa^ca304 (B) 5 month fish. Capillaries furthest from the optic nerve head (onh) in the peripheral retina are shown in A’,B’. A greater number of filopodial interconnections between capillaries are present in mutant retina (gray arrows). (C) Primary vessel length as measured from the optic nerve head (onh) to the first branching event is significantly shorter in mutants (**P = 0.0016, N = 2, n = 6 retinas) as compared to WT siblings (N = 2, n = 6 retinas). (D) The average width of the primary vessels is reduced significantly in mutants (**P = 0.0078; N = 2, n = 6 retinas) as compared to WT (N = 2, n = 6 retinas). (E) Measurement of the intercapillary distance shows that mutant capillaries are more closely spaced (n = 4 retinas, P < 0.0001) than in WT (n = 4 retinas). (F) Average number of filopodia in a region of interest in the retinal periphery (WT n = 4; sema3fa^ca304 n = 4; P = 0.029). Error bars represent standard deviation (SD). Statistics represent the nonparametric Mann-Whitney U test. Scale bar: 200 µm (A) and 50 µm (A’).

Figure 4.

The sema3fa-deficient embryos present with leaky vessels within the outer retina. (A–C) Vessels (white) in ventral views of the eyes of live imaged Tg(kdrl:mCherry) 7 dpf larvae. In WT (A: N = 6, n = 15/17) larvae the extraocular choroid plexus (yellow arrowhead) has begun to branch over the back of the retina. Heterozygous (B: N = 4, n = 9/13) and homozygous (C: N = 6, n = 12/17) semafa^ca304 eyes exhibit a dramatic increase in the choroid vasculature as compared to WT. (D–O) Sema3fa deficiency permits the entry of leaky vessels into the neural retina. Thick (40 µm) cryosections through the eyes of embryos injected at 8 dpf (E–I) or 10 dpf (J–O) with 2,000,000 MW rhodamine dextran and fixed 24 hours later. Sections are counterstained with nuclear label (Hoechst). Blood vessels (yellow arrowheads) infiltrate aberrantly into the outer retina of homozygous embryos at 8 dpf (I: N = 2, n = 4/4) and 10 dpf (O: N = 3, n = 10/10), but are not present in WT embryos (F: N = 2, n = 4/4 for 8 dpf; L: N = 2, n = 10/10 for 10 dpf). Dextran is present in the neural retina at 8 and 10 dpf in homozygous mutant eyes (H, I: 8 dpf, N = 2, n = 4/4; N, O: 10 dpf, N = 3, n = 8/10), but is essentially absent from WT (E, F: 8 dpf, N = 2, n = 4/4; K, L: 10 dpf, N = 3, n = 9/10) eyes. Dashed line represents the boundary between the RPE and neural retina. Boxed areas in E, H, K, and N are shown magnified in F, I, L, and O. (P) Average numbers of TUNEL+ apoptotic cells in whole mount WT, heterozygous, and homozygote eyes at 7 dpf (P > 0.99; N = 2, n = 10 for each genotype). (Q, R) An example of the peripheral retina of a WT (Q) and semafa^ca304 (R) 10 dpf larvae, where penetrating pathologic vessels in the mutant appear to disrupt retinal cellular architecture (arrow). (S,T) vegfaa expression in plastic sections of WT (S) and sema3fa mutant (T) 7 dpf retinas. (U) RT-qPCR for vegfaa and vegfab performed on mRNA isolated from WT (n = 5) and semafa^ca304 (n = 5) 7 dpf eyes. br, brain; INL, inner nuclear layer; L, lens; ONL, outer nuclear layer; RGCL, retinal ganglion cell layer. Error bars are SD. Scale bar: D: 100 µm; F, I, L, O: 20 µm.

Figure 5.

Vessel infiltration persists in the adult sema3fa mutant retina. (A–H) Cryosections made through the retinas of Tg(kdrl:mCherry) sema3fa WT (A–C) and mutant (D–F) 5 month old siblings. Nuclei are labeled by Hoechst (white). Blood vessels were detected in the area of the photoreceptor outer segments (os) in the majority of semafa^ca304 eyes (N = 1, n = 3/4), but not in WT retinas (N = 1, n = 4). C and F are magnified views of the boxed regions in B and E. Yellow chevron points to blood vessel. (G, H) One-year-old adult sema3fa+/+ (G) and sema3fa−/− (H) fish were injected with 2,000,000 MW rhodamine dextran (purple) and fixed 4 hours later. Thick (40 µm) eye cryosections counterstained with nuclear label (Hoechst) reveal leakage of dye (purple, yellow chevron) in the neural retina of semafa^ca304 fish (H: n = 3/5), but not WT siblings (G: n = 3/3). inl, inner nuclear layer; onl, outer nuclear layer; RGC, retinal ganglion cell layer; RPE/C, retinal pigment epithelium/choroid. Scale bar: 50 µm. Scale bar of inset: 10 µm.
