. 2021 Feb 2;13(2):e13075.
doi: 10.7759/cureus.13075.

Investigation of the Effects of Three-Dimensional Modeling Techniques on Degenerative Rotoscoliosis Surgery

Ismail Kaya  1 , Ilker Deniz Cingöz  1 , Meryem Cansu Şahin  2 , Emirhan Bozoğlan  3
Affiliations

Investigation of the Effects of Three-Dimensional Modeling Techniques on Degenerative Rotoscoliosis Surgery

Ismail Kaya et al. Cureus. .

Abstract

Objectives The present study aimed to compare patients in whom an operation plan was prepared before surgery using the three-dimensional (3D) modeling technology with the application of freehand screws using magnetic resonance imaging (MRI) and computed tomography (CT) scan images. Methods The printings and modelings were established in the Training and Research Center. Of 40 patients, 20 underwent surgery with 3D printing (Group 1) and 20 with the freehand technique (Group 2). The surgeries were performed by the same surgeons. Moreover, 5-mm pedicle screws were located in 122 vertebrae in 20 patients in whom 3D modeling was used and in 124 vertebrae in 20 patients in whom this modeling technique was not used. Results The mean time of screw insertion was 2.9 ± 1.2 minutes in the experimental group and 4.7 ± 2.3 minutes in the control group. While the mean amount of bleeding was 7.4 ± 4.1 ml in the experimental group, it was found to be 39.6 ± 14.2 ml in the control group. When the locations of the screws in the experimental group were evaluated, it was seen that 106 (86.9%) screws were 'excellent' and 16 (13.1%) screws were 'good.' When the placement of 124 pedicle screws in the control group was evaluated, it was found that 100 (80.6%) screws were 'excellent,' 20 (17.8%) screws were 'good,' and two (1.6%) screws were 'poor.' Conclusion The use of the improved 3D technology in the neurosurgery field is advantageous for surgeons, as it decreases the preoperative preparation phase, length of operation, and risk of complications.

Keywords: 3d printing; pedicle screw; rotoscoliosis.

PubMed Disclaimer

Conflict of interest statement

The authors have declared that no competing interests exist.

Figures

Figure 1
Figure 1. CT images for three-dimensional modeling of a patient with rotoscoliosis
CT: computed tomography
Figure 2
Figure 2. 3D modeling of vertebrae using the 3DSlicer program
3D: three dimensional
Figure 3

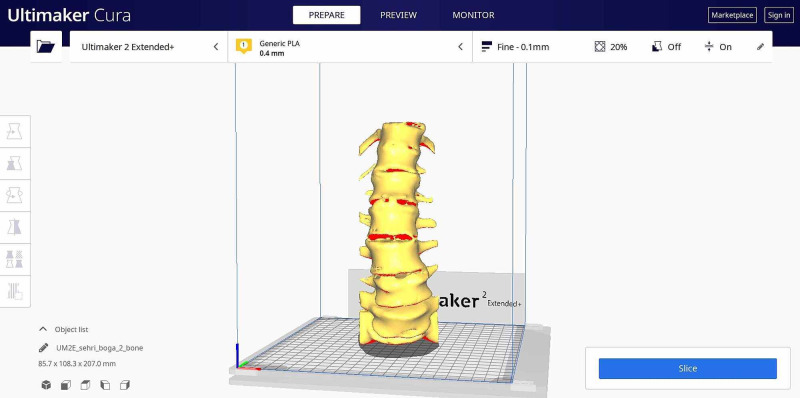

Figure 3. Slicing the model using the Ultimaker Cura program prior to 3D printing
Figure 4
Figure 4. Preop vertebral simulations and pedicle screw placement
Figure 5
Figure 5. Rotoscoliosis operation performed with the 3D model
See this image and copyright information in PMC

References

    1. The adult scoliosis. Aebi M. Eur Spine J. 2005;14:925–948. - PubMed
    1. Prevalence rates for scoliosis in US adults: results from the first National Health and Nutrition Examination Survey. Carter OD, Haynes SG. Int J Epidemiol. 1987;16:537–544. - PubMed
    1. Adult degenerative scoliosis: evaluation and management. Silva FE, Lenke LG. Neurosurg Focus. 2010;28:1. - PubMed
    1. Pediatric pedicle screws: comparative effectiveness and safety. A systematic literature review from the Scoliosis Research Society and the Pediatric Orthopaedic Society of North America Task Force. Ledonio CG, Polly DW, Jr. Jr., Vitale MG, Wang Q, Richards BS. J Bone Joint Surg Am. 2011;93:1227–1234. - PubMed
    1. Evaluation of pedicle screw placement in the deformed spine using intraoperative plain radiographs: a comparison with computerized tomography. Kim YJ, Lenke LG, Cheh G, Riew KD. Spine (Phila Pa 1976) 2005;30:2084–2088. - PubMed
