Disentangling listening effort and memory load beyond behavioural evidence: Pupillary response to listening effort during a concurrent memory task

Abstract

Recent research has demonstrated that pupillometry is a robust measure for quantifying listening effort. However, pupillary responses in listening situations where multiple cognitive functions are engaged and sustained over a period of time remain hard to interpret. This limits our conceptualisation and understanding of listening effort in realistic situations, because rarely in everyday life are people challenged by one task at a time. Therefore, the purpose of this experiment was to reveal the dynamics of listening effort in a sustained listening condition using a word repeat and recall task. Words were presented in quiet and speech-shaped noise at different signal-to-noise ratios (SNR): 0dB, 7dB, 14dB and quiet. Participants were presented with lists of 10 words, and required to repeat each word after its presentation. At the end of the list, participants either recalled as many words as possible or moved on to the next list. Simultaneously, their pupil dilation was recorded throughout the whole experiment. When only word repeating was required, peak pupil dilation (PPD) was bigger in 0dB versus other conditions; whereas when recall was required, PPD showed no difference among SNR levels and PPD in 0dB was smaller than repeat-only condition. Baseline pupil diameter and PPD followed different variation patterns across the 10 serial positions within a block for conditions requiring recall: baseline pupil diameter built up progressively and plateaued in the later positions (but shot up when listeners were recalling the previously heard words from memory); PPD decreased at a pace quicker than in repeat-only condition. The current findings demonstrate that additional cognitive load during a speech intelligibility task could disturb the well-established relation between pupillary response and listening effort. Both the magnitude and temporal pattern of task-evoked pupillary response differ greatly in complex listening conditions, urging for more listening effort studies in complex and realistic listening situations.

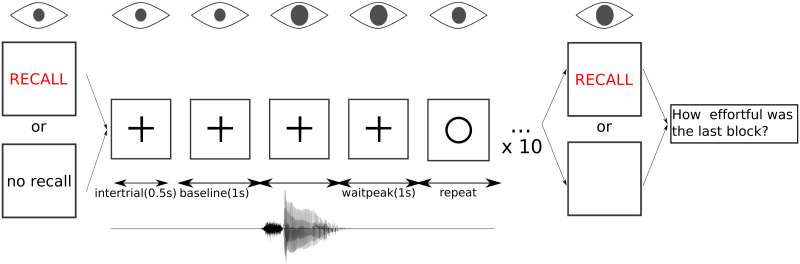

Fig 1. Test sequence in a block.

Before each block, participants were presented with either words ‘please listen, repeat and recall’ in red or words ‘please listen, repeat and no recall’ in black against a white screen, indicating whether the incoming block was repeat-with-recall or repeat-only condition. 3s after the words notification, a black fixation cross appeared and stayed for another 1s, to signal the start of the first trial. The trial started with acoustic presentation of 0.5s speech-shaped noise (or quiet in the quiet condition) and visual presentation of a black fixation cross (‘intertrial’). Another 1s of baseline measurement followed, with the same acoustic and visual presentation (‘baseline’). The word was then played at 1.5s into the trial, followed by noise presentation (or quiet in the quiet condition) for 1s (‘waitpeak’), with the same visual presentation. Upon the offset of ‘waitpeak’, the black fixation cross turned into a black circle to prompt listeners to repeat back the word ‘repeat’. If the block was a repeat-with-recall condition, at the end of the 10th word, participants were prompted by the word RECALL followed by a black circle on the screen to start recalling previously repeated words. At the end of the block, participants were verbally reminded to rate How effortful was the last block from 1 to 10, 10 being most effortful.

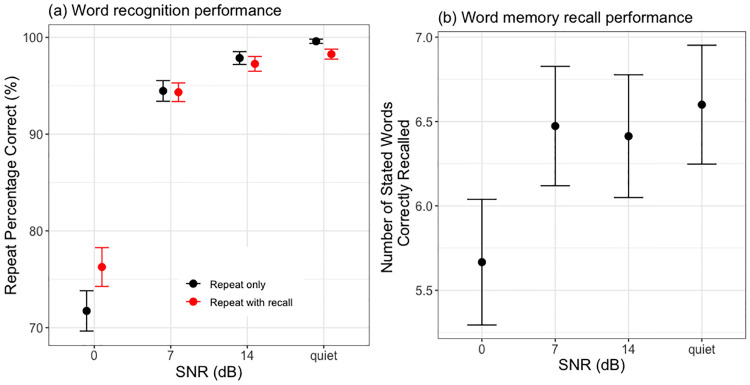

Fig 2. Behavioural performance.

All data are averaged across 25 listeners. The error bars denote 1 standard error of the mean. (a) shows word recognition performance as a function of LISTENING and TASK conditions, and (b) shows free recall performance (when listeners were recalling as many words as possible the previously heard words from memory) as a function of the LISTENING condition.

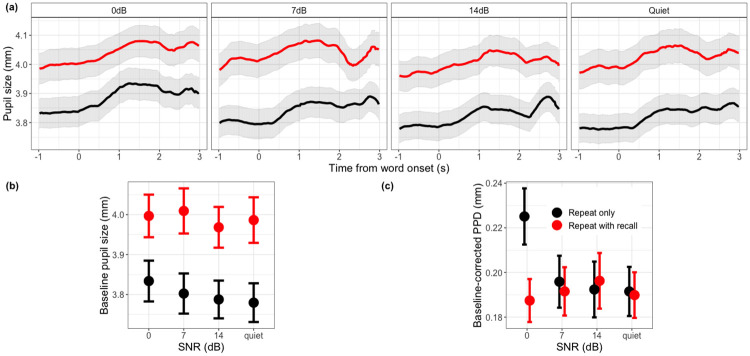

Fig 3. Pupillometry results as a function of LISTENING and TASK conditions.

All data are aggregated across 22 listeners, and WORD POSITION, LISTENING, TASK conditions. The error bars and shaded width denote 1 standard error of the mean. (a) shows changes in pupil size as a function of time during each trial, for each LISTENING and TASK conditions. (b) and (c) plot baseline pupil diameter and PPD as a function of LISTENING and TASK conditions respectively.

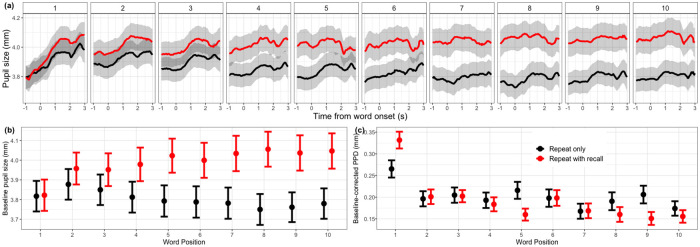

Fig 4. Pupillometry results as a function of TASK and WORD POSITION.

All data are aggregated across 22 listeners, and WORD POSITION, LISTENING, TASK conditions. The error bars and shaded width denote 1 standard error of the mean. (a) shows changes in pupil size as a function of time at each WORD POSITION for each TASK condition. (b) and (c) plot baseline pupil diameter and PPD as a function of WORD POSITION and TASK condition respectively.

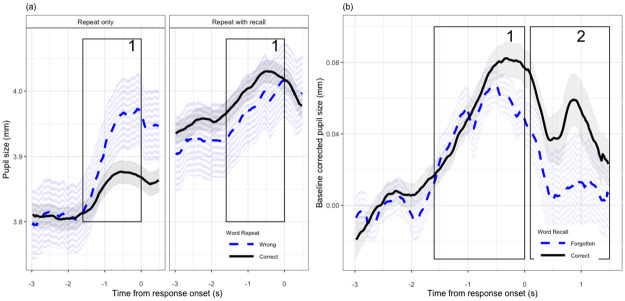

Fig 5. Comparing pupil traces for words correctly and incorrectly repeated, recalled and forgotten.

All data are averaged across 22 listeners. The shaded width denotes 1 standard error of the mean. (a) compares the pupil traces for words correctly and incorrectly repeated in each TASK condition. (b) compares the pupil traces for words that are successfully recalled or forgotten. Traces in two time windows are analysed: first analysis window is from the onset of word to the onset of the response prompt, and the second analysis window is from the onset of the response prompt to 1.5s after the prompt.

Fig 6. Pupil traces from 10s before the recall onset to 15s after the recall onset.

Each panel shows the averaged traces in each LISTENING condition. All data are aggregated across 22 listeners. The shaded width denotes 1 standard error of the mean. The line is further smoothed using the default gam method in ggplot2 package to highlight the general trend.

Fig 7. Subjective effort and individual differences.

Each data point corresponds to one participant. The error bars denote 1 standard error of the mean. (a) plots subjective rating as a function of LISTENING and TASK conditions. (b) to (d) show the significant correlations (p < 0.05) between behavioural and pupillary measures.
