Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2021 Feb 15;13(4):581.
doi: 10.3390/polym13040581.

α-Cellulose Fibers of Paper-Waste Origin Surface-Modified with Fe3O4 and Thiolated-Chitosan for Efficacious Immobilization of Laccase

Gajanan S Ghodake  1 , Surendra K Shinde  1 , Ganesh D Saratale  2 , Rijuta G Saratale  3 , Min Kim  4 , Seung-Cheol Jee  4 , Dae-Young Kim  1 , Jung-Suk Sung  4 , Avinash A Kadam  3
Affiliations

α-Cellulose Fibers of Paper-Waste Origin Surface-Modified with Fe3O4 and Thiolated-Chitosan for Efficacious Immobilization of Laccase

Gajanan S Ghodake et al. Polymers (Basel). .

Abstract

The utilization of waste-paper-biomass for extraction of important α-cellulose biopolymer, and modification of extracted α-cellulose for application in enzyme immobilization can be extremely vital for green circular bio-economy. Thus, in this study, α-cellulose fibers were super-magnetized (Fe3O4), grafted with chitosan (CTNs), and thiol (-SH) modified for laccase immobilization. The developed material was characterized by high-resolution transmission electron microscopy (HR-TEM), HR-TEM energy dispersive X-ray spectroscopy (HR-TEM-EDS), X-ray diffraction (XRD), vibrating sample magnetometer (VSM), X-ray photoelectron spectroscopy (XPS), and Fourier transform infrared spectroscopy (FT-IR) analyses. Laccase immobilized on α-Cellulose-Fe3O4-CTNs (α-Cellulose-Fe3O4-CTNs-Laccase) gave significant activity recovery (99.16%) and laccase loading potential (169.36 mg/g). The α-Cellulose-Fe3O4-CTNs-Laccase displayed excellent stabilities for temperature, pH, and storage time. The α-Cellulose-Fe3O4-CTNs-Laccase applied in repeated cycles shown remarkable consistency of activity retention for 10 cycles. After the 10th cycle, α-Cellulose-Fe3O4-CTNs possessed 80.65% relative activity. Furthermore, α-Cellulose-Fe3O4-CTNs-Laccase shown excellent degradation of pharmaceutical contaminant sulfamethoxazole (SMX). The SMX degradation by α-Cellulose-Fe3O4-CTNs-Laccase was found optimum at incubation time (20 h), pH (3), temperatures (30 °C), and shaking conditions (200 rpm). Finally, α-Cellulose-Fe3O4-CTNs-Laccase gave repeated degradation of SMX. Thus, this study presents a novel, waste-derived, highly capable, and super-magnetic nanocomposite for enzyme immobilization applications.

Keywords: chitosan; laccase immobilization; super-magnetic; waste-paper-biomass; α-Cellulose.

PubMed Disclaimer

Conflict of interest statement

There is no conflict of interest.

Figures

Figure 1
Figure 1
Schematic presentation of a chemical scheme for laccase immobilization on α-Cellulose-Fe3O4-CTNs-SH and its environmental application.
Figure 2
Figure 2
High-resolution transmission electron microscopy (HR-TEM) image of (A) α-Cellulose-Fe3O4-CTNs-SH, (B) Zoomed view of the α-Cellulose-Fe3O4-CTNs-SH HR-TEM image, (C) high-angle annular dark-field imaging (HAADF) analysis of the α-Cellulose-Fe3O4-CTNs-SH, HR-TEM HAADF elemental mapping (D) carbon (C), (E) oxygen (O), (F) nitrogen (N), (G) iron (Fe), and (I) sulfur (S), and (J) HR-TEM EDS profile of the α-Cellulose-Fe3O4-CTNs-SH.
Figure 3
Figure 3
XRD analysis of the α-Cellulose-Fe3O4-CTNs-SH.
Figure 4
Figure 4
Vibrating sample magnetometer (VSM) analysis of the α-Cellulose-Fe3O4-CTNs-SH.
Figure 5
Figure 5
(A) XPS analysis of the α-Cellulose-Fe3O4-CTNs-SH-Laccase, and (B) high-resolution Fe 2p XPS spectrum of α-Cellulose-Fe3O4-CTNs-SH-Laccase.
Figure 6
Figure 6
FT-IR analysis of the α-Cellulose-Fe3O4-CTN-SH and α-Cellulose-Fe3O4-CTN-SH-Laccase.
Figure 7
Figure 7

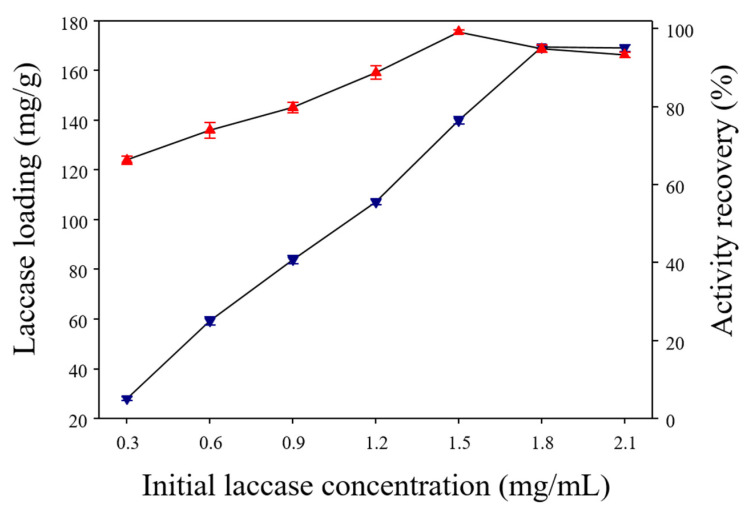

Laccase loading pattern on α-Cellulose-Fe3O4-CTNs-SH, and laccase activity recovery by α-Cellulose-Fe3O4-CTNs-SH-Laccase.
Figure 8
Figure 8
(A) Temperature stability of free and α-Cellulose-Fe3O4-CTNs-SH-Laccase carried out at 60 °C for 180 min time, (B) pH stability study of free and α-Cellulose-Fe3O4-CTNs-SH-Laccase carried out at pH 1–9 for 1 h incubation time, (C) storage stability study of free and α-Cellulose-Fe3O4-CTNs-SH-Laccase carried out at 4 °C and for 30 days, and (D) reusability study of the α-Cellulose-Fe3O4-CTNs-SH-Laccase in 10 cycles.
Figure 9
Figure 9
Effect of time (A), pH (B), temperatures (C), and shaking conditions (D) on SMX degradation by the α-Cellulose-Fe3O4-CTNs-SH-Laccase.
Figure 10
Figure 10
The repeated cycle degradation of SMX by α-Cellulose-Fe3O4-CTNs-SH-Laccase.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Ma Y., Hummel M., Määttänen M., Särkilahti A., Harlin A., Sixta H. Upcycling of waste paper and cardboard to textiles. Green Chem. 2016;18:858–866. doi: 10.1039/C5GC01679G. - DOI
    1. Zheng B., Hu C., Guan L., Gu J., Guo H., Zhang W. Structural Characterization and Analysis of High-Strength Laminated Composites from Recycled Newspaper and HDPE. Polymers. 2019;11:1311. doi: 10.3390/polym11081311. - DOI - PMC - PubMed
    1. Carbone K., Paliotta M., Micheli L., Mazzuca C., Cacciotti I., Nocente F., Ciampa A., Dell’Abate M.T. A completely green approach to the synthesis of dendritic silver nanostructures starting from white grape pomace as a potential nanofactory. Arab. J. Chem. 2019;12:597–609. doi: 10.1016/j.arabjc.2018.08.001. - DOI
    1. Jiang B., Na J., Wang L., Li D., Liu C., Feng Z. Reutilization of Food Waste: One-Step Extration, Purification and Characterization of Ovalbumin from Salted Egg White by Aqueous Two-Phase Flotation. Foods. 2019;8:286. doi: 10.3390/foods8080286. - DOI - PMC - PubMed
    1. Scott K., Giesekam J., Barrett J., Owen A. Bridging the climate mitigation gap with economy-wide material productivity. J. Ind. Ecol. 2019;23:918–931. doi: 10.1111/jiec.12831. - DOI

LinkOut - more resources
