. 2021 Feb 24:24:102-110.
doi: 10.1016/j.jor.2021.02.032. eCollection 2021 Mar-Apr.

The effect of four-corner fusion and proximal row carpectomy on uniplanar and multiplanar wrist motion: A biomechanical study

Stacy Fan  1 , Clare Padmore  2 , Assaf Kadar  3   4 , Spencer Chambers  1 , G Daniel G Langohr  2 , Nina Suh  1   2   3
Affiliations

The effect of four-corner fusion and proximal row carpectomy on uniplanar and multiplanar wrist motion: A biomechanical study

Stacy Fan et al. J Orthop. .

Abstract

Purpose: To compare changes in wrist kinematics after scaphoidectomy and four-corner fusion (4CF), and proximal row carpectomy (PRC).

Methods: Six cadaveric specimens underwent flexion-extension, radial-ulnar deviation and circumduction in an active motion wrist simulator. Native state, "anatomic 4CF", "radial 4CF", and PRC were compared.

Results: Radial 4CF reduced wrist extension, while PRC reduced radial deviation. Fusion groups had similar motion profiles. 44%, 41%, and 32% of native circumduction was maintained in PRC, anatomic, and radial 4CF.

Conclusions: Both fusion positions resulted in comparable motion outcomes. Anatomic 4CF was restricted in wrist extension compared to PRC but provided favourable radial deviation.

Keywords: Circumduction; Four corner fusion; Partial wrist arthrodesis; Proximal row carpectomy.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Four corner fusion was performed with five retrograde K-wires. capitolunate joint, triquetrohamate joint, and lunotriquetral joint. Biplanar fluoroscopic images were obtained to confirm the position of the wires and the two 2.7 mm lunate tracking screws.
Fig. 2
Fig. 2
Clinical visualization of A) Anatomic 4CF and B) Radial-aligned 4CF.
Fig. 2
Fig. 2
Clinical visualization of A) Anatomic 4CF and B) Radial-aligned 4CF.
Fig. 3
Fig. 3

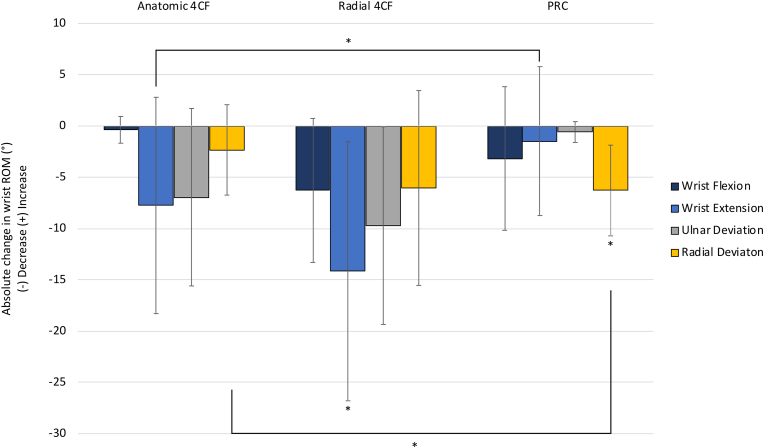

Mean absolute change (°) in wrist flexion, extension, ulnar and radial deviation compared to native state. Asterisk indicates statistical significance (p < 0.05) between comparison groups. Asterisk at base illustrates significance compared to native state.
Fig. 4
Fig. 4
Total circumduction area (mm2). Asterisk indicates statistical significance (p < 0.05).
Fig. 5
Fig. 5

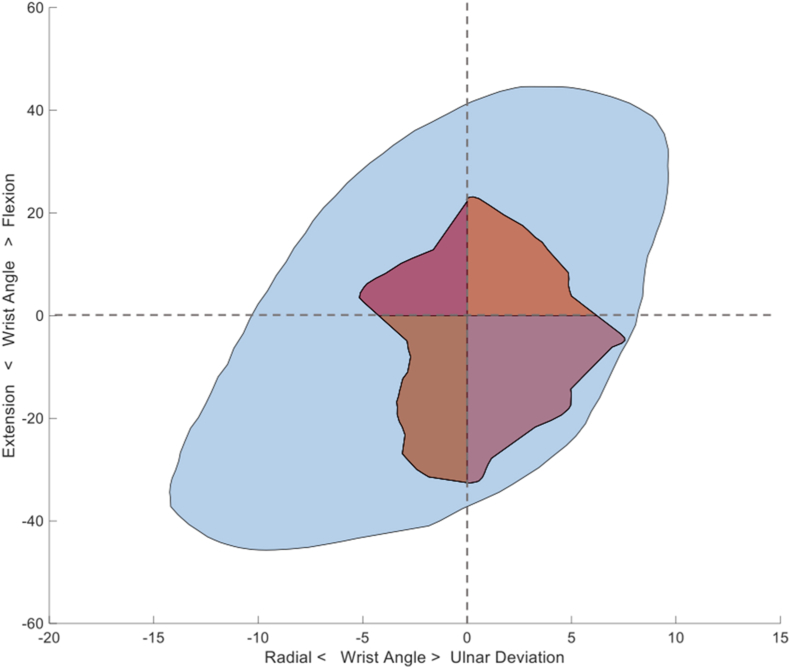

Circumduction pattern after anatomic 4CF (A), radial 4CF (B) and PRC (C), superimposed on native circumduction pattern.
Fig. 5
Fig. 5
Circumduction pattern after anatomic 4CF (A), radial 4CF (B) and PRC (C), superimposed on native circumduction pattern.
Fig. 5
Fig. 5
Circumduction pattern after anatomic 4CF (A), radial 4CF (B) and PRC (C), superimposed on native circumduction pattern.
Fig. 5
Fig. 5
Circumduction pattern after anatomic 4CF (A), radial 4CF (B) and PRC (C), superimposed on native circumduction pattern.
Fig. 6
Fig. 6
Percent of maintained motion within each quadrant compared to native state.
See this image and copyright information in PMC

References

    1. Shah C.M., Stern P.J. Scapholunate advanced collapse (SLAC) and scaphoid nonunion advanced collapse (SNAC) wrist arthritis. Curr Rev Musculoskelet Med. 2013;6(1):9–17. - PMC - PubMed
    1. Dvinskikh N.A., Blankevoort L., Strackee S.D., Grimbergen C.A., Streekstra G.J. The effect of lunate position on range of motion after a four-corner arthrodesis: a biomechanical simulation study. J Biomech. 2011;44(7):1387–1392. - PubMed
    1. De Carli P., Donndorff A.G., Alfie V.A., Boretto J.G., López Ovenza J.M., Gallucci G.L. Four-corner arthrodesis: influence of the position of the lunate on postoperative wrist motion: a cadaveric study. J Hand Surg Am. 2007;32(9):1356–1362. - PubMed
    1. Hernandez-Soria A., Das De S., Model Z., Lee S.K., Wolfe S.W. The effect of capitate position on coronal plane wrist motion after simulated 4-corner arthrodesis. J Hand Surg Am. 2016;41(11):1049–1055. - PubMed
    1. Debottis D.P., Werner F.W., Sutton L.G., Harley B.J. 4-corner arthrodesis and proximal row carpectomy: a biomechanical comparison of wrist motion and tendon forces. J Hand Surg Am. 2013;38(5):893–898. - PubMed
