. 2021 Oct 12;195(3-4):372-377.
doi: 10.1093/rpd/ncab014.

VIEWDEX 3.0-RECENT DEVELOPMENT OF A SOFTWARE APPLICATION FACILITATING ASSESSMENT OF IMAGE QUALITY AND OBSERVER PERFORMANCE

Angelica Svalkvist  1   2 , Sune Svensson  1 , Tommy Hagberg  1 , Magnus Båth  1   2
Affiliations

VIEWDEX 3.0-RECENT DEVELOPMENT OF A SOFTWARE APPLICATION FACILITATING ASSESSMENT OF IMAGE QUALITY AND OBSERVER PERFORMANCE

Angelica Svalkvist et al. Radiat Prot Dosimetry. .

Abstract

ViewDEX (Viewer for Digital Evaluation of X-ray Images) is an image viewer compatible with Digital Imaging and Communications in Medicine (DICOM) that has been especially designed to facilitate image perception and observer performance studies within medical imaging. The software was first released in 2004 and since then a continuous development has been ongoing. One of the major drawbacks of previous versions of ViewDEX has been that they have lacked functionality enabling the possibility to evaluate multiple images and/or image stacks simultaneously. This functionality is especially requested by researchers working with modalities, where an image acquisition can result in multiple image stacks (e.g. axial, coronal and sagittal reformations in computed tomography). In ViewDEX 3.0 this functionality has been added and it is now possible to perform image evaluations of multiple images and/or image stacks simultaneously, by using multiple monitors and/or multiple image canvases in monitors. Additionally, some of the previously available functionality has been updated and improved. This paper describes the recent developments of ViewDEX 3.0.

PubMed Disclaimer

Figures

Figure 1
Figure 1

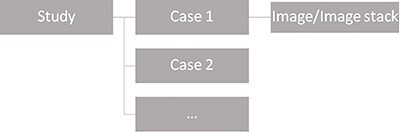

Schematic illustration of the configuration of the image database in ViewDEX 2.0. In ViewDEX 2.0 each case can consist of only one image or image stack.
Figure 2
Figure 2

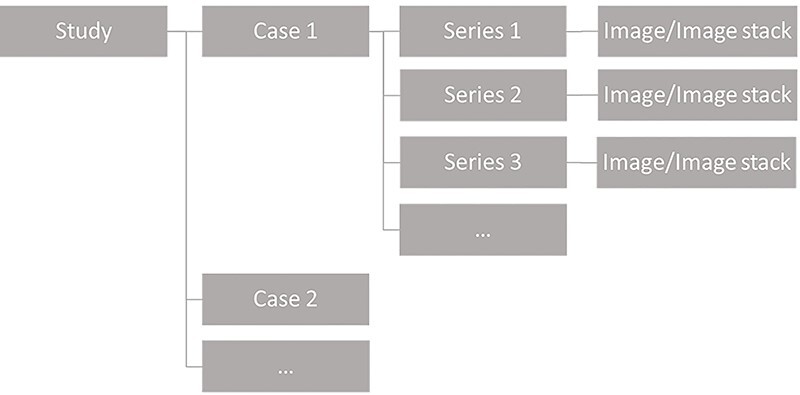

Schematic illustration of the configuration of the image database in ViewDEX 3.0. In ViewDEX 3.0 each case can consist of several different image series, each including either a single image or an image stack.
Figure 3
Figure 3

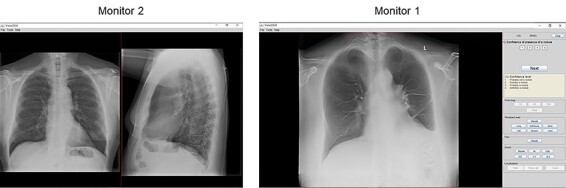

Screenshots of a study setup in ViewDEX 3.0. In this example, two monitors are used. The study consist of one chest tomosynthesis examination displayed on monitor 1 in full-screen (1 × 1) format (right) and two projections from a conventional chest examination (frontal + lateral) displayed side-by-side (1 × 2) on monitor 2 (left).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Börjesson, S. et al. A software tool for increased efficiency in observer performance studies in radiology. Radiat. Prot. Dosimetry 114, 45–52 (2005). - PubMed
    1. Håkansson, M., Svensson, S., Båth, M. and Månsson, L. G. ViewDEX - a Java-based software for presentation and evaluation of medical images in observer performance studies. Proc. SPIE 6509, 65091R1–65091R8 (2007).
    1. Håkansson, M., Svensson, S., Zachrisson, S., Svalkvist, A., Båth, M. and Månsson, L. G. VIEWDEX: an efficient and easy-to-use software for observer performance studies. Radiat. Prot. Dosimetry 139, 42–51 (2010). - PubMed
    1. Håkansson, M., Svensson, S., Zachrisson, S., Svalkvist, A., Båth, M. and Månsson, L. G. ViewDEX 2.0: a Java-based DICOM-compatible software for observer performance studies. Proc. of SPIE 7263, 72631G1–72631G10 (2010). - PubMed
    1. Svalkvist, A., Svensson, S., Håkansson, M., Båth, M. and Månsson, L. G. Viewdex: a status report. Radiat. Prot. Dosimetry 169, 38–45 (2016). - PubMed
