Randomized Controlled Trial
. 2021 Jan-Feb;71(1):11-16.
doi: 10.1016/j.bjane.2020.12.002. Epub 2020 Dec 26.

Airway patency in children undergoing magnetic resonance imaging using neck collars: a single center, randomized, double-blind, prospective study

Gulseren Yilmaz  1 , Kenan Varol  2 , Osman Esen  3 , Arda Kayhan  2 , Ziya Salihoglu  4
Affiliations
Randomized Controlled Trial

Airway patency in children undergoing magnetic resonance imaging using neck collars: a single center, randomized, double-blind, prospective study

Gulseren Yilmaz et al. Braz J Anesthesiol. 2021 Jan-Feb.

Abstract

Background and objectives: Maneuvers precluding the downward shift of the mandibula and providing slight extension of the head have been shown to increase upper airway dimensions. This study aimed to investigate the role of Neck Collars (NC) in maintaining airway patency during Magnetic Resonance Imaging (MRI) examination in a pediatric population aged between 0 and 16 years.

Methods: One hundred twenty-five children were recruited in this prospective study. Subjects were randomly assigned to NC group (NC+) or standard imaging group (NC-). Measurements of anteroposterior and transverse dimensions and cross-sectional area were performed to determine the upper airway size at three distinct levels: soft palate, base of the tongue, and tip of the epiglottis.

Results: The anteroposterior diameter and cross-sectional area at the levels of base of the tongue and soft palate were significantly higher in NC+ patients compared to NC- patients. However, anteroposterior dimensions and cross-sectional areas at the epiglottis level were similar in the two groups. When patients were analyzed according to age groups of 0-2, 2-8, and 8-16 years, the anteroposterior diameter and cross-sectional area at the levels of base of the tongue and soft palate were significantly higher in NC+ patients compared to NC- patients in all age groups.

Conclusions: This study clearly demonstrates that the application of a NC may improve retropalatal end and retroglossal airway dimensions in a pediatric population undergoing MRI examination and receiving sedation in supine position.

Keywords: Airway; Children; Deep sedation; Magnetic resonance imaging.

PubMed Disclaimer

Figures

Figure 1
Figure 1

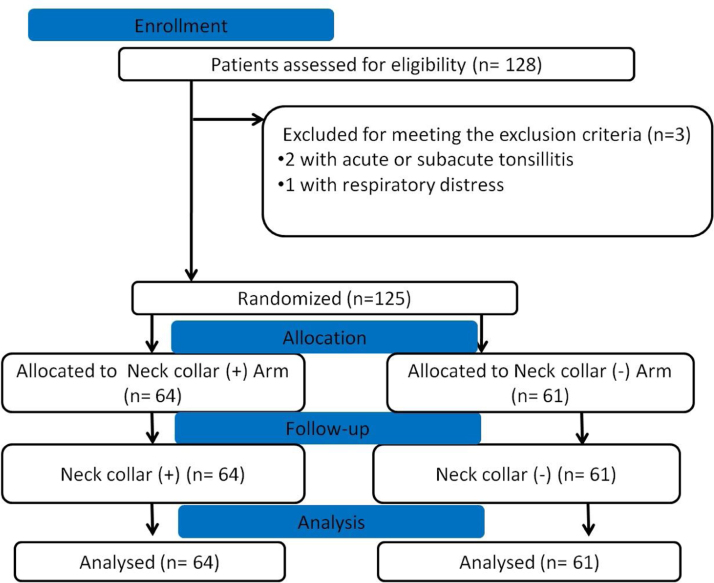

CONSORT flow diagram demonstrating patient allocation.
Figure 2
Figure 2

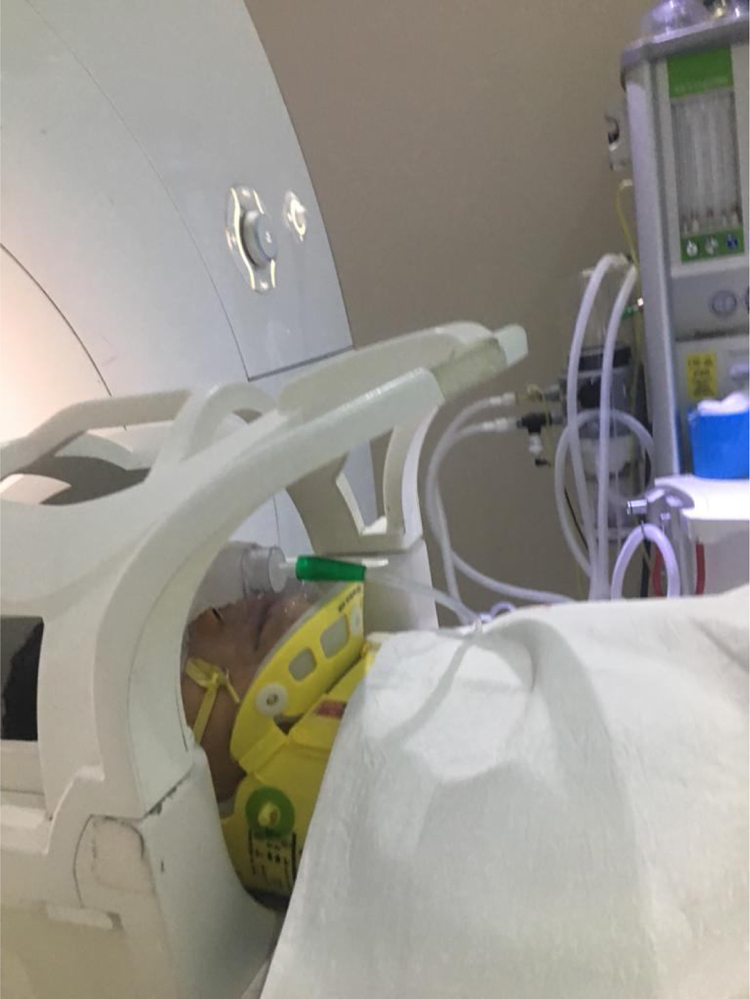

Child using a NC during MRI examination.
Figure 3
Figure 3

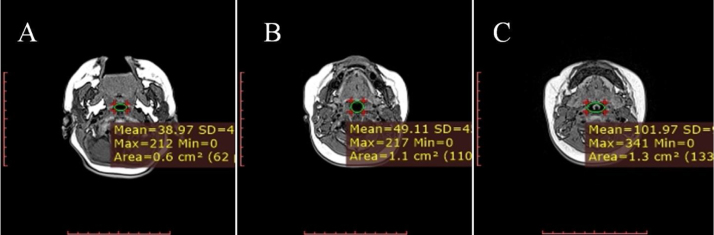

Measurement of the upper airway CSA at different levels: (A) nasopharynx level, (B) oropharynx level, and (C) epiglottis level.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Barkovich M.J., Xu D., Desikan R.S., et al. Pediatric neuro MRI: tricks to minimize sedation. Pediatr Radiol. 2018;48:50–55. - PMC - PubMed
    1. Bosemani T., Hemani M., Cruz A., et al. Assessment of upper airway patency in spontaneously breathing non-intubated neonates and infants undergoing conventional MRI of head and neck. Childs Nerv Syst. 2015;31:1521–1525. - PubMed
    1. Heng Vong C., Bajard A., Thiesse P., et al. Deep sedation in pediatric imaging: efficacy and safety of intravenous chlorpromazine. Pediatr Radiol. 2012;42:552–561. - PubMed
    1. Vialet R., Nau A., Chaumoıˆtre K., et al. Effects of head posture on the oral, pharyngeal and laryngeal axis alignment in infants and young children by magnetic resonance imaging. Pediatr Anesth. 2008;18:525–531. - PubMed
    1. Moustafa M.A., Emara D.M., Nouh M.R. Effect of a neck collar on upper airway size in children sedated with propofol-midazolam combination during magnetic resonance imaging. Paediatr Anaesth. 2015;25:421–427. - PubMed
