. 2021 Mar 15;7(1):29.
doi: 10.1186/s40729-021-00300-7.

Long transmaxillary implants improve oral health-related quality of life of patients with atrophic jaws-a case series

Gino Kopp  1 , João Cezar Zielak  1 , Suyany Gabriely Weiss  1 , Fernanda Kopp  2 , Tatiana Miranda Deliberador  3
Affiliations

Long transmaxillary implants improve oral health-related quality of life of patients with atrophic jaws-a case series

Gino Kopp et al. Int J Implant Dent. .

Abstract

Background: The advancement of contemporary dentistry is related to the improvement of existing techniques, materials, and technology, consistently for improving people's oral health, which can ultimately reflect better quality of life. This study aimed to evaluate the oral-health-related quality of life (OHRQoL) of patients with atrophic jaws, who reported for the placement of long transmaxillary implants and posterior prosthetic rehabilitation. Twelve patients (n = 12), of both sexes, with a mean age of 55.83 ± 2.78 years, who were unable to receive conventional implants immediately because of lack of bone, received two long transmaxillary implants in a horizontal position, anteroposteriorly, one on each side, from the canine pillar to the maxillary tuberosity. After 6 months, the conventional clinical sequence for fabricating a fixed prosthesis type protocol or removable prosthesis type overdenture (MK1® system) was performed, when required to recover the lip volume. The Oral Health Impact Profile questionnaire (OHIP-14) was applied preoperatively and 6 months after rehabilitation using a prosthesis on the implants. The results were statistically analyzed using a significance level of 0.05.

Results: An improvement in the perception of OHRQoL was observed between the pre- and postoperative periods in the OHIP-14 total score and the domains related to functional limitation, physical pain, psychological discomfort, psychological disability, social disability, and handicap (p < 0.05).

Conclusion: It may be concluded that transmaxillary implant rehabilitation improves the OHRQoL.

Keywords: Dental implants; Edentulous; Jaw; Quality of life; Zygoma.

PubMed Disclaimer

Conflict of interest statement

Gino Kopp, João Cezar Zielak, Suyany Gabriely Weiss, Fernanda Kopp, and Tatiana Miranda Deliberador declare that they have no competing interests.

Figures

Fig. 1
Fig. 1

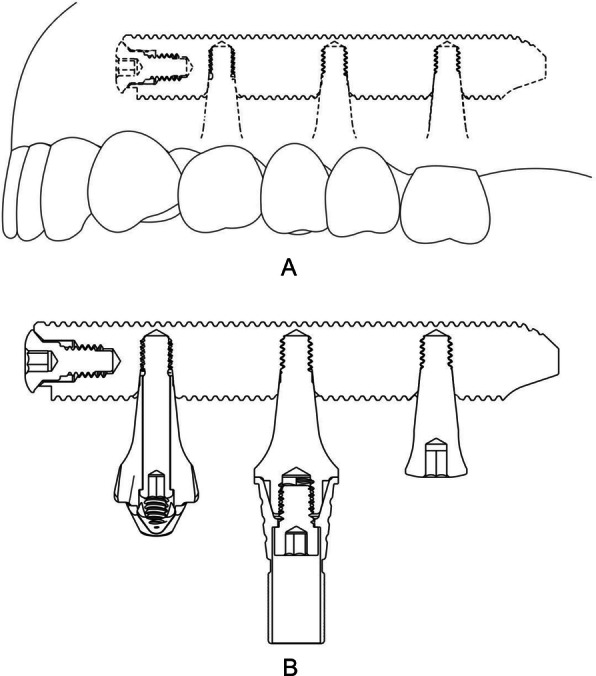

Schematic drawing of the transmaxillary implant. Perforation is made using the 2.0 mm lance implant, for giving guidance and stability to the next drill, using the 3.0 mm implant
Fig. 2
Fig. 2

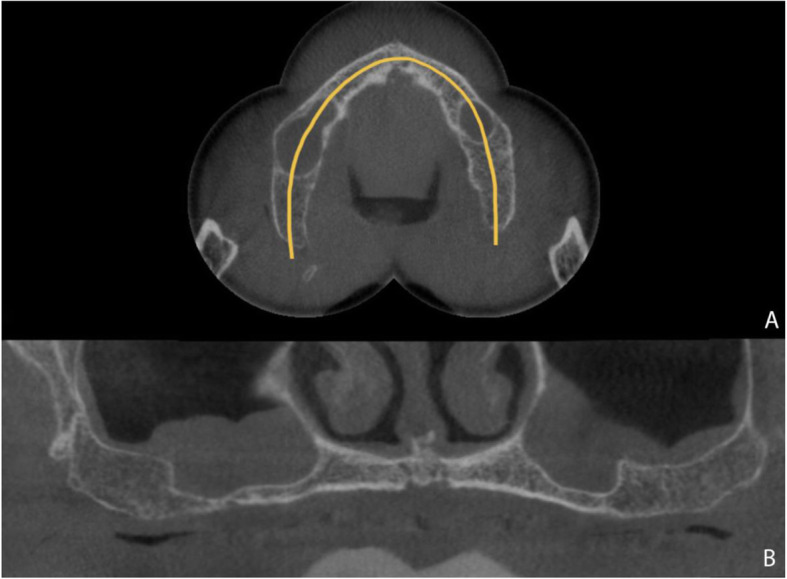

Maxillary computed tomography. a Axial view. b Coronal view
Fig. 3
Fig. 3

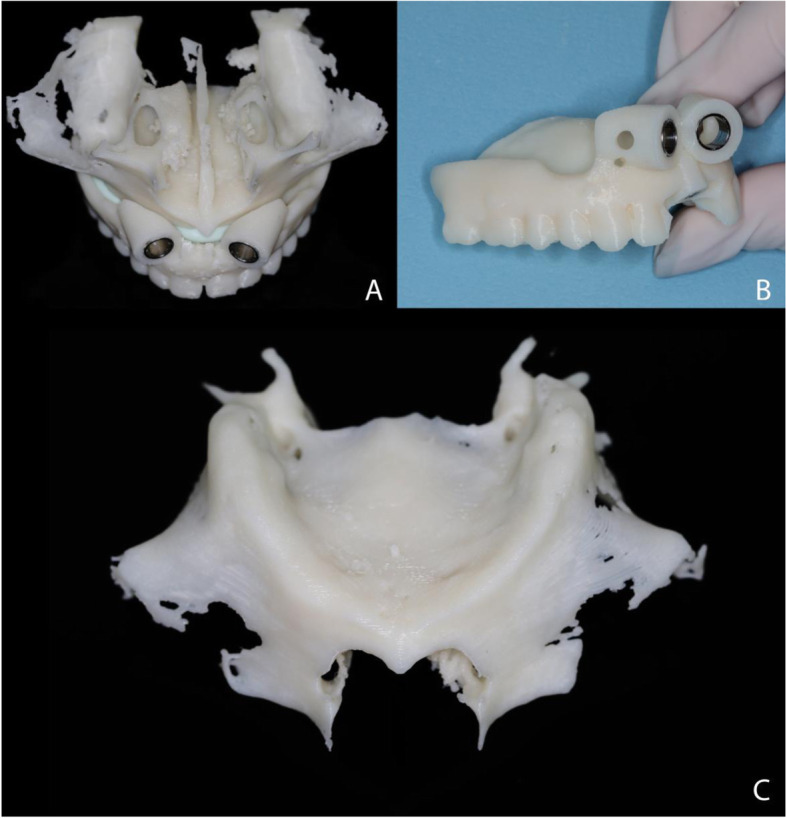

Surgical guide. a Surgical guide in occlusal view. b Surgical guide in frontal view. c Prototyped model of the atrophic maxilla
Fig. 4
Fig. 4
Insertion of the implant. a Prototyped surgical guide installed and stabilized. b Long transmaxillary implants are placed on both sides of the maxilla. c Long transmaxillary implant placement with the final insertion using a ratchet or tufted wrench
Fig. 5.
Fig. 5.
a Mini-pillar guide. b Installation of the mini-pillars. c Protectors on the mini-pillars. d Relief of the prosthesis on the mini-pillars
Fig. 6
Fig. 6
Tomographic scan of the follow-up
Fig. 7
Fig. 7
Panoramic radiography of the follow-up
Fig. 8
Fig. 8
Final aspect
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Alzarea BK. Assessment and evaluation of quality of life (OHRQoL) of patients with dental im-plants using the Oral Health Impact Profile (OHIP-14) - a clinical study. J Clin Diagn Res. 2016;10:57–60. - PMC - PubMed
    1. Aparicio C, Manresa C, Francisco K, Ouazzani W, Claros P, Potau JM, Aparicio A. The long-term use of zygomatic implants: a 10-year clinical and radiographic report. Clin Implant Dent Relat Res. 2014;16(3):447–459. doi: 10.1111/cid.12007. - DOI - PubMed
    1. Aparicio C, Ouazzani W, Aparicio A, Fortes V, Muela R, Pascual A, Codesal M, Barluenga N, Manresa C, Franch M. Extrasinus zygomatic implants: three year experience from a new surgical approach for patients with pronounced buccal concavities in the edentulous maxilla. Clin Implant Dent Relat Res. 2010;12(1):55–61. doi: 10.1111/j.1708-8208.2008.00130.x. - DOI - PubMed
    1. Bahammam MA, Fareed WM. Effect of immediate versus delayed loadings of dental implants on the oral health-related quality of life in Saudi population. Experimental clinical trial. Saudi Med J. 2019;40(1):79–86. doi: 10.15537/smj.2019.1.23370. - DOI - PMC - PubMed
    1. Barbier L, Pottel L, De Ceulaer J, et al. Evaluation of quality of life after mandibular reconstruction using a novel fixed implant-supported dental prosthesis concept: a pilot study. Int J Prosthodont. 2019;32(2):162–173. doi: 10.11607/ijp.6001. - DOI - PubMed
