. 2021 Apr 1;14(1):81.
doi: 10.1186/s13068-021-01929-7.

Efficiency of integrated electrooxidation and anaerobic digestion of waste activated sludge

J A Barrios  1 , A Cano  1 , F F Rivera  2 , M E Cisneros  1 , U Durán  3
Affiliations

Efficiency of integrated electrooxidation and anaerobic digestion of waste activated sludge

J A Barrios et al. Biotechnol Biofuels. .

Abstract

Background: Most of the organic content of waste activated sludge (WAS) comprises microbial cells hard to degrade, which must be pre-treated for energy recovery by anaerobic digestion (AD). Electrooxidation pre-treatment (EOP) with boron-doped diamond (BDD) electrode have been considered a promising novel technology that increase hydrolysis rate, by the disintegrating cell walls from WAS. Although electrochemical oxidation could efficiently solubilize organic substances of macromolecules, limited reports are available on EOP of WAS for improving AD. In this endeavour, the mathematical optimization study and the energy analysis of the effects of initial total solids concentrations [TS] of WAS and current density (CD) during EOP on the methane production and removal of chemical oxygen demand (COD) and volatile solids (VS) were investigated. Because limited reports are available on EOP of WAS for improving biogas production, it is not well understood; however, it has started to attract interest of scientists and engineers.

Results: In the present work, the energy recovery as biogas and WAS conversion were comprehensively affected by CD and [TS], in an integrated EOP and AD system. When working with WAS at 3% of [TS] pre-treated at current density of 24.1 mA/cm2, the highest COD and VS removal were achieved, making it possible to obtain the maximum methane (CH4) production of 305 N-L/kg VS and a positive energy balance of 1.67 kWh/kg VS. Therefore, the current densities used in BDD electrode are adequate to produce the strong oxidant (hydroxyl radical, ·OH) on the electrode surface, allow the oxidation of organic compounds that favours the solubilization of particulate matter and VS from WAS.

Conclusions: The improvement of VS removal and COD solubilization were due to the effects of pre-treatments, which help to break down the microbial cells for faster subsequent degradation; this allows a decomposition reaction that leads to biodegrade more compounds during AD. The balance was positive, suggesting that even without any optimization the energy used as electricity could be recovered from the increased methane production. It is worth noting that this kind of analysis have not been sufficiently studied so far. It is therefore important to understand how operational parameters can influence the pre-treatment and AD performances. The current study highlights that the mathematical optimization and energy analysis can make the whole process more convenient and feasible.

Keywords: Anaerobic digestion; Electrooxidation; Energy analysis; Pre-treatment; Waste activated sludge.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

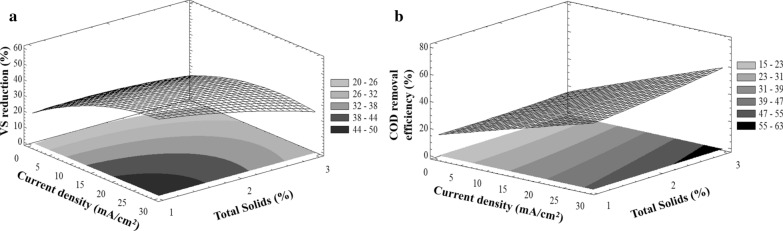

Fig. 1
Fig. 1
a VS reduction and b COD removal, in response to different CD and TS

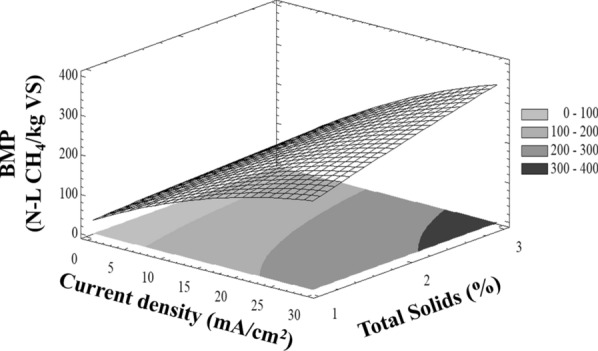

Fig. 2
Fig. 2
Effect of CD applied and TS on BMP under mesophilic anaerobic digestion
See this image and copyright information in PMC

References

    1. Noyola A, Padilla-Rivera A, Morgan-Sagastume JM, Güereca LP, Hernández-Padilla F. Typology of municipal wastewater treatment technologies in Latin America. Clean: Soil, Air, Water. 2012;40:926–932. doi: 10.1002/clen.201100707. - DOI
    1. Colón J, Alarcón M, Healy MG, Namli A, Sanin FD, Tayà C, et al. Producing sludge for agricultural applications. In: Innovative wastewater treatment and resource recovery technologies impacts on energy, economy and environments. 2017.
    1. Liu Y. Chemically reduced excess sludge production in the activated sludge process. Chemosphere. 2003;50:1–7. doi: 10.1016/S0045-6535(02)00551-9. - DOI - PubMed
    1. Ozcan S, Tor A, Aydin ME. Investigation on the levels of heavy metals, polycyclic aromatic hydrocarbons, and polychlorinated biphenyls in sewage sludge samples and ecotoxicological testing. Clean: Soil, Air, Water. 2013;41:411. doi: 10.1002/clen.201100187. - DOI
    1. Nguyen TKL, Ngo HH, Guo W, Chang SW, Nguyen DD, Nghiem LD, et al. Insight into greenhouse gases emissions from the two popular treatment technologies in municipal wastewater treatment processes. Sci Total Environ. 2019;671:1302–1313. doi: 10.1016/j.scitotenv.2019.03.386. - DOI
