Review
. 2021 Mar 24;13(7):1006.
doi: 10.3390/polym13071006.

Cotton Wastes Functionalized Biomaterials from Micro to Nano: A Cleaner Approach for a Sustainable Environmental Application

Samsul Rizal  1 , Abdul Khalil H P S  2 , Adeleke A Oyekanmi  2 , Olaiya N Gideon  2 , Che K Abdullah  2 , Esam B Yahya  2 , Tata Alfatah  2 , Fatimah A Sabaruddin  2 , Azhar A Rahman  3
Affiliations
Review

Cotton Wastes Functionalized Biomaterials from Micro to Nano: A Cleaner Approach for a Sustainable Environmental Application

Samsul Rizal et al. Polymers (Basel). .

Abstract

The exponential increase in textile cotton wastes generation and the ineffective processing mechanism to mitigate its environmental impact by developing functional materials with unique properties for geotechnical applications, wastewater, packaging, and biomedical engineering have become emerging global concerns among researchers. A comprehensive study of a processed cotton fibres isolation technique and their applications are highlighted in this review. Surface modification of cotton wastes fibre increases the adsorption of dyes and heavy metals removal from wastewater. Cotton wastes fibres have demonstrated high adsorption capacity for the removal of recalcitrant pollutants in wastewater. Cotton wastes fibres have found remarkable application in slope amendments, reinforcement of expansive soils and building materials, and a proven source for isolation of cellulose nanocrystals (CNCs). Several research work on the use of cotton waste for functional application rather than disposal has been done. However, no review study has discussed the potentials of cotton wastes from source (Micro-Nano) to application. This review critically analyses novel isolation techniques of CNC from cotton wastes with an in-depth study of a parameter variation effect on their yield. Different pretreatment techniques and efficiency were discussed. From the analysis, chemical pretreatment is considered the most efficient extraction of CNCs from cotton wastes. The pretreatment strategies can suffer variation in process conditions, resulting in distortion in the extracted cellulose's crystallinity. Acid hydrolysis using sulfuric acid is the most used extraction process for cotton wastes-based CNC. A combined pretreatment process, such as sonication and hydrolysis, increases the crystallinity of cotton-based CNCs. The improvement of the reinforced matrix interface of textile fibres is required for improved packaging and biomedical applications for the sustainability of cotton-based CNCs.

Keywords: cellulose nanocrystal; cotton wastes; environmental application; extraction methods; nanomaterials; textile.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Polymer functionalization and application [35].
Figure 2
Figure 2
Adsorption and photocatalysis of dye removal using a waste cotton cloth fibre composite.
Figure 3
Figure 3
Sustainable composite properties for effective application [69].
Figure 4
Figure 4
Schematic of bio-derived materials for packaging applications [79]. (PEF: polyethylene furanoate, PLA: polylactic acid, PBS: polybutylene succinate, PHA: polyhydrodyalkanoate).
Figure 5
Figure 5
Biomedical application of cellulose-based materials [88].
Figure 6
Figure 6
Production of antimicrobial film from antimicrobial raw material.
Figure 7
Figure 7
Cotton-based biosensor for wound dressing [103].

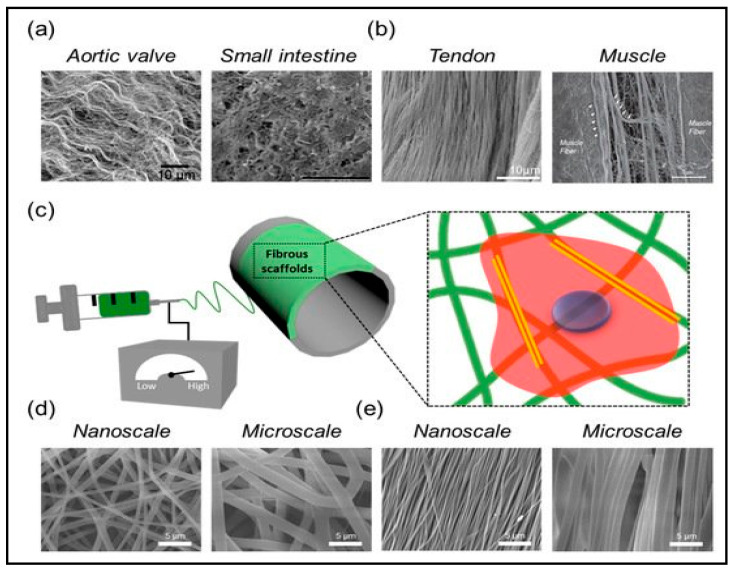

Figure 8
Figure 8
Pore structures of the tissue-engineered scaffold from fibre (a) aortic valve & small intestine (b) tendon & muscle (c) fibrous scaffold (d) nanoscale & microscale (e) nanoscale & microscale [107].
Figure 9
Figure 9
Schematic of nanocrystalline cellulose extraction from cellulose chain using acid hydrolysis for the removal of the amorphous region [115].
Figure 10
Figure 10
Schematic of nanocrystalline cellulose extraction from the cellulose chain using acid hydrolysis for the removal of the amorphous region [4].
Figure 11
Figure 11
Viscose yarn waste production and one-step extraction of NC from VW [149].
Figure 12
Figure 12
SEM Micrograph of (a,b) untreated, (c,d) alkali-treated, and (e,f) bleached waste cotton fibres [143].
Figure 13
Figure 13
A summary of extraction methods of CNC derived from cotton wastes.
Figure 14
Figure 14
Issue challenges of extraction methods for the production of CNC.
See this image and copyright information in PMC

References

    1. Sandin G., Peters G.M. Environmental impact of textile reuse and recycling–A review. J. Clean. Prod. 2018;184:353–365. doi: 10.1016/j.jclepro.2018.02.266. - DOI
    1. Xiao B., Zhang Y., Wang Y., Jiang G., Liang M., Chen X., Long G. A fractal model for kozeny–carman constant and dimensionless permeability of fibrous porous media with roughened surfaces. Fractals. 2019;27:1950116. doi: 10.1142/S0218348X19501160. - DOI
    1. Ütebay B., Çelik P., Çay A. Effects of cotton textile waste properties on recycled fibre quality. J. Clean. Prod. 2019;222:29–35. doi: 10.1016/j.jclepro.2019.03.033. - DOI
    1. Wang Z., Yao Z., Zhou J., Zhang Y. Reuse of waste cotton cloth for the extraction of cellulose nanocrystals. Carbohydr. Polym. 2017;157:945–952. doi: 10.1016/j.carbpol.2016.10.044. - DOI - PubMed
    1. Xiao B., Huang Q., Chen H., Chen X., Long G. A fractal model for capillary flow through a single tortuous capillary with roughened surfaces in fibrous porous media. Fractals. 2021;29:2150017. doi: 10.1142/S0218348X21500171. - DOI
