Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2021 Mar 25;14(7):1596.
doi: 10.3390/ma14071596.

Effect of Acetylated SEBS/PP for Potential HVDC Cable Insulation

Peng Zhang  1   2 , Yongqi Zhang  1   2 , Xuan Wang  1   2 , Jiaming Yang  1   2 , Wenbin Han  1   2
Affiliations

Effect of Acetylated SEBS/PP for Potential HVDC Cable Insulation

Peng Zhang et al. Materials (Basel). .

Abstract

Blending thermoplastic elastomers into polypropylene (PP) can make it have great potential for high-voltage direct current (HVDC) cable insulation by improving its toughness. However, when a large amount of thermoplastic elastomer is blended, the electrical strength of PP will be decreased consequently, which cannot meet the electrical requirements of HVDC cables. To solve this problem, in this paper, the inherent structure of thermoplastic elastomer SEBS was used to construct acetophenone structural units on its benzene ring through Friedel-Crafts acylation, making it a voltage stabilizer that can enhance the electrical strength of the polymer. The DC electrical insulation properties and mechanical properties of acetylated SEBS (Ac-SEBS)/PP were investigated in this paper. The results showed that by doping 30% Ac-SEBS into PP, the acetophenone structural unit on Ac-SEBS remarkably increased the DC breakdown field strength of SEBS/PP by absorbing high-energy electrons. When the degree of acetylation reached 4.6%, the DC breakdown field strength of Ac-SEBS/ PP increased by 22.4% and was a little higher than that of PP. Ac-SEBS, with high electron affinity, is also able to reduce carrier mobility through electron capture, resulting in lower conductivity currents in SEBS/PP and suppressing space charge accumulation to a certain extent, which enhances the insulation properties. Besides, the highly flexible Ac-SEBS can maintain the toughening effect of SEBS, resulting in a remarkable increase in the tensile strength and elongation at the break of PP. Therefore, Ac-SEBS/PP blends possess excellent insulation properties and mechanical properties simultaneously, which are promising as insulation materials for HVDC cables.

Keywords: HVDC cable; polypropylene; thermoplastic elastomer; voltage stabilizer.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The preparation process of Ac-SEBS.
Figure 2
Figure 2
IR spectra of SEBS and Ac-SEBS.
Figure 3
Figure 3
1H NMR spectrum of SEBS and Ac-SEBS.
Figure 4
Figure 4

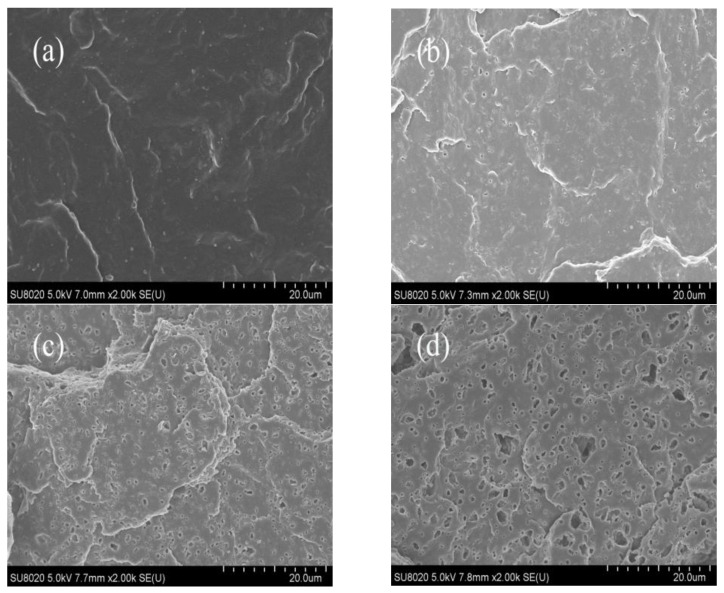

SEM images of Ac-SEBS/PP blends with different acetylation degrees of SEBS: (a): PP; (b): 0%; (c): 4.6%; (d): 12%.
Figure 5
Figure 5
Thermogravimetric curves curve of PP and its blends.
Figure 6
Figure 6
Stress–strain curve of PP and its blends.
Figure 7
Figure 7
DC breakdown field strength of PP and its blends.
Figure 8
Figure 8
Space charge distribution (a) PP, (c) SEBS/PP, (e) 4.6% Ac-SEBS/PP, (g) 12% Ac-SEBS/PP and short circuit conditions (b) PP, (d) SEBS/PP, (f) 4.6% Ac-SEBS/PP, (h) 12% Ac-SEBS/PP.
Figure 8
Figure 8
Space charge distribution (a) PP, (c) SEBS/PP, (e) 4.6% Ac-SEBS/PP, (g) 12% Ac-SEBS/PP and short circuit conditions (b) PP, (d) SEBS/PP, (f) 4.6% Ac-SEBS/PP, (h) 12% Ac-SEBS/PP.
Figure 9
Figure 9
The conductive current of PP and its blends.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Ghorbani H., Jeroense M., Olsson C.O., Saltzer M. HVDC cable systems—Highlighting extruded technology. IEEE Trans. Power Del. 2014;29:414–421. doi: 10.1109/TPWRD.2013.2278717. - DOI
    1. Logakis E., Herrmann L., Christen T. Electric characterization of LDPE films with TSC and dielectric spectroscopy. IEEE Trans. Dielectr. Electr. Insul. 2016;23:142–148. doi: 10.1109/TDEI.2015.004874. - DOI
    1. Liu R. Long-distance DC electrical power transmission. IEEE Electr. Insul. Mag. 2013;29:37–46. doi: 10.1109/MEI.2013.6585855. - DOI
    1. Barber K., Alexander G. Insulation of electrical cables over the past 50 years. IEEE Electr. Insul. Mag. 2013;29:27–32. doi: 10.1109/MEI.2013.6507411. - DOI
    1. Ou M., Xue Y., Zhang X. Iterative DC Optimal power flow considering transmission network loss. Electr. Power Compon. Syst. 2016;44:955–965. doi: 10.1080/15325008.2016.1147104. - DOI
