The effect of refractive index of fillers and polymer matrix on translucency and color matching of dental resin composite

Abstract

Objective: When restorative resin composites absorb light from the surrounding tooth structures, it creates a color-match, which is known as 'a chameleon effect'. In this study, series of co-monomer mixtures were prepared with an increasing refraction index (RI) and mixed with glass fillers. The aim of this study was to optimize the mismatch of RI of resin/fillers to create the chameleon effect.

Materials and methods: BisGMA/TEGDMA resins were prepared with seven different mix fractions from 20 to 80%. Two different series (A&B) of submicron (Ø 0.7 μm) silanized fillers (70 wt%) (A: Schott RI = 1.53, B: Esschem RI = 1.54) were mixed with resins (30 wt%). Disc-shaped specimens (1 mm thickness, Ø10 mm) for each composite combination (n = 3) were prepared and light cured for 20 s. Commercial resin composite (OmniChroma, Tokuyama Dental) was used as control. The translucency parameter (TP) was measured using a spectrophotometer. The color matching abilities of the experimental composites were visually analyzed. Data were statistically analyzed using ANOVA.

Results: The composition of resin and type of fillers had a statistically significant effect on TP values (p < .05). The highest TP values were achieved around 50%-50% fractions of Bis-GMA and TEGDMA for series A and around 60%-40% fraction of Bis-GMA and TEGDMA for series B. Data showed that a high or low fraction of BisGMA resulted in a low translucent composite. Experimental resin composite (80% Bis-GMA) from series A was behaving similarly to Omnichroma in reference to TP values and color matching.

Conclusions: Including fillers with RI of 1.53 into BisGMA/TEGDMA resin with RI of 1.524 resulted in composite resin providing a good color match with surrounding structure 'chameleon effect'.

Keywords: Refraction index; chameleon effect; color matching; translucency.

Figure 1.

(a) Visual image of 1 mm thick resin composite specimens placed over a black line. (b) Translucency parameter mean values (TP) of experimental resin composites. Vertical lines represent standard deviation. The same letters inside the bars represent non-statistically significant differences (p > .05) among the materials.

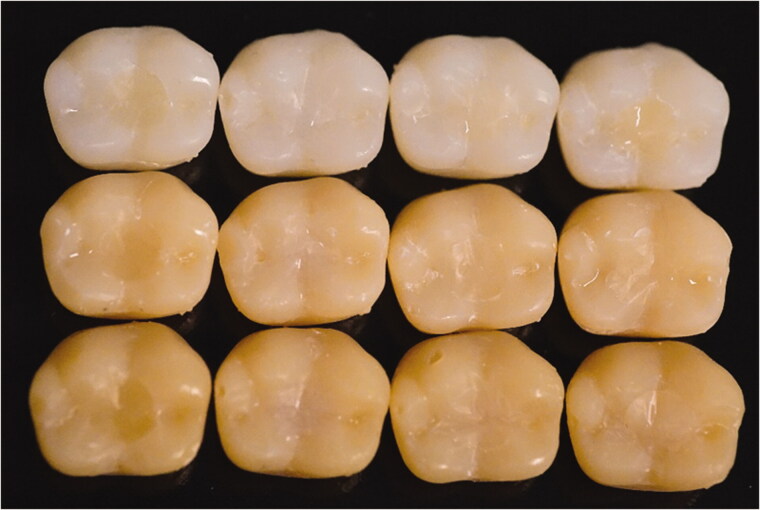

Figure 2.

Representative images of different colored plastic crowns with composite restorations for visual color matching analysis. From left to right: G1A, G7A, Omnichroma, Filtek Supreme (shade A3). Shades from up to down: A1, A3, A4.
