. 2021 Mar-Apr;73(2):231-235.
doi: 10.1016/j.ihj.2021.01.024. Epub 2021 Feb 2.

Correlation of internal jugular and subclavian vein diameter variation on bedside ultrasound with invasive right heart catheterization

Gaurang Nandkishor Vaidya  1 , Shahab Ghafghazi  2
Affiliations

Correlation of internal jugular and subclavian vein diameter variation on bedside ultrasound with invasive right heart catheterization

Gaurang Nandkishor Vaidya et al. Indian Heart J. 2021 Mar-Apr.

Abstract

Introduction: Accurate estimation of fluid status is paramount in patients with heart failure. We hypothesized that bedside ultrasound assessment of the internal jugular vein (IJV) and subclavian vein (SCV) could reliably estimate right atrial pressure (RAP).

Methods: Prospectively enrolled patients were positioned supine. IJV was imaged at the apex of the right sternocleidomastoid muscle and SCV was imaged at the lateral third of the right clavicle. Using M-mode on a portable ultrasound machine, the maximum (Dmax) and minimum (Dmin) anteroposterior diameters were noted during normal breathing. Respiratory variation in diameter (RVD) was calculated as [(Dmax - Dmin)/Dmax] and expressed as percent. Collapsibility was assessed with sniff maneuver. Patients then underwent right heart catheterization and their findings were correlated with above.

Results: Total of 72 patients were enrolled with mean age 61 years, mean BSA 1.9 m2, and left ventricular ejection fraction 45 ± 20%. Elevated RAP≥ 10 mmHg was associated with dilated IJV Dmax(1.0 vs. 0.7cm, p = 0.001), less RVD with resting respiration (14% vs. 40% for IJV, p = 0.001 and 24% vs. 45% for SCV, p = 0.001), and reduced likelihood of total collapsibility with sniff (16% vs. 66% patients for IJV, p = 0.001 and 25% vs. 57% patients for SCV, p = 0.01). For RAP ≥10 mmHg, lack of IJV complete collapsibility with sniff had a sensitivity of 84% while IJV Dmax > 1cm and RVD <50% had a specificity of 80%.

Conclusion: The IJV and SCV diameters and their respiratory variation are reliable in estimating RA pressure.

Keywords: Bedside ultrasound; Fluid overload; Heart failure; Imaging; Internal jugular vein; Subclavian vein.

PubMed Disclaimer

Conflict of interest statement

Declaration of competing interest The authors declare that they have no conflict of interest.

Figures

Fig. 1
Fig. 1
AM-mode ultrasound of the internal jugular vein, 1 B: M-mode ultrasound of the subclavian vein.

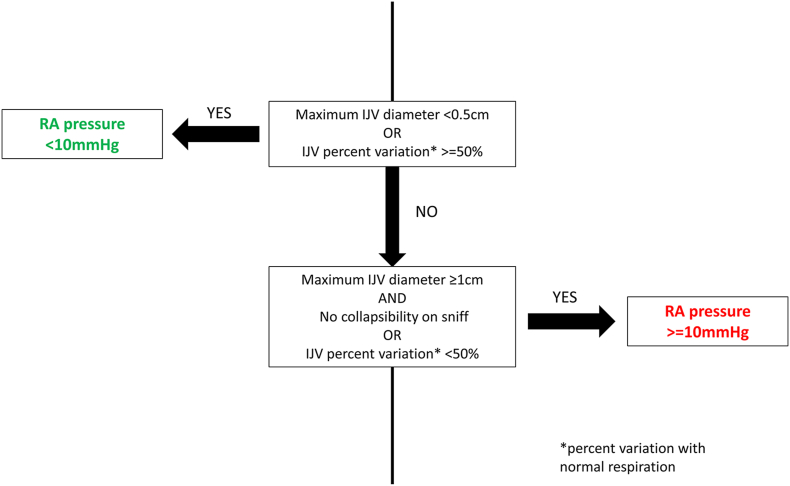

Fig. 2
Fig. 2
Algorithm for utilizing internal jugular vein diameter for estimation of right atrial pressure.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Kent A., Bahner D.P., Boulger C.T. Sonographic evaluation of intravascular volume status in the surgical intensive care unit: a prospective comparison of subclavian vein and inferior vena cava collapsibility index. J Surg Res. 2013;184:561–566. - PubMed
    1. Kent A., Patil P., Davila V. Sonographic evaluation of intravascular volume status: can internal jugular or femoral vein collapsibility be used in the absence of IVC visualization? Ann Thorac Med. 2015;10:44–49. - PMC - PubMed
    1. Molokoane-Mokgoro K., Goldstein L.N., Wells M. Ultrasound evaluation of the respiratory changes of the inferior vena cava and axillary vein diameter at rest and during positive pressure ventilation in spontaneously breathing healthy volunteers. Emerg Med J : Eng Manag J. 2018;35:297–302. - PubMed
    1. Stawicki S.P., Braslow B.M., Panebianco N.L. Intensivist use of hand-carried ultrasonography to measure IVC collapsibility in estimating intravascular volume status: correlations with CVP. J Am Coll Surg. 2009;209:55–61. - PubMed
    1. Avcil M., Kapci M., Dagli B. Comparision of ultrasound-based methods of jugular vein and inferior vena cava for estimating central venous pressure. Int J Clin Exp Med. 2015;8:10586–10594. - PMC - PubMed
