Chest-Worn Inertial Sensors: A Survey of Applications and Methods

Abstract

Inertial Measurement Units (IMUs) are frequently implemented in wearable devices. Thanks to advances in signal processing and machine learning, applications of IMUs are not limited to those explicitly addressing body movements such as Activity Recognition (AR). On the other hand, wearing IMUs on the chest offers a few advantages over other body positions. AR and posture analysis, cardiopulmonary parameters estimation, voice and swallowing activity detection and other measurements can be approached through chest-worn inertial sensors. This survey tries to introduce the applications that come with the chest-worn IMUs and summarizes the existing methods, current challenges and future directions associated with them. In this regard, this paper references a total number of 57 relevant studies from the last 10 years and categorizes them into seven application areas. We discuss the inertial sensors used as well as their placement on the body and their associated validation methods based on the application categories. Our investigations show meaningful correlations among the studies within the same application categories. Then, we investigate the data processing architectures of the studies from the hardware point of view, indicating a lack of effort on handling the main processing through on-body units. Finally, we propose combining the discussed applications in a single platform, finding robust ways for artifact cancellation, and planning optimized sensing/processing architectures for them, to be taken more seriously in future research.

Keywords: accelerometry; activity recognition; context retrieval; heart rate; pedestrian dead reckoning; posture analysis; respiration rate; seismocardiography; swallow detection; voice activity detection.

Figure 1

Area of interest of this survey.

Figure 2

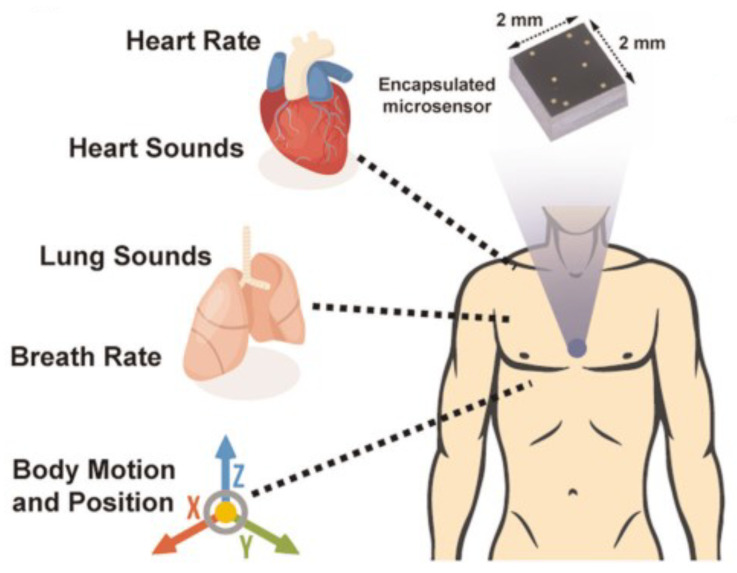

Use of ACM on the sternum to capture cardiopulmonary activity and sounds as well as body motion and position [36].

Figure 3

Distribution of the IMUs on chest per application area based on the referenced studies. The percentages are calculated to represent the ratio of the referenced studies in an application area that rely on a specific body site in proportion to the total referenced studies of that application area.

Figure 4

Examples of IMU attachments on the body taken from the referenced studies. (a): IMU attached to skin for SCG [54]. (b): Use of stretching strap to attach the IMU over clothes for localization [68]. (c): Elastic strap used to attach smartphone over clothes for ER [51]. (d): Use of a soft nylon necklace over and underneath clothes for EE estimation [34]. (e): Attachment of IMU over the skin using adhesive tape for voice analysis [42].

Figure 5

Examples of IMU coordinates alignment on body taken from the referenced studies. (a,b): IMU acceleration coordinates with respect to body axes for SCG, respectively, from [19,29]. (c): Calibration of the IMU pose with initial heading of the subject within the world map frame for PDR [68].
