Association of toe-extension movement pattern magnitude and variability during three functional tasks with diabetic foot complications

Abstract

Background: A toe-extension movement pattern may contribute to metatarsophalangeal joint deformity and ulceration in people with diabetes. We sought to quantify the relationship between toe extension magnitude and variability during three functional tasks (ankle range of motion, sit to stand, walking) with metatarsophalangeal joint deformity, and identify potential mechanisms associated with a toe-extension movement pattern.

Methods: Individuals with diabetes and peripheral neuropathy were included (n = 60). Metatarsophalangeal joint deformity was assessed using computed tomography (CT). Toe-extension movement was quantified using 3-dimensional motion capture. Linear regression was used to investigate the role of toe-extension movement pattern on metatarsophalangeal joint deformity. Regression analysis was used to identify mechanisms (neuropathy severity, foot intrinsic muscle deterioration ratio, ankle dorsiflexion range of motion) contributing to toe-extension movement pattern.

Findings: Toe extension with each functional task as well as the mean and coefficient of variation across all tasks were significantly related to metatarsophalangeal joint deformity (range of correlation coefficients = (-0.386, 0.692), p ≤ 0.001). Ankle dorsiflexion range of motion was associated with mean toe extension across all tasks (r_sp = -0.282, p = 0.029). Neuropathy severity and foot intrinsic muscle deterioration ratio were associated with toe extension variability (r_sp = -0.373, p = 0.003 and r_sp = -0.266, p = 0.043; respectively).

Interpretation: Greater magnitude and lower variability of a toe-extension movement pattern was found to be associated with metatarsophalangeal joint deformity. These findings may support clinical assessment and treatment of movement across more than one task.

Keywords: Ankle; Biomechanics; Foot; Gait; Neuropathy; Rehabilitation.

Figure 1.

Sit to stand task. Example of toe extension movement pattern as participant moves from sitting to standing (left). Marker set (right).

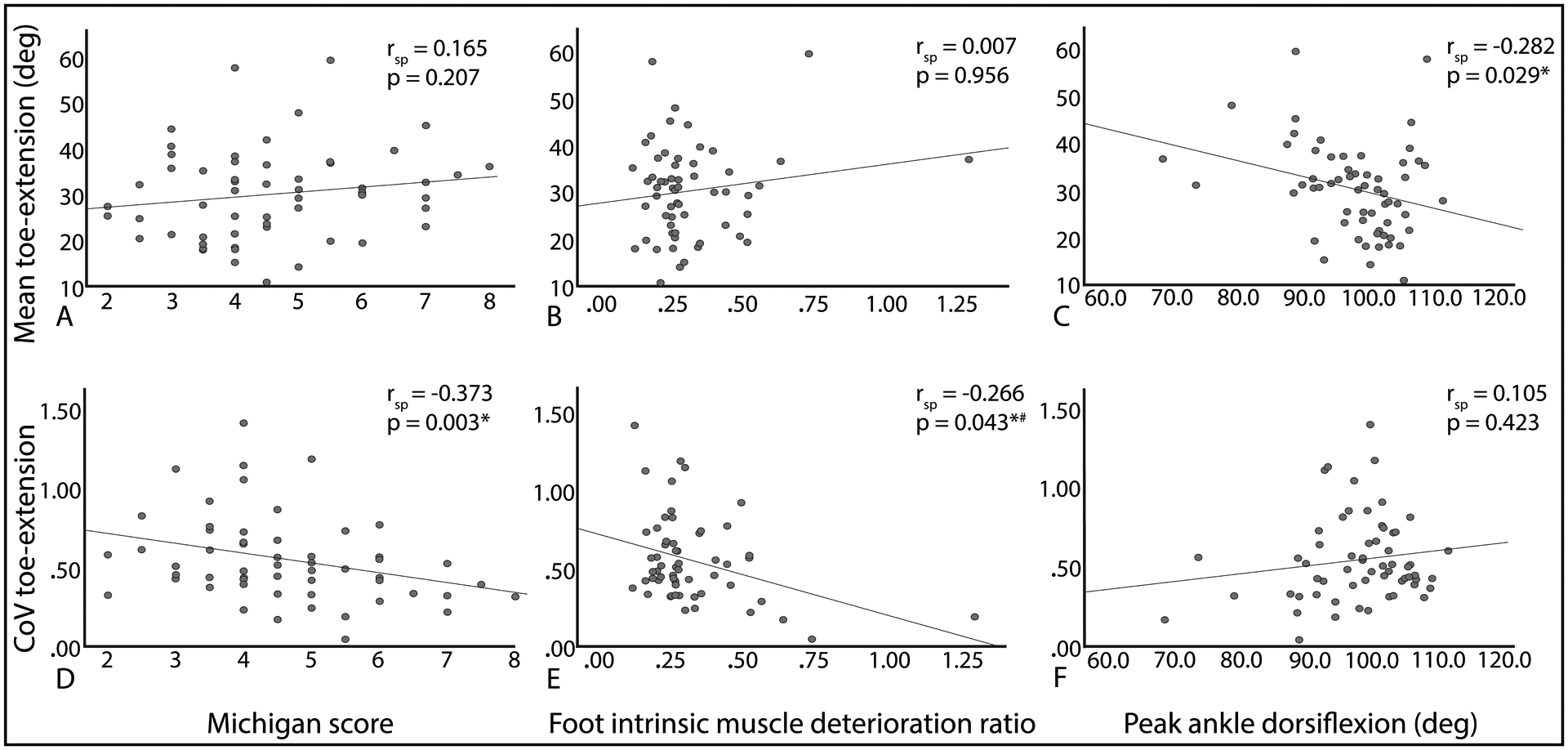

Figure 2.

Scatterplots of relationship between toe-extension movement pattern mean (A-C) and coefficient of variation (CoV; D-F) mechanism indicators [Michigan score (A, D); foot intrinsic muscle deteroration ratio (B, E); and peak ankle dorsiflexion on CT (C, F)] on univariate analysis. deg: degree. #Outlier with muscle deterioration ratio of 1.30 is a physiologically reasonable value. With removal of this outlier, r_sp = −0.227, p=0.089.

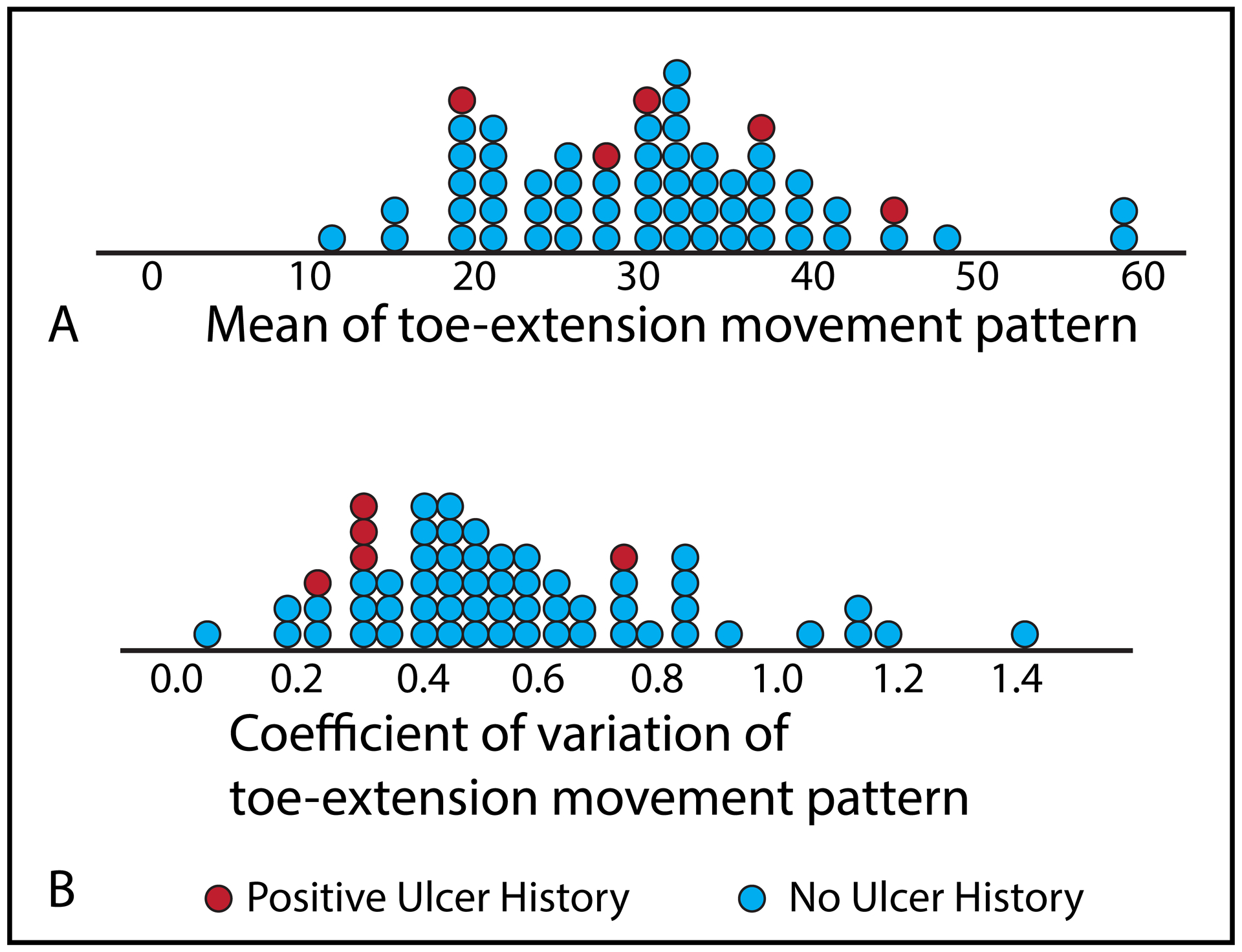

Figure 3.

Dot plots of toe-extension movement pattern magnitude in degrees (A) and variability (B).
