. 2021 Oct;37(10):3027-3037.
doi: 10.1007/s10554-021-02284-2. Epub 2021 May 17.

Feature-tracking cardiac magnetic resonance left ventricular global longitudinal strain improves 6 months after kidney transplantation associated with reverse remodeling, not myocardial tissue characteristics

Maurício Fregonesi Barbosa  1   2 , Mariana Moraes Contti  3 , Luis Gustavo Modelli de Andrade  3 , Alejandra Del Carmen Villanueva Mauricio  4 , Sergio Marrone Ribeiro  5 , Gilberto Szarf  6   7
Affiliations

Feature-tracking cardiac magnetic resonance left ventricular global longitudinal strain improves 6 months after kidney transplantation associated with reverse remodeling, not myocardial tissue characteristics

Maurício Fregonesi Barbosa et al. Int J Cardiovasc Imaging. 2021 Oct.

Abstract

To determine whether left ventricular (LV) global longitudinal strain (GLS) measured by feature-tracking (FT) cardiac magnetic resonance (CMR) improves after kidney transplantation (KT) and to analyze associations between LV GLS, reverse remodeling and myocardial tissue characteristics. This is a prospective single-center cohort study of kidney transplant recipients who underwent two CMR examinations in a 3T scanner, including cines, tagging, T1 and T2 mapping. The baseline exam was done up to 10 days after transplantation and the follow-up after 6 months. Age and sex-matched healthy controls were also studied for comparison. A total of 44 patients [mean age 50 ± 11 years-old, 27 (61.4%) male] completed the two CMR exams. LV GLS improved from - 13.4% ± 3.0 at baseline to - 15.2% ± 2.7 at follow-up (p < 0.001), but remained impaired when compared with controls (- 17.7% ± 1.5, p = 0.007). We observed significant correlation between improvement in LV GLS with reductions of left ventricular mass index (r = 0.356, p = 0.018). Improvement in LV GLS paralleled improvements in LV stroke volume index (r = - 0.429, p = 0.004), ejection fraction (r = - 0.408, p = 0.006), global circumferential strain (r = 0.420, p = 0.004) and global radial strain (r = - 0.530, p = 0.002). There were no significant correlations between LV GLS, native T1 or T2 measurements (p > 0.05). In this study, we demonstrated that LV GLS measured by FT-CMR improves 6 months after KT in association with reverse remodeling, but not native T1 or T2 measurements.

Keywords: Cardiovascular magnetic resonance imaging; Native T1; Renal transplant; Strain; Subclinical cardiac dysfunction.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1

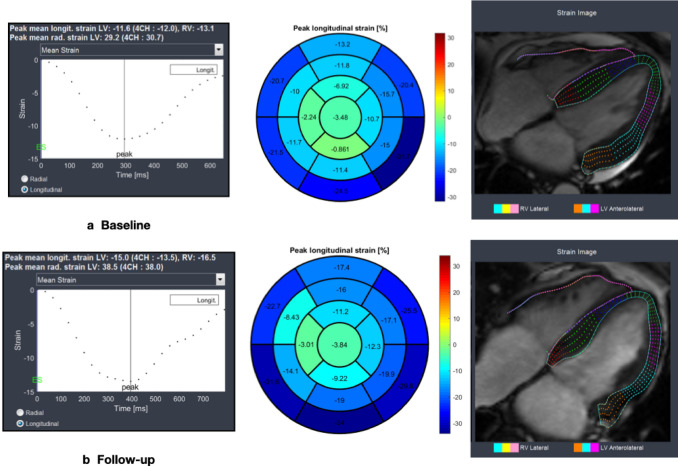

Example of global longitudinal strain by FT-CMR in a 52-year-old man, living-donor kidney transplant patient. Top: Baseline (LV GLS = − 11.6% and RV GLS = − 13.1%), Bottom: Follow-up (LV GLS = − 15.0% and RV GLS = − 16.5%)
Fig. 2
Fig. 2

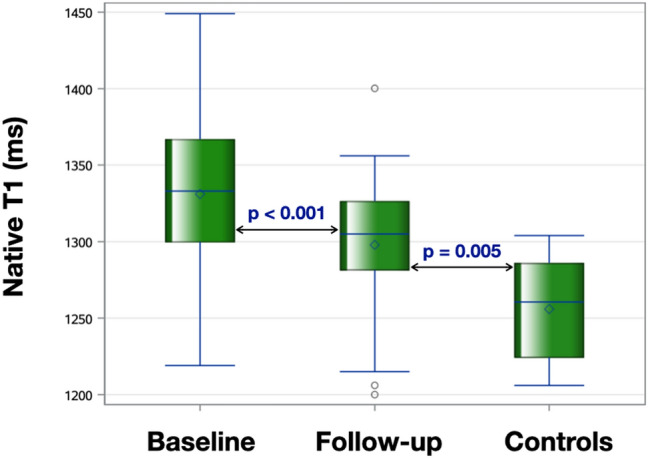

Boxplots comparing Native T1 at baseline and 6 months after transplantation with controls
Fig. 3
Fig. 3

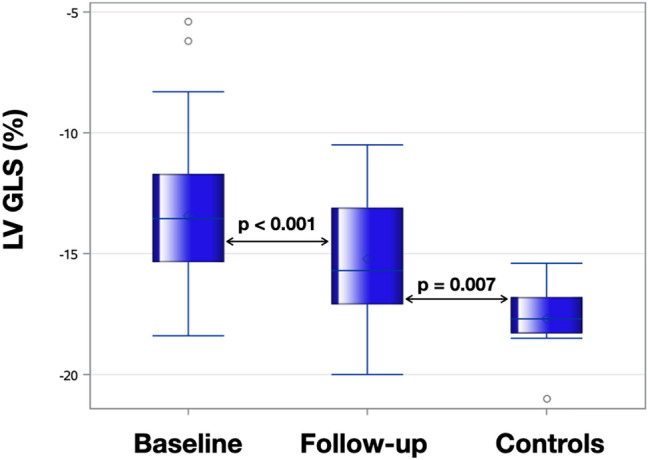

Boxplots comparing left ventricular global longitudinal strain (LV GLS) at baseline and 6 months after transplantation with controls
Fig. 4
Fig. 4

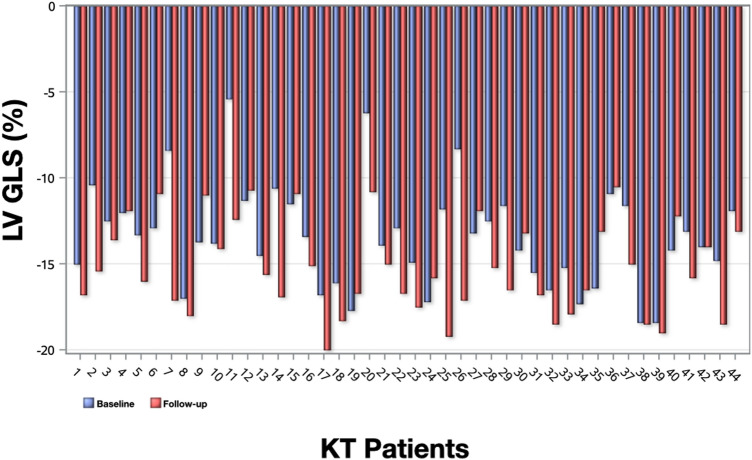

Analysis of individual cases of left ventricular global longitudinal strain (LV GLS) in kidney transplant (KT) patients at baseline and follow-up (n = 44)
Fig. 5
Fig. 5

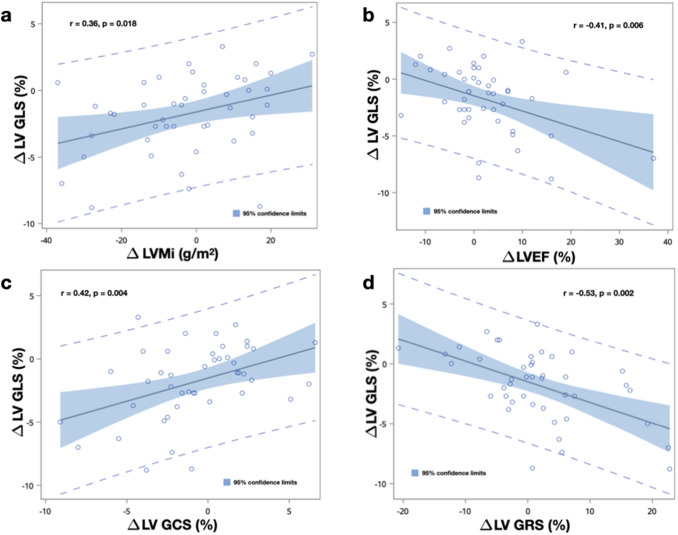

Relationship between changes in left ventricular global longitudinal strain (∆ LV GLS) with changes in a mass index (∆ LVMi), b ejection fraction (∆ LVEF), c global circumferential strain (∆ LV GCS) and d global radial strain (∆ LV GRS)
Fig. 6
Fig. 6

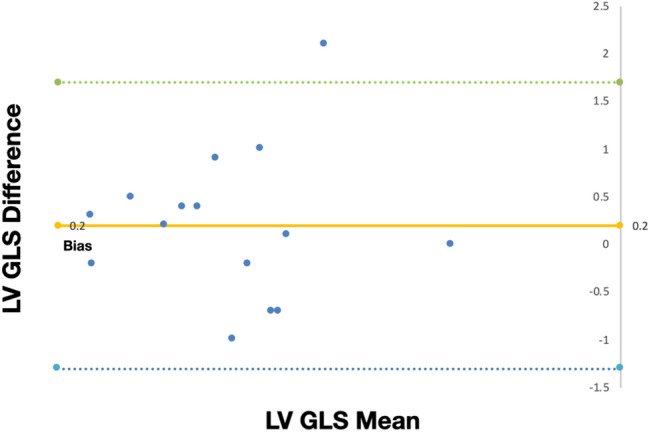

Bland–Altman plot of LV GLS measurements
Fig. 7
Fig. 7

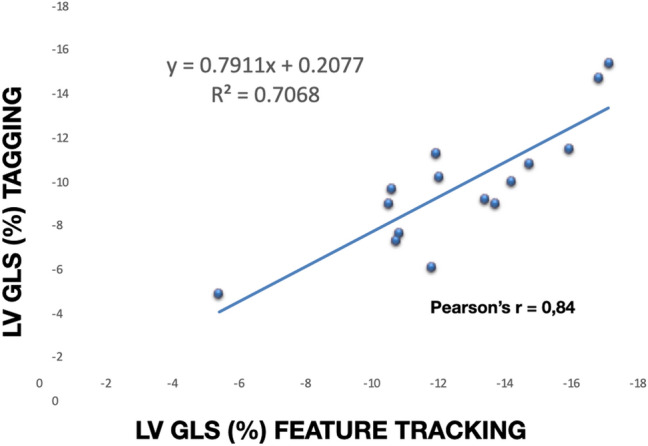

Correlation between LV GLS measured by FT-CMR and tagging
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Saran R, Robinson B, Abbott KC, Bragg-Gresham J, Chen X, Gipson D, et al. US renal data system 2019 annual data report: epidemiology of kidney disease in the United States. Am J Kidney Dis. 2020;75(1):A6–A7. doi: 10.1053/j.ajkd.2019.09.003. - DOI - PubMed
    1. Foley RN, Parfrey PS, Harnett JD, Kent GM, Murray DC, Barre PE. The prognostic importance of left ventricular geometry in uremic cardiomyopathy. J Am Soc Nephrol. 1995;5(12):2024–2031. doi: 10.1681/ASN.V5122024. - DOI - PubMed
    1. Parfrey PS, Foley RN, Harnett JD, Kent GM, Murray DC, Barre PE. Outcome and risk factors for left ventricular disorders in chronic uraemia. Nephrol Dial Transplant. 1996;11(7):1277–1285. doi: 10.1093/ndt/11.7.1277. - DOI - PubMed
    1. Mall G, Huther W, Schneider J, Lundin P, Ritz E. Diffuse intermyocardiocytic fibrosis in uraemic patients. Nephrol Dial Transplant. 1990;5(1):39–44. doi: 10.1093/ndt/5.1.39. - DOI - PubMed
    1. Aoki J, Ikari Y, Nakajima H, Mori M, Sugimoto T, Hatori M, et al. Clinical and pathologic characteristics of dilated cardiomyopathy in hemodialysis patients. Kidney Int. 2005;67(1):333–340. doi: 10.1111/j.1523-1755.2005.00086.x. - DOI - PubMed
