. 2021 May 25;11(1):10924.
doi: 10.1038/s41598-021-90408-y.

Statistical optimization of experimental parameters for extracellular synthesis of zinc oxide nanoparticles by a novel haloalaliphilic Alkalibacillus sp.W7

Hend M H Al-Kordy  1 , Soraya A Sabry  2 , Mona E M Mabrouk  3
Affiliations

Statistical optimization of experimental parameters for extracellular synthesis of zinc oxide nanoparticles by a novel haloalaliphilic Alkalibacillus sp.W7

Hend M H Al-Kordy et al. Sci Rep. .

Abstract

Green synthesis of zinc oxide nanoparticles (ZnO NPs) through simple, rapid, eco-friendly and an economical method with a new haloalkaliphilic bacterial strain (Alkalibacillus sp. W7) was investigated. Response surface methodology (RSM) based on Box-Behnken design (BP) was used to optimize the process parameters (ZnSO4.7H2O concentration, temperature, and pH) affecting the size of Alkalibacillus-ZnO NPs (Alk-ZnO NPs). The synthesized nanoparticles were characterized using UV-visible spectrum, X-ray diffraction (XRD), Scanning electron microscope-energy dispersive X-ray spectroscopy (SEM-EDX), Transmission electron microscopy (TEM), Fourier transform infrared spectroscopy (FTIR) and Zeta potential. The UV-Vis spectrum of ZnO NPs revealed a characteristic surface plasmon resonance (SPR) peak at 310 nm. XRD pattern confirmed the hexagonal wurtzite structure of highly pure with a crystallite size 19.5 nm. TEM proved the quasi-spherical shape nanoparticles of size ranging from 1 to 30 nm. SEM-EDX showed spherical shaped and displayed a maximum elemental distribution of zinc and oxygen. FTIR provided an evidence that the biofunctional groups of metabolites in Alkalibacillus sp.W7 supernatant acted as viable reducing, capping and stabilizing agents.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1
UV–vis absorption spectra of biosynthesised Alk-ZnO NPs, with maximum absorption at 334 nm. Inset shows visual observation of color change (I) Pure precursor (ZnSO4.7H2O), (II) reducing agent (culture supernatant), (III) white clusters of Alk-ZnO NPs formed after mixing reducing agent and precursor.
Figure 2
Figure 2

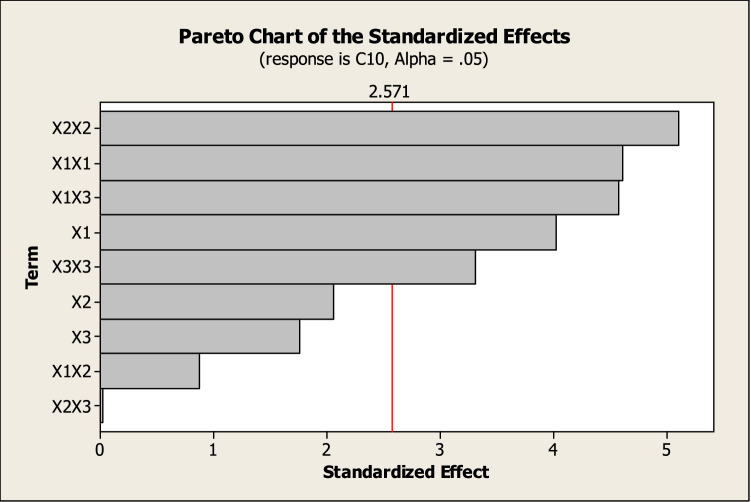

A Pareto chart illustrating the main effects of Box-Behnken result, with the order of significance of the variables affecting Alk-ZnO NPs size. Bars that exceed the vertical line indicate the significance of the terms (P < 0.05).
Figure 3
Figure 3
Three-dimensional response surface graphs and contour plots showing the effect of independent variables on the average size of Alk-ZnO NPs; (A) Effect of metal concentation and temperature, (B) Effect of metal concentation and pH and (C) Effect of temperature and pH.
Figure 4
Figure 4
Scanning electron micrograph of Alk-ZnO NPs synthesized under optimum conditions at 35,000 × magnification.
Figure 5
Figure 5
Energy dispersive x-ray spectroscopic analysis of Alk-ZnO NPs. Other elemental signal as carbon was also recorded possibly from enzymes or proteins present in the culture supernatant. Inset image of scanned area and elemental composition.
Figure 6
Figure 6
Transmission electron microscopic image of Alk-ZnO NPs (A) low magnification (X80k), (B) high magnification (X120k), and (C) particle size distribution histogram.
Figure 7
Figure 7

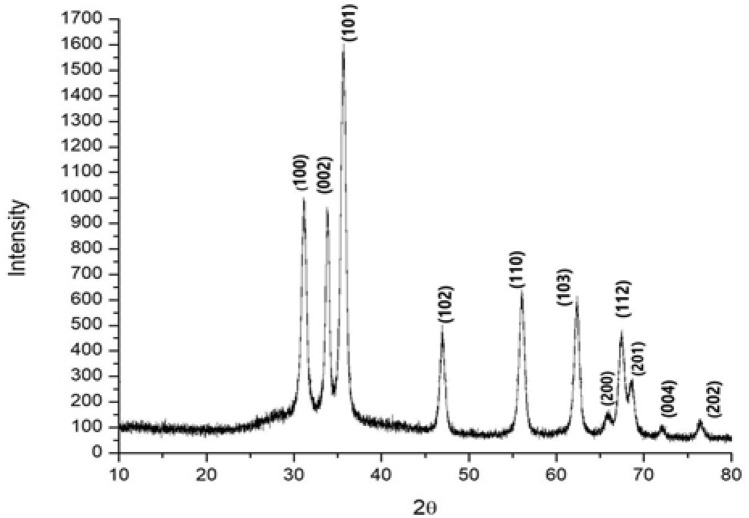

X-ray diffraction pattern of ZnO nanoparticles synthesized by Al. sp. W7 supernatant. All peaks indicate purity and crystalline nature. No traces of other impurity phases were detected.
Figure 8
Figure 8
Zeta potential of Alk-ZnO NPs dispersed in water.
Figure 9
Figure 9
Fourier transforms infrared spectroscopy (FTIR) of Alk-ZnO NPs.
See this image and copyright information in PMC

References

    1. Yusof HM, Mohamad R, Zaidan UH, Abdul Rahman N. Microbial synthesis of zinc oxide nanoparticles and their potential application as an antimicrobial agent and a feed supplement in animal industry: a review. J. Anim. Sci. Biotechnol. 2019;10:10–57. doi: 10.1186/s40104-019-0368-z. - DOI - PMC - PubMed
    1. Basnet P, Chanu TI, Samanta D, Chatterjee S. A review on bio-synthesized zinc oxide nanoparticles using plant extracts as reductants and stabilizing agents. J. Photochem. Photobiol. B Biol. 2018;183:201–221. doi: 10.1016/j.jphotobiol.2018.04.036. - DOI - PubMed
    1. Mandeep D, Shukla P. Microbial nanotechnology for bioremediation of industrial wastewater. Front. Microbiol. 2020 doi: 10.3389/fmicb.2020.590631. - DOI - PMC - PubMed
    1. Sepahvand M, Buazar F, Sayahi MH. Novel marine-based gold nanocatalyst in solvent-free synthesis of polyhydroquinoline derivatives: Green and sustainable protocol. Appl. Organomet. Chem. 2020;34:1–11. doi: 10.1002/aoc.6000. - DOI
    1. Moavi J, Buazar F, Sayahi MH. Algal magnetic nickel oxide nanocatalyst in accelerated synthesis of pyridopyrimidine derivatives. Sci. Rep. 2021;11:6296. doi: 10.1038/s41598-021-85832-z. - DOI - PMC - PubMed
