Validation of a Method Scope Extension for the Analysis of POPs in Soil and Verification in Organic and Conventional Farms of the Canary Islands

Abstract

Persistent organic pollutants (POPs) are among the most relevant and dangerous contaminants in soil, from where they can be transferred to crops. Additionally, livestock animals may inadvertently consume relatively high amounts of soil attached to the roots of the vegetables while grazing, leading to indirect exposure to humans. Therefore, periodic monitoring of soils is crucial; thus, simple, robust, and powerful methods are needed. In this study, we have tested and validated an easy QuEChERS-based method for the extraction of 49 POPs (8 PBDEs, 12 OCPs, 11 PAHs, and 18 PCBs) in soils and their analysis by GC-MS/MS. The method was validated in terms of linearity, precision, and accuracy, and a matrix effect study was performed. The limits of detection (LOD) were established between 0.048 and 3.125 ng g^-1 and the limits of quantification (LOQ) were between 0.5 and 20 ng g^-1, except for naphthalene (50 ng g^-1). Then, to verify the applicability of the validated method, we applied it to a series of 81 soil samples from farms dedicated to mixed vegetable cultivation and vineyards in the Canary Islands, both from two modes of production (organic vs. conventional) where residues of OCPs, PCBs, and PAHs were found.

Keywords: PAHs; PBDEs; PCBs; QuEChERS; gas chromatography–mass spectrometry; organochlorine pesticides.

Figure 1

Scheme of the process followed for the method validation.

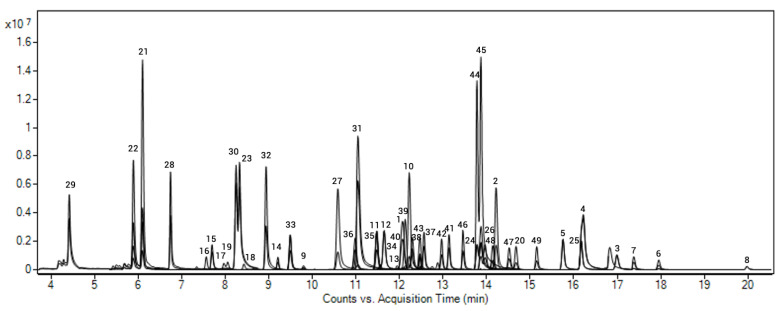

Figure 2

GC-MS/MS chromatogram of a blank soil sample spiked with the selected POPs at 50 ng g⁻¹.

Figure 3

Matrix effect. Bars represent the mean of the ME% of the analytes. Dotted lines represent the tolerance range in which it is considered that no significant matrix effect exists.

Figure 4

Comparative study of sums of organochlorine pesticides, polycyclic aromatic hydrocarbons, and polychlorinated biphenyls between farms of conventional production and those of organic production. The lines show the medians, the boxes cover the 25th to 75th percentiles, and the minimal and maximal values are shown by the ends of the bars.

Figure 5

Comparative study of sums of organochlorine pesticides, polycyclic aromatic hydrocarbons, and polychlorinated biphenyls between farms devoted to the production of mixed vegetables and vineyards. The lines show the medians, the boxes cover the 25th to 75th percentiles, and the minimal and maximal values are shown by the ends of the bars.
